iGrab™ Complete Professional FOD Retrieval Tool Kit

The iGrab™ Complete Professional FOD Retrieval Tool Kit provides numerous options for the retrieval of foreign objects in hard-to-access areas. Any operator or facility equipped with the Complete Professional FOD Retrieval Tool kit can immediately respond to a retrieval operation that is causing disruption in mechanical, system, or plant operation.

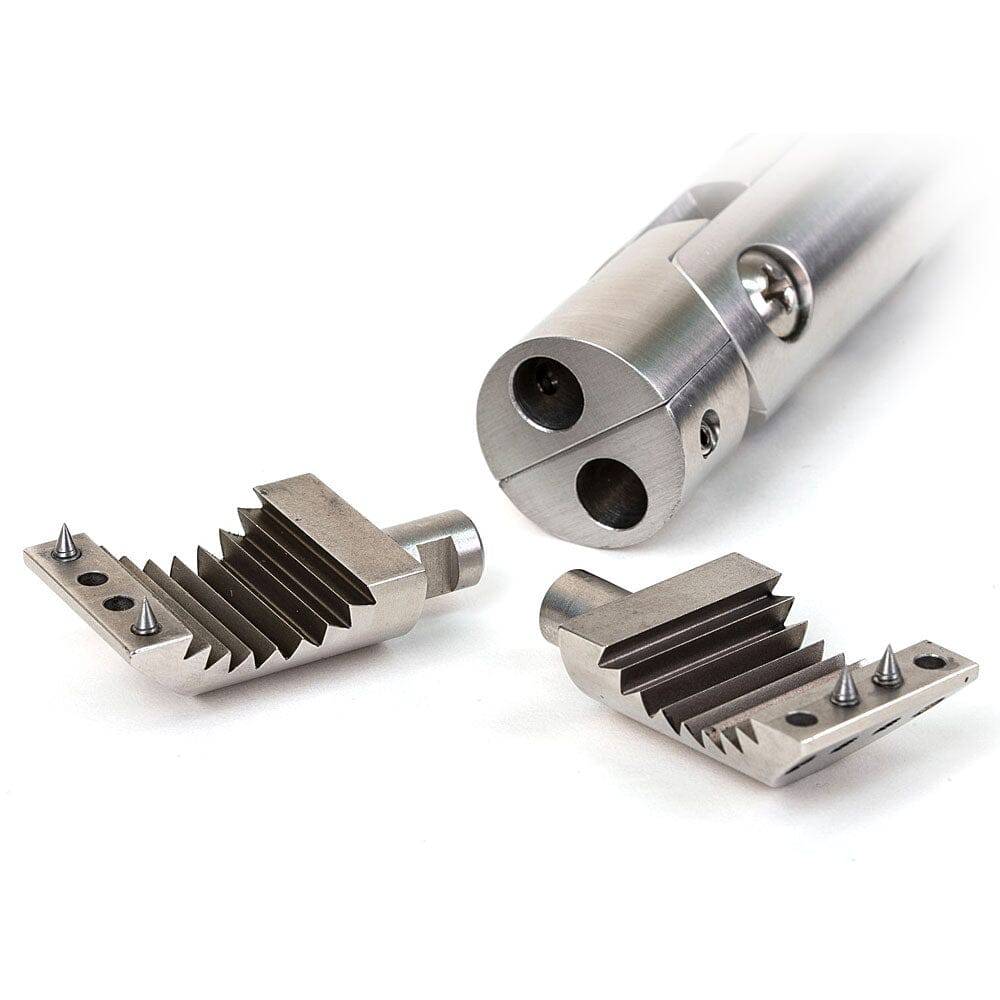

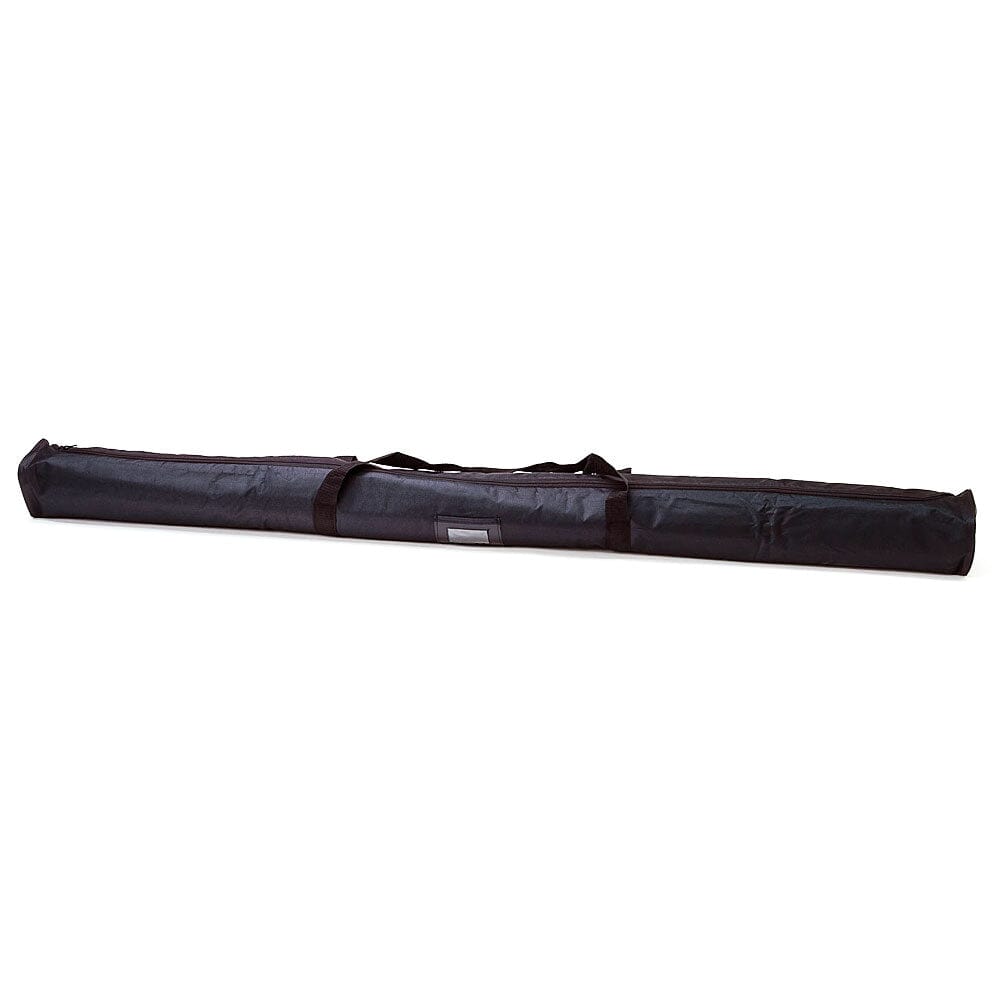

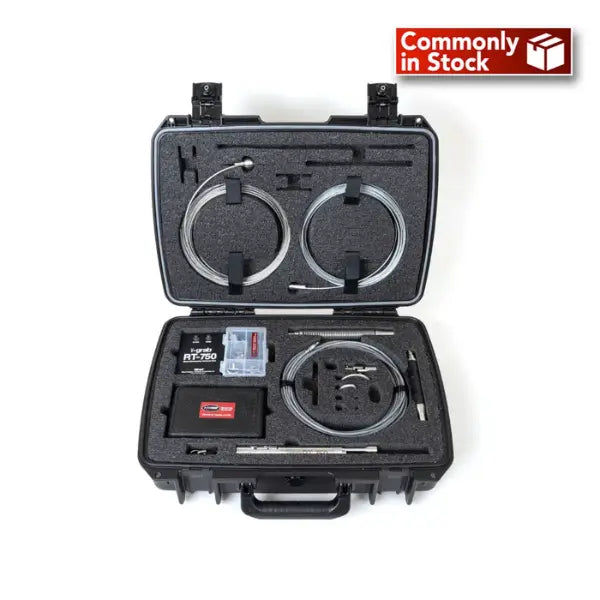

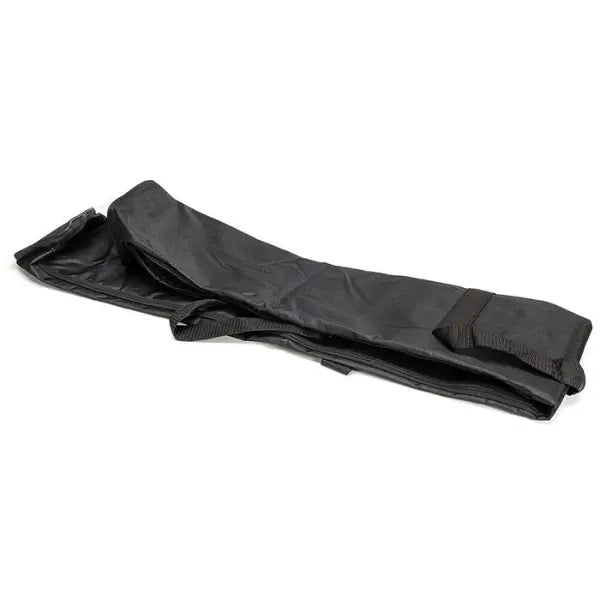

The RT-750 Electro Mechanical Tool portion of the kit is a heavy-duty motorized, mechanical gripper with a closing force of greater than 20 lbs at 30 degrees closure.  With a variety of detachable jaw sets like the Sample Cup, Viper, Plier Jaw and Fork & Tine, a FME operator can grasp almost any object in need of retrieval. The tool attaches to the end of interlocking, fiber-glass push pole sets for operator-friendly handling. Push poles come in sets of 10 units at the diameters of 3/16", 5/16", and 3/8". End adapters and knuckle joints can be used for further manipulation of the RT-750.  Non-motorized grabbing solutions are also included in the kit as well.  Two sizes of J hooks, magnets, and snares are supplied for dislodging, ensnaring, and capturing objects in need of retrieval. All retrieval tool components fit neatly into a durable locking hard case.  Push poles are stored in a canvas quiver with a shoulder strap.

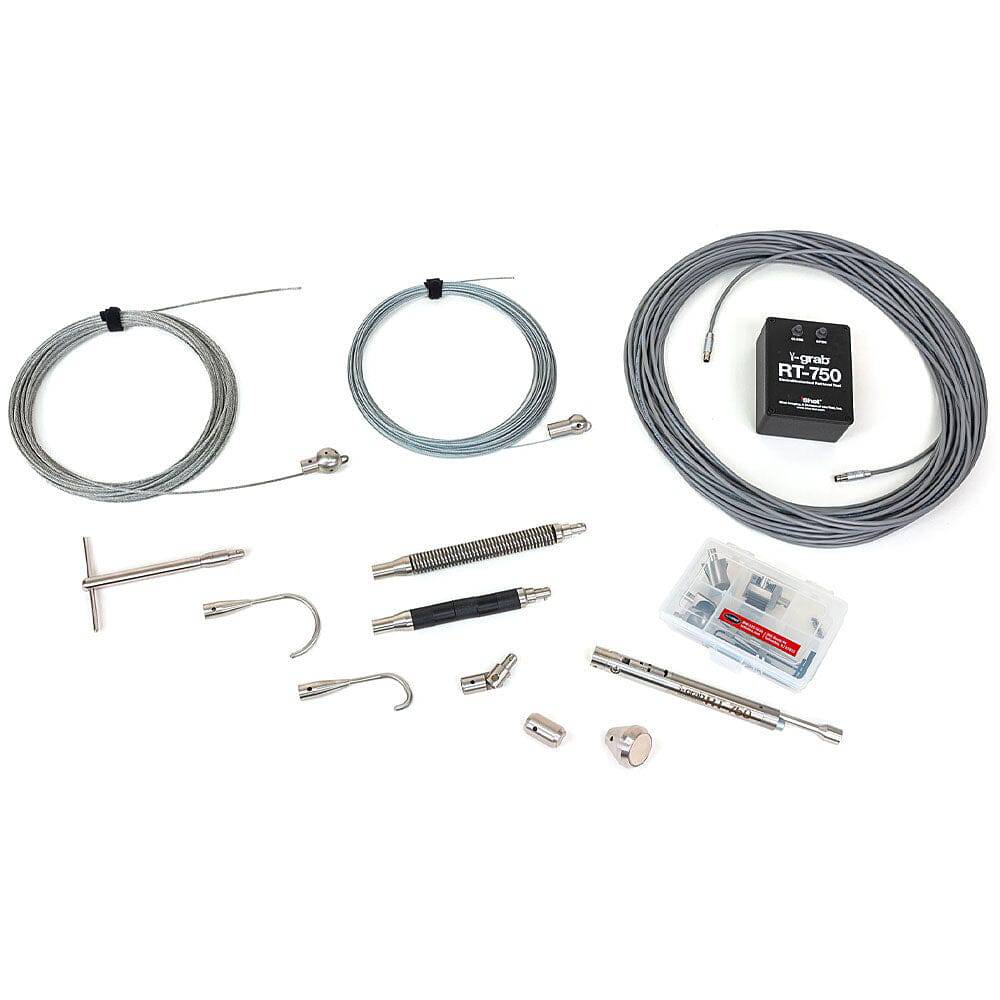

Items Included

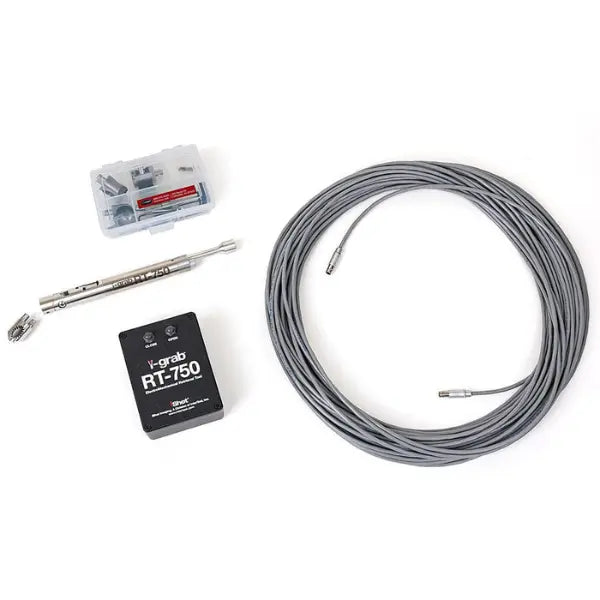

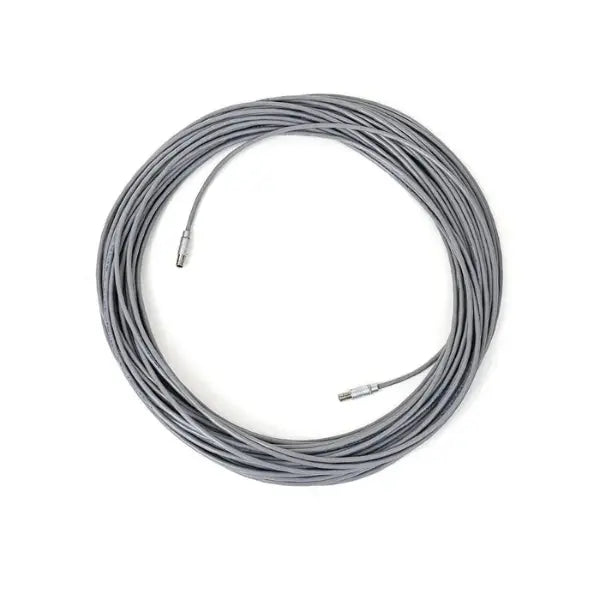

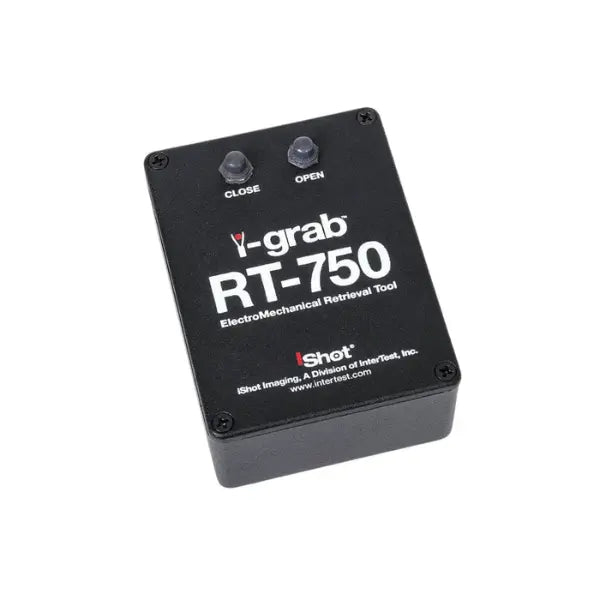

• RT-750 Electro Mechanical Tool, Control Unit, and 100 ft Cable

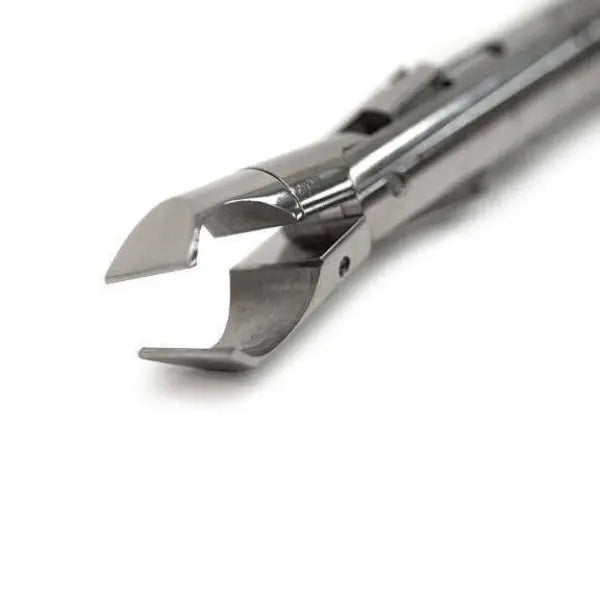

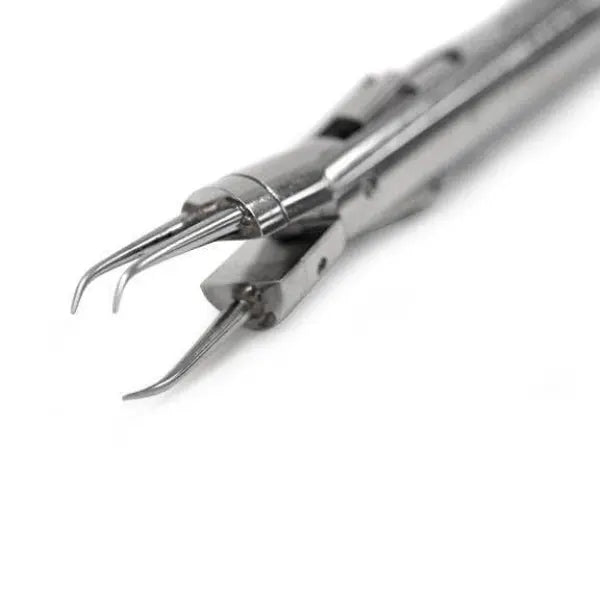

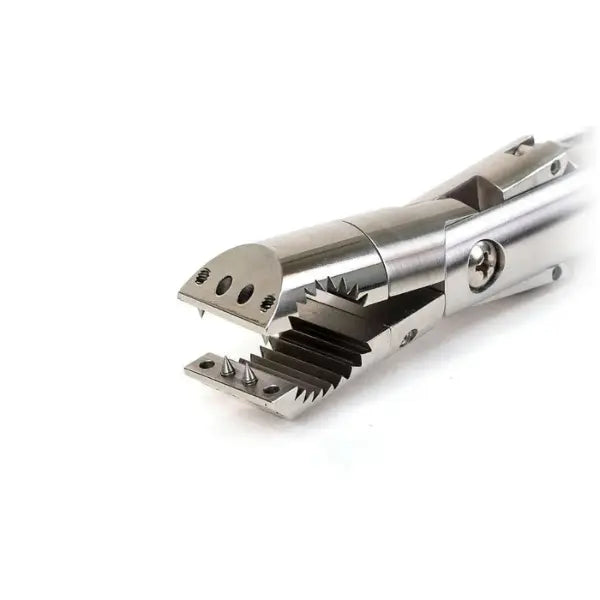

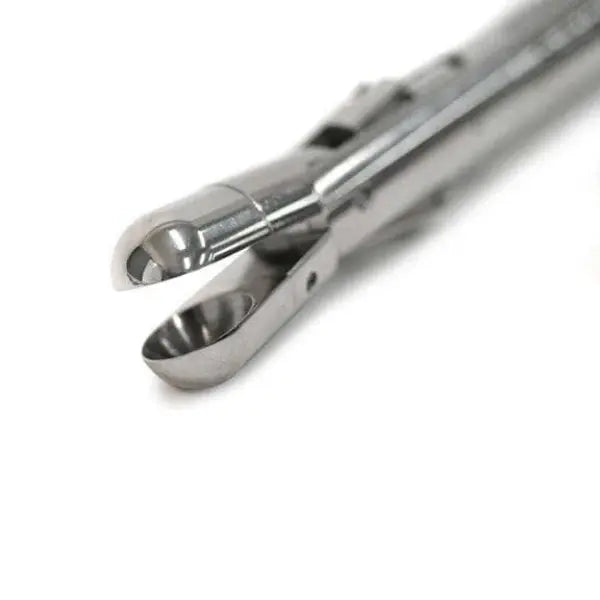

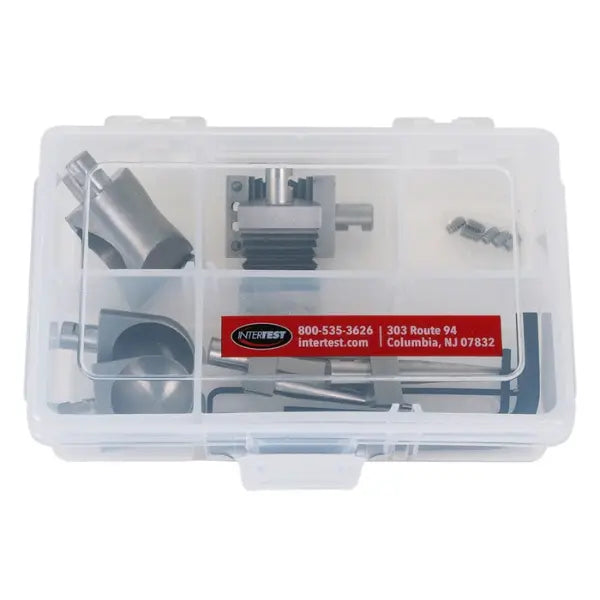

• Set of 4 Jaw Sets: Viper, Pliers, Fork & Tine, Sampling Cup

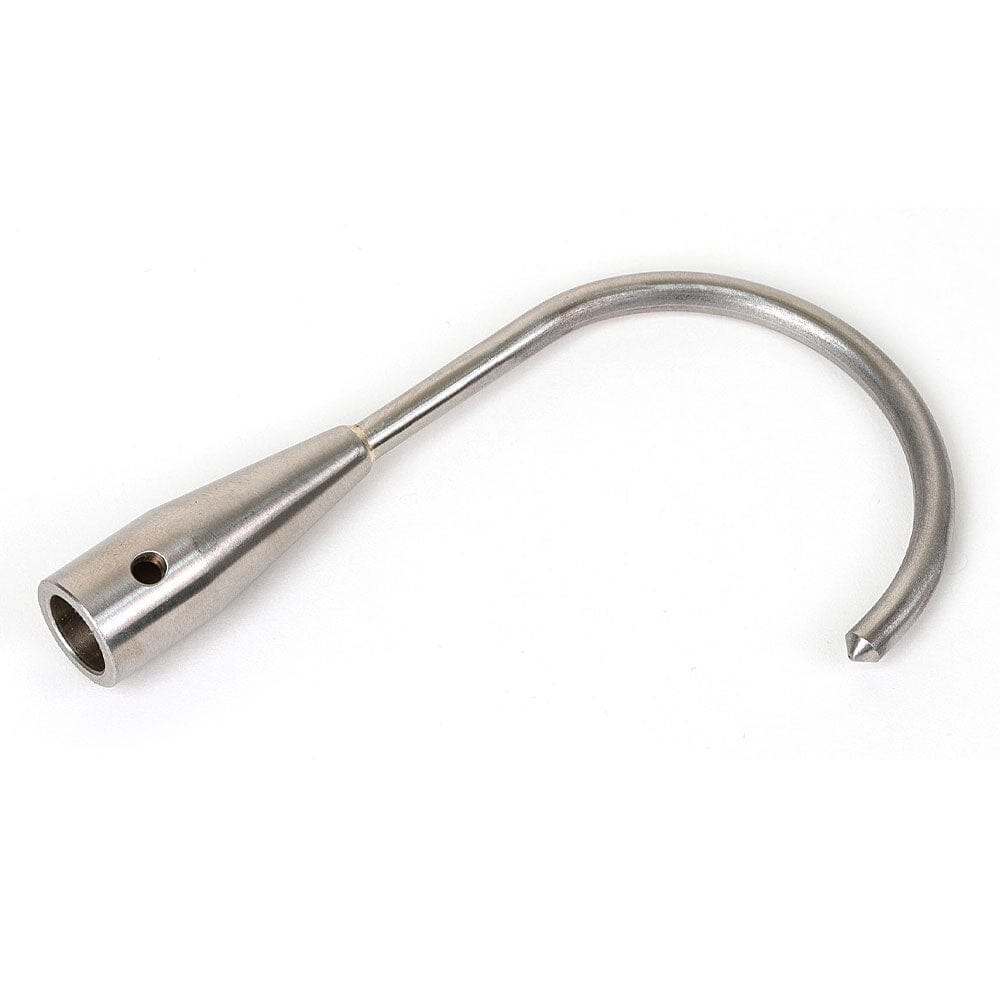

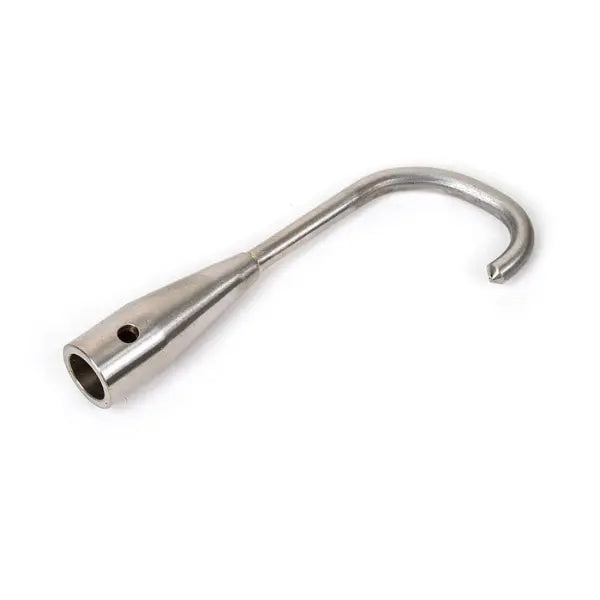

• Set of 2 Hooks

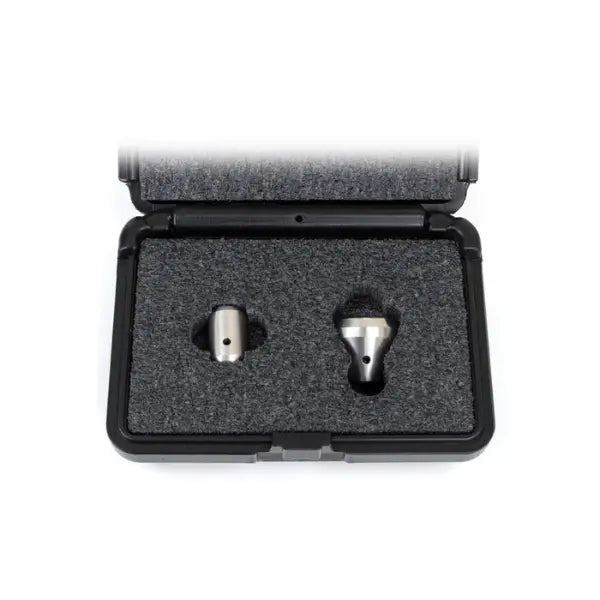

• Set of 2 Magnets: 0.69" and 1.25" in case

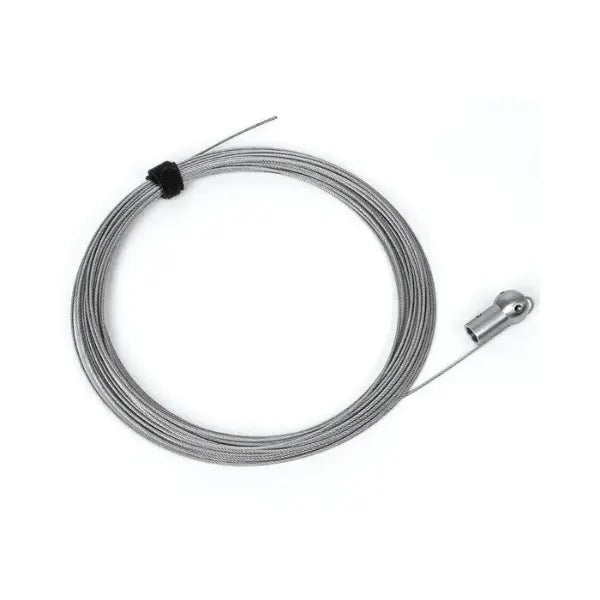

• Set of 2 Snares: 1" and 0.8" Push Pole Snares

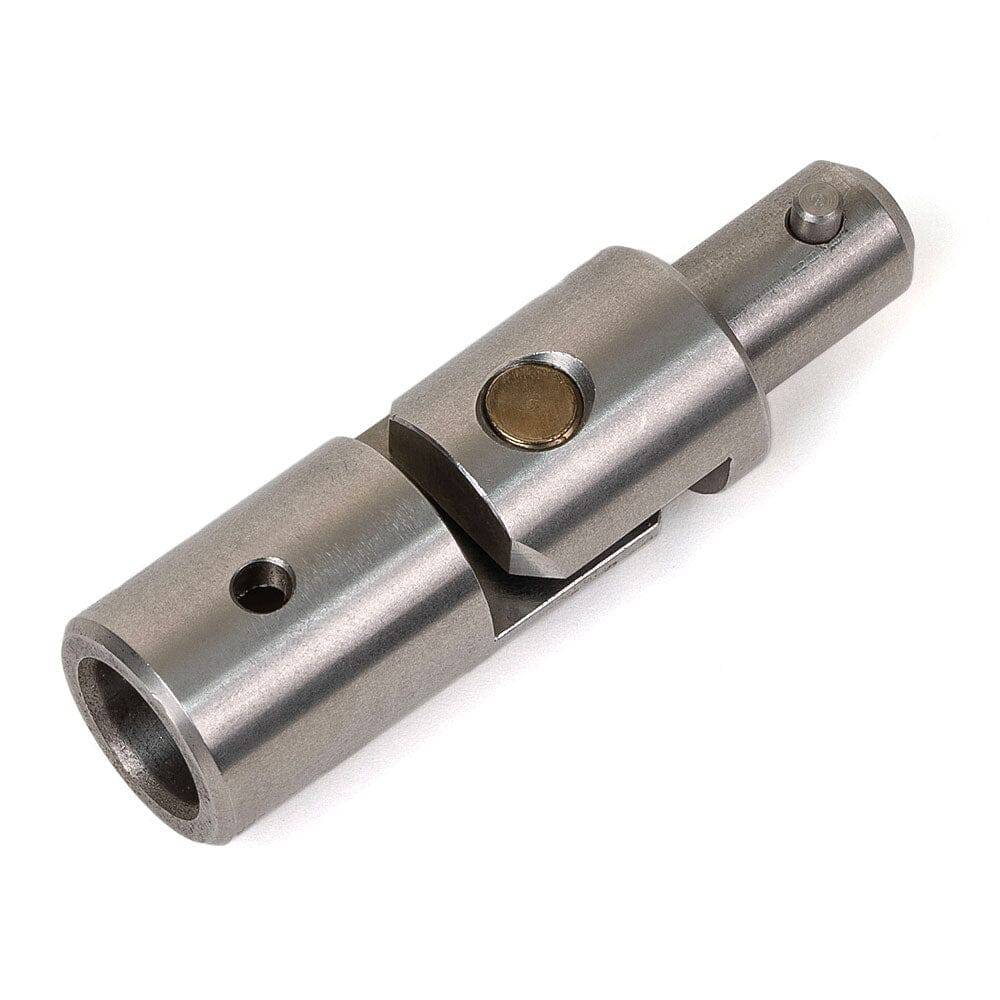

• Adjustable Knuckle Joint

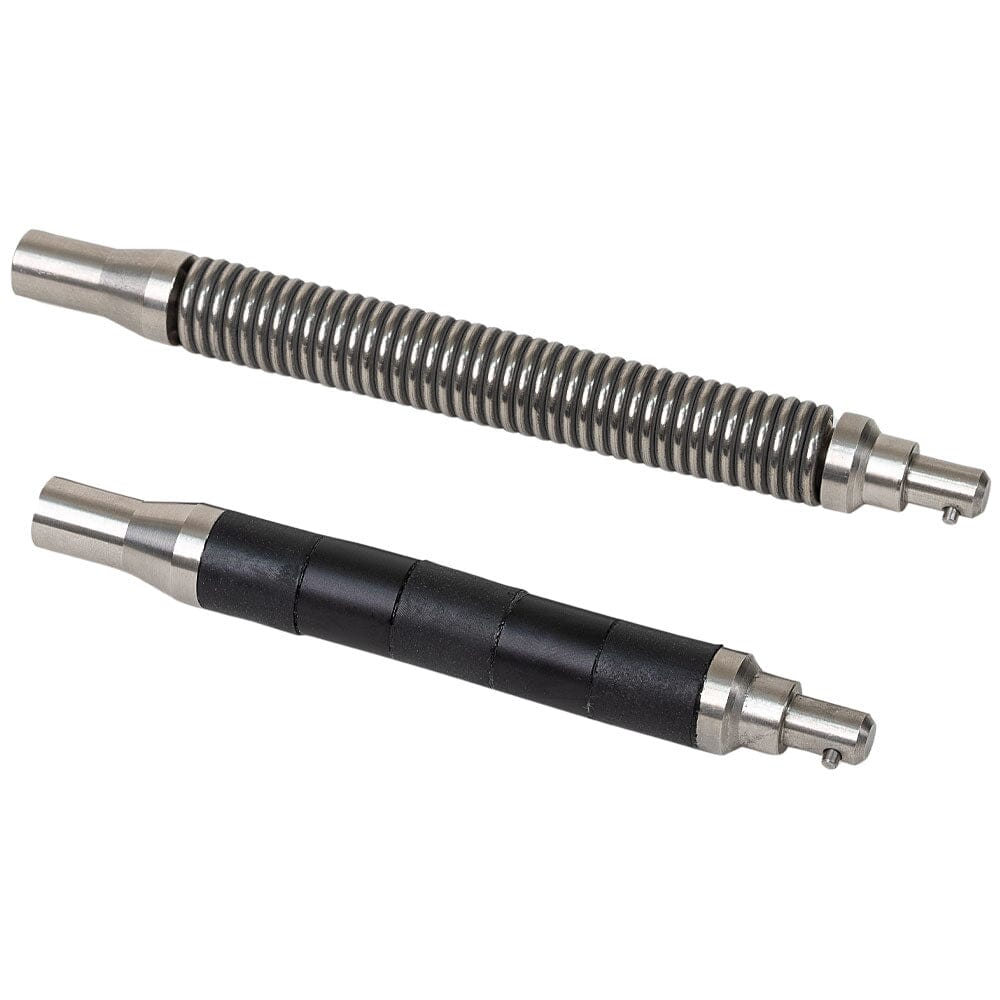

• Coupling Flexible Spring
• Coupling Flexible Push Pole

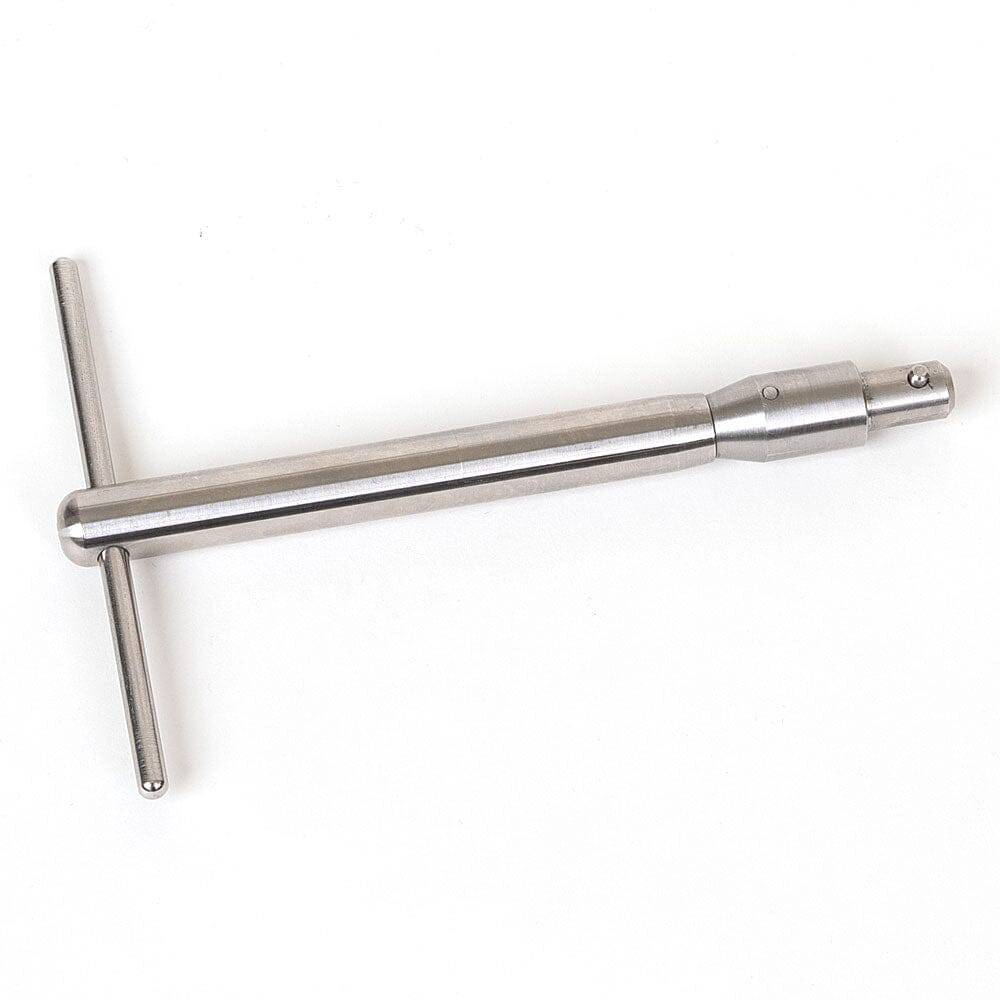

• "T" Style Handle for Push Poles

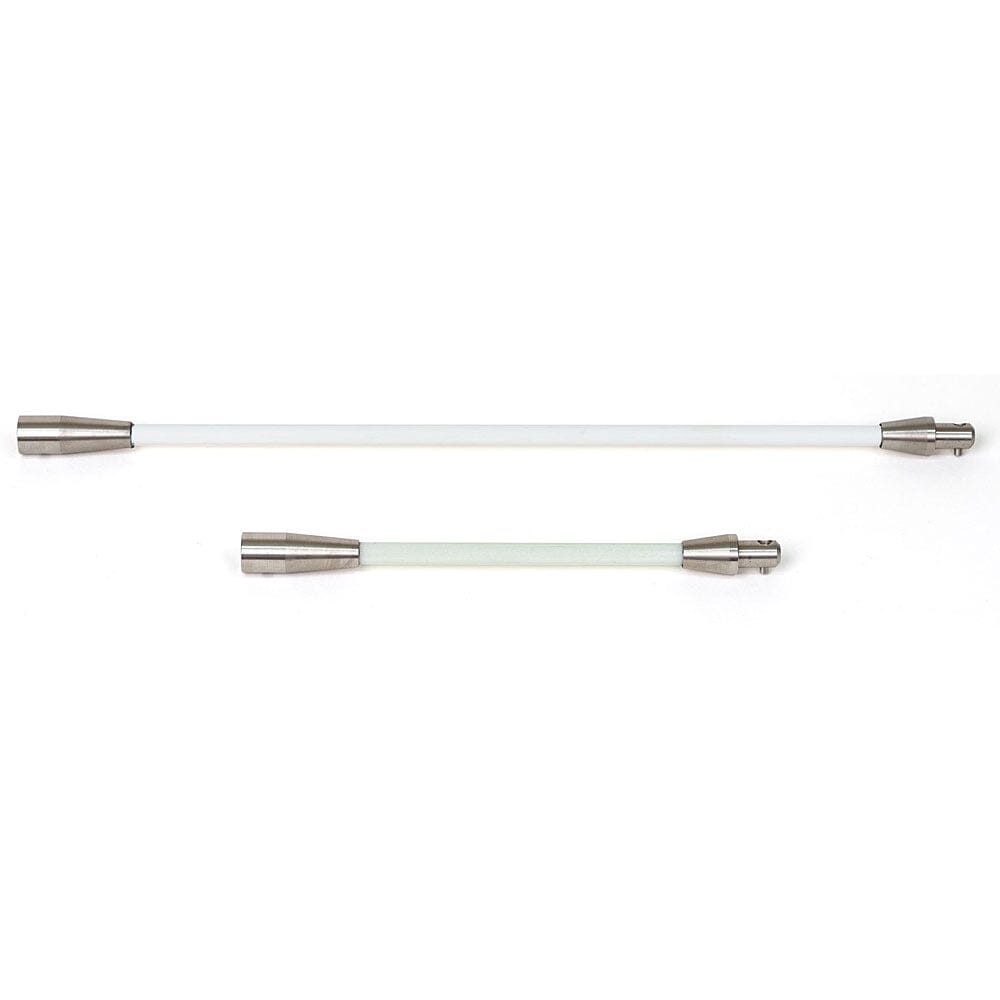

• Push Poles Included in Quiver
• Quantity of 10: 3/16" Diameter x 5 ft push Pole Section, Light Duty
• Quantity of 10: 5/16" Diameter x 5 ft push Pole Section, Medium/Heavy Duty
• Quantity of 10: 3/8" Diameter x 5 ft push Pole Section, Heavy Duty

Specifications

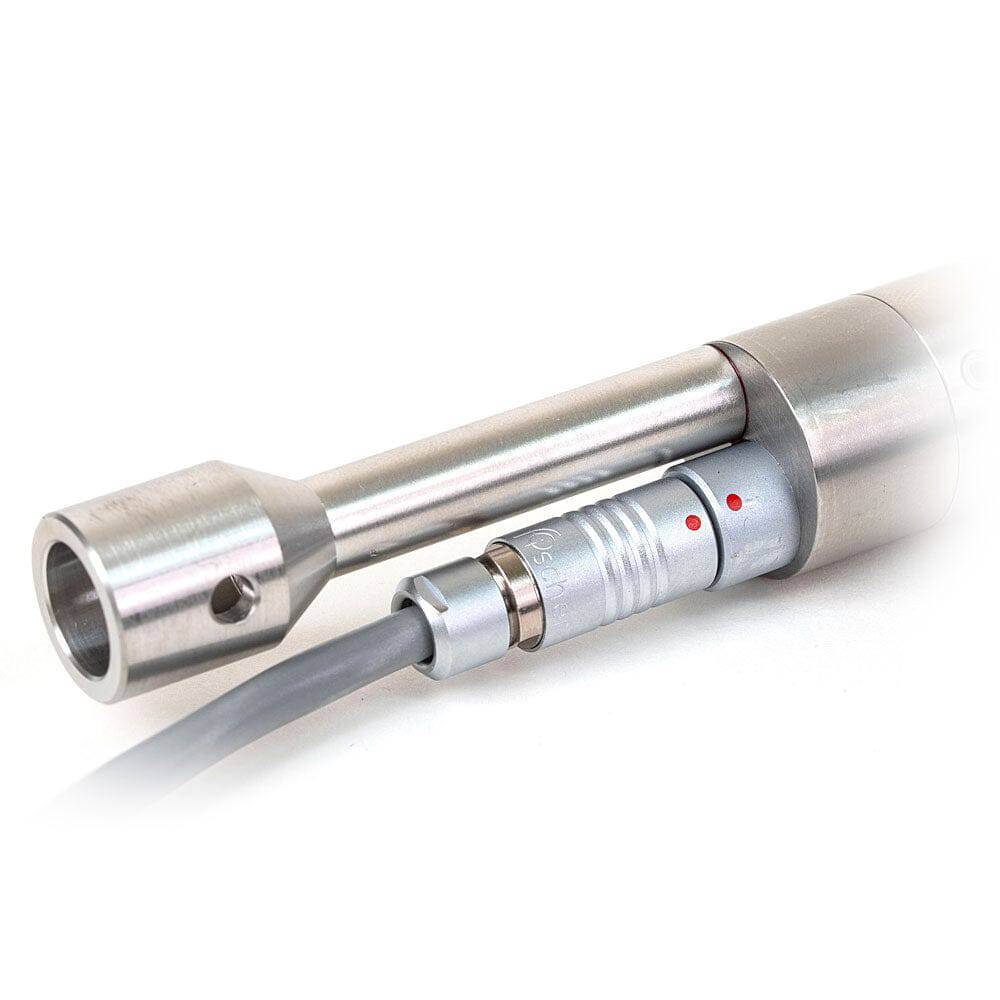

RT-750 ElectroMechanical Grabber
Outer Diameter	0.750"
Material	300 Stainless Steel
Jaw Sets	Sample Cup, Viper, Plier Jaw and Fork & Tine
Mounting Options	Push-pole receptacle / 1/4-20 thread
Closure Force	Greater than 20 lbs at 30 degrees
Waterproof	Rated to 100 FT depth
Cable	100 ft
Control Unit	Requires 8 AA batteries
Non-Motorized Retrieval Tools	each tool has a push pole receptacle
Handle	"T" Style Handle for Push Poles
Fiber Glass Push-Poles	3/16", 5/16", 3/8" diameter (10 each)
Stainless Steel J-hooks	1" and 2.4" diameter
Large Snare	1" ball with 3/32" aircraft wire
Small Snare	0.8" ball with 1/16" aircraft wire
Adjustable Knuckle Joint	Pivots ~270 degrees
Coupling Flexible Spring	High tension adapter
Coupling Flexible Push Pole	Low tension adapter
Shipping Weight Package 1	38 lbs
Shipping Dimensions Package 1	11" x 11" x 66"
Shipping Weight Package 2	18 lbs
Shipping Dimensions Package 2	22" x 16" x 6"
