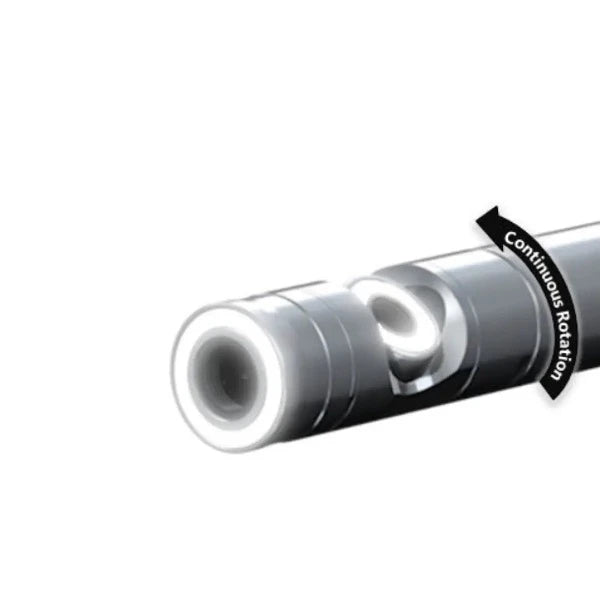

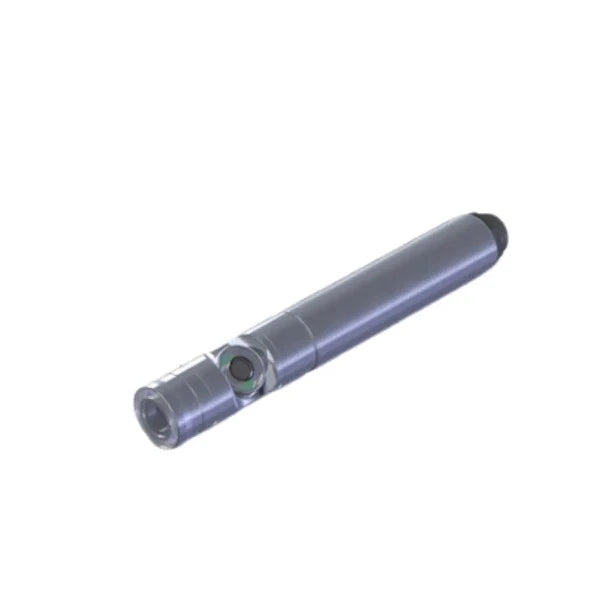

Peerless HD DualView R Rotating Camera Head
The HD DualView R camera system features forward-viewing and side-viewing HD cameras with powered continuous rotation and shadowless, bright white LEDs. It is fully submersible up to 30m (100’).
The housing is stainless-steel, 1” diameter by 6-1/2” long with sapphire windows and toolless adjustable focus lenses. Lenses are available at 40º, 55º, 70º, 90º and 110º.
Specifications
|
CAMERA SPECIFICATIONS (X2) |
|
|
Image Sensor |
1/4.4 Color CMOS |
|
Effective Image Area |
3.6mm X 2.03mm |
|
Effective Pixel Array |
1284H X 724V |
|
Pixel Size |
2.8µm X 2.8µm |
|
Signal/Noise Ratio |
>43.1dB |
|
Back Light Compensation |
Auto |
|
White Balance |
Auto |
|
Min Illumination |
.001Lux |
|
Wide Dynamic Range |
Auto WDR |
|
LED Illumination |
Yes |
|
Operating Temperature |
-40ºC~85ºC |
|
Cable Length |
Up to 60 meters [200'] |
