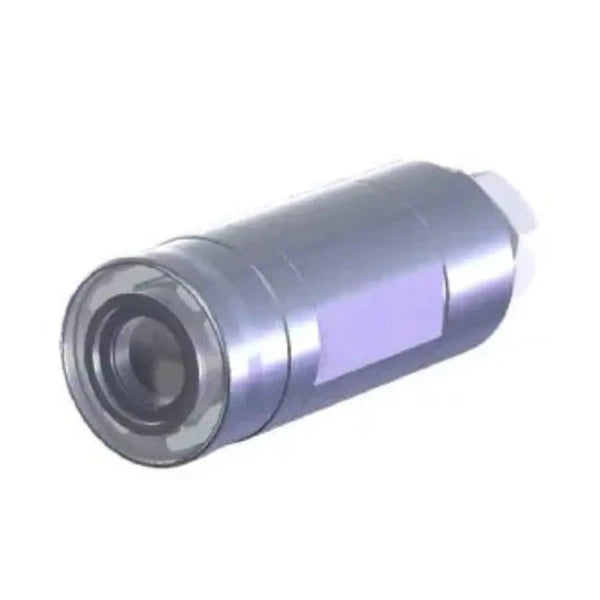

Peerless PC-XD25 25 mm Micro Camera Head

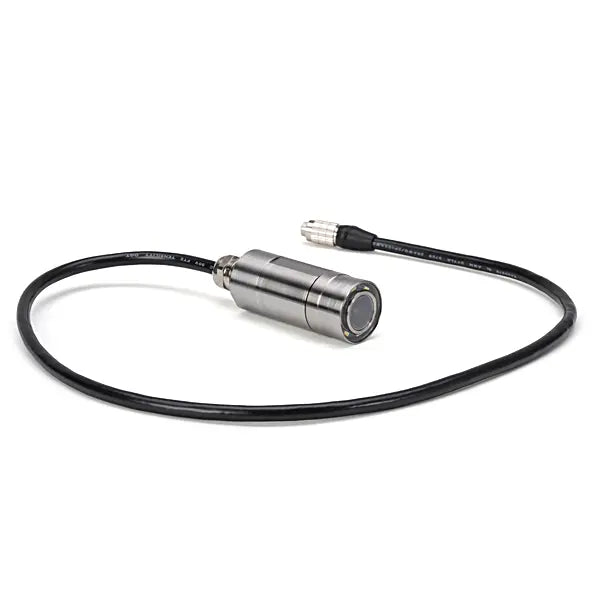

The PC-XD25 is a Full HD 1080p Camera System designed for various industrial applications. It can be utilized as a standalone device or easily incorporated into a larger solution as an OEM system without giving up performance.

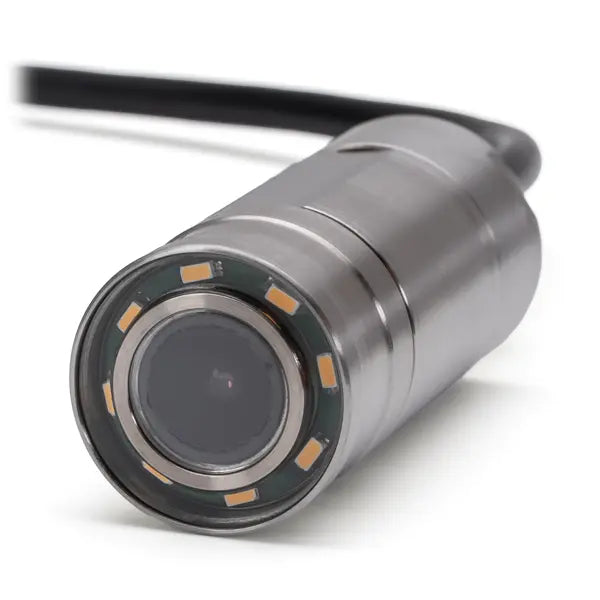

It features a stainless-steel housing with 6 LEDs for shadowless illumination and is fully waterproof up to the entire length of the cable. The lens is easily adjustable without using tools; additional lenses are available with different viewing angles.
The PC-XD25 can be placed up to 60 meters (200 feet) from the control unit, making it a highly capable solution for remote viewing. Multiple options for the camera control unit are available in a portable 5” and 7” Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and a DVR with full image capture, recording, and playback capabilities. The Desktop Controller also has multiple outputs and an LED adjustment knob.
Specifications
|
CAMERA SPECIFICATIONS: |
PC-XD25 |
|
Image Sensor |
1/2.8 Color HD CMOS |
|
Effective Image Area |
12mm X 9.3mm |
|
Effective Pixel Array |
1945H X 1097V |
|
Pixel Size |
2.8µm X 2.8µm |
|
Signal/Noise Ratio |
>30dB |
|
Back Light Compensation |
Auto |
|
White Balance |
Auto |
|
Min Illumination |
.0001Lux/1.2F |
|
Wide Dynamic Range |
Auto WDR |
|
Lens Mount |
Proprietary |
|
Operating Temperature |
-30ºC~85ºC |
|
Cable Length |
Up to 60 meters [200'] |
|
Dimensions |
25mm Dia. X 70mm L |
|
LED Illumination |
Yes |
|
Resolution |
1080p |
