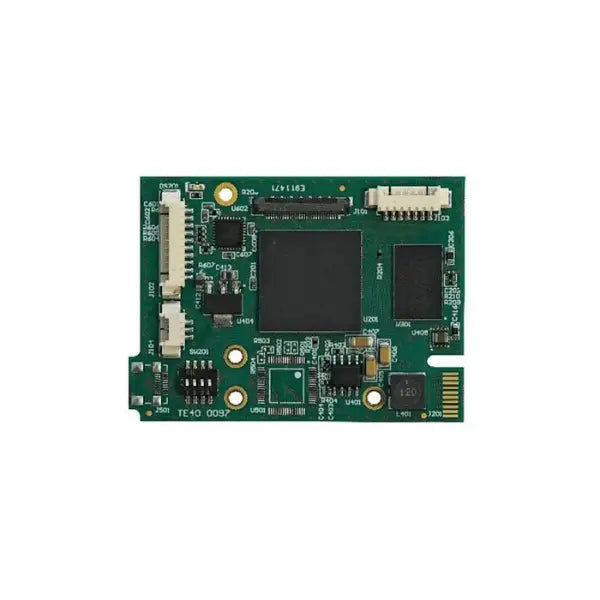

Twiga TV10 0071 LVDS to Analog Interface Board
The Twiga TV10 0071 LVDS to Analog Interface Board is the first LVDS to analog HD & analog SD interface board for Sony FCB-EV7520, FCB-EV7520A, and
the new Sony FCB-EV9500L.
Video format SD & HD
The board supports up to 1080p25/30 YPbPr analog HD video format and 1080p25/30 to analog SD NTSC/PAL video format.
“Letterbox” or “Crop” conversion from HD 16/9 to SD 4/3 aspect ratio is available
Serial and GPIO control
The board supports RS232 / TTL levels - VISCA protocol. GPIO is available for zoom, focus, and freeze control.
Compact & cost-effective solution
Highly compact, Twiga LVDS to analog HD & SD solution for various applications.
Specifications
|
Analog HD video output |
YPbPr |
|
Analog SD video output |
CVBS & Y/C NTSC/PAL format |
|
Analog video conversion |
« Letter box » or « Crop » format |
|
GPIO Control |
Zoom, focus, freeze control |
|
Camera Control |
TTL/RS232 levels - VISCA protocol |
|
Power Supply |
8 to 12 VDC, 5 W (including camera) |
|
Operating temperature range |
0°C to 60°C |
|
Storage temperature range |
-20°C to 60°C |
|
Regulation |
EMC FCC part 15, PCB : UL 94 V0 |
|
Dimensions (mm) |
55 (H) x 41.5 (W) |
