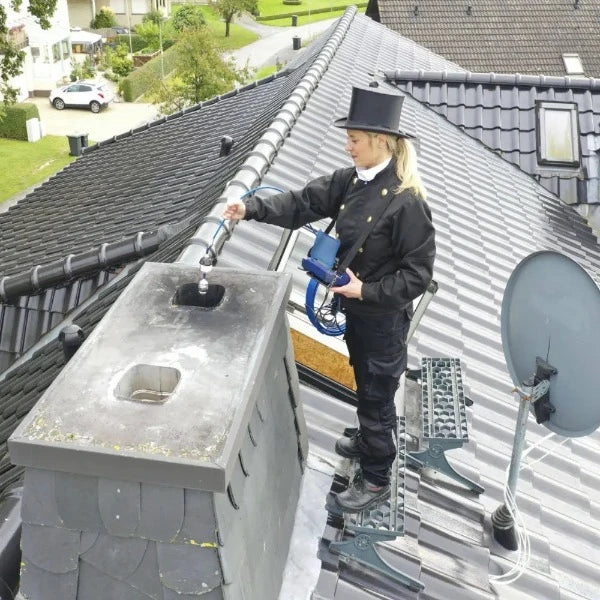

Wohler VIS 500 Chimney Inspection Camera System w/ 1.5" Camera Head and Cable Reel - 12143
The Wohler VIS 500 Chimeny inspection camera features a Locator and exchangeable camera heads that can control the pan and tilt of the camera head via a keypad, making everything in view, even in dark areas. The monitor provides sharp and true-color images with exact detail and features a large internal memory and a USB drive for external storage.
The camera‘s WLAN interface makes it feasible to view images and videos on the large camera display and simultaneously on the smartphone or tablet display, allowing for simultaneous streams. The image files are transferred from the camera to the app via WLAN; during the inspection, an illustrated report can be done in just a few minutes, which you can send directly from your smartphone to your office address, the customer, or the insurance company with one click.
Specifications
|
Monitor |
|
|
TFT display |
7" / 16:9 Format |
|
Resolution |
1.024 x 600 px |
|
Power supply |
USB-C 5 V / 3 A 3,7 V / 11,4 Ah |
|
Operating time |
Operating time |
|
Dimensions |
9.6" x 5.5" x 2.1" |
|
Weight |
1.5 lbs |
|
Wohler pan / tilt camera head Ø 1.5" |
|
|
Resolution |
720 x 576 px (PAL) 720 x 480 px (NTSC) |
|
Angle of image capture |
130° |
|
Light source |
white LEDs (12 pieces) |
|
Protection class |
waterproof IP 67 |
|
Dimensions |
Ø 1.5" x 2.4" |
|
Transmission frequency Locator |
9.2 kHz / 8.9 kHz / 512 Hz |
|
Resolution |
720 x 576 px (PAL) 720 x 480 px (NTSC) |
|
Image acquisition angle diagonal |
145° |
|
Light source |
white LEDs (12 pieces) |
|
Protection class |
pressurized waterproof IP 68 |
|
Dimensions |
Ø 1" x 1.5" |
|
Transmission frequency Locator |
9,2 kHz |
|
Camera pushrod |
|
|
Length |
100' electr. distance counting |
