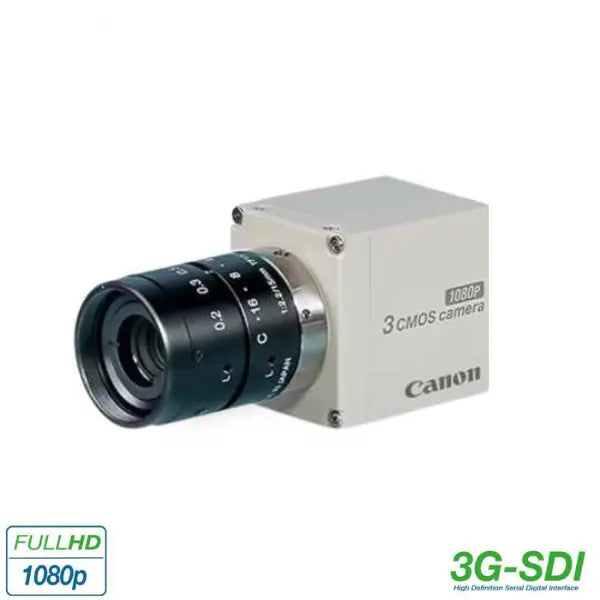

Canon Medical IK-HD5H 3-CMOS 3GSDI Camera Head

Cannon Medical Vendor Logo SKU: EM18811MFG: IK-HD5H

• 3-CMOS HD Sensors, 2.1MP, progressive, 1/2.9”
• 3G-SDI/HD-SDI and DVI-D output, 1920 x 1080
• USB3.0 and DVI-D output, 1920 x 1080 at 59.94fps via USB3.0 or 10fps in USB2.0
• Switchable between 1080p and 1080i
• Up to 1,000 TV lines resolution
• 5 User-configurable scene files
• Binning mode for 4x increase in sensitivity
• Image flip and mirror
• Gen-lock for 3D and multi-camera use
• Remote control via RS232
• C-mount lens mount
• Removable optical low pass filter
• Provides switchable output between full-HD
video in visible and near-infrared spectrums
• Approximately 3dB increased sensitivity in near IR
• Expanded menu functions for red filter IR mode



Canon Medical IK-HD5H 3-CMOS 3GSDI Camera Head

The IK-HD5H 3-CMOS camera is a progressive-scan full-HD 1080p/1080i video camera featuring 3G-SDI/HD-SDI and DVI-D or USB3.0 and DVI-D outputs and removable optical low pass filter (OLPF) for dual-mode imaging applications switchable between visible light and near-infrared visualization.

The IK-HD5U configuration includes advanced features particularly well suited for microscopy applications including USB3 output, freeze frame, and more prolonged exposure up to 1 second (60 frames). This HD camera can be used for any HD video application and applications that use fluorescing agents.


Image Sensor

3-CMOS, 1/2.9 inch, 2.1MP progressive

Output Resolution

Horizontal: 1920 Vertical: 1080

Resolution  H:


H: 1000 TV lines standard

V: 1000 TV lines standard


F10 standard (59.94 Hz setting) F11 standard (50 Hz setting) (at 2000 lx, 3000 K)

Minimum Illumination

4.8 lx (59.94 Hz setting) 4.0 lx (50 Hz setting)at F2.2 , 20 dB, BINNING: ON 9.6 lx (59.94 Hz setting) 8.0 lx (50 Hz setting) at F2.2, 20 dB, BINNING: OFF

S/N Ratio

56 dB standard

AGC: OFF, Gamma: OFF, Enhance: OFF

Operating Temperature

0 ̊C to 40 ̊C / 32 ̊F to 104 ̊F

Operating Humidity

Less than 90% (non-condensing)


Approx. 93 g (3.3 oz)


W: 32.6 mm H: 38.6 mm D: 41 mm (1.28” x 1.52” x 1.61”)

Protruding portion is not included
