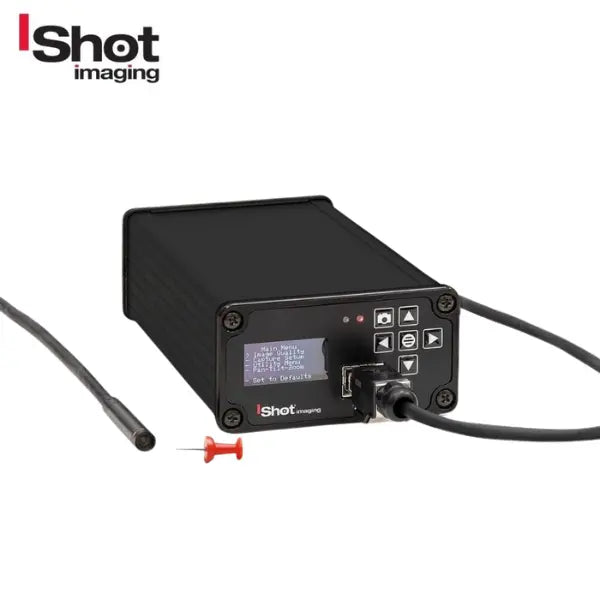

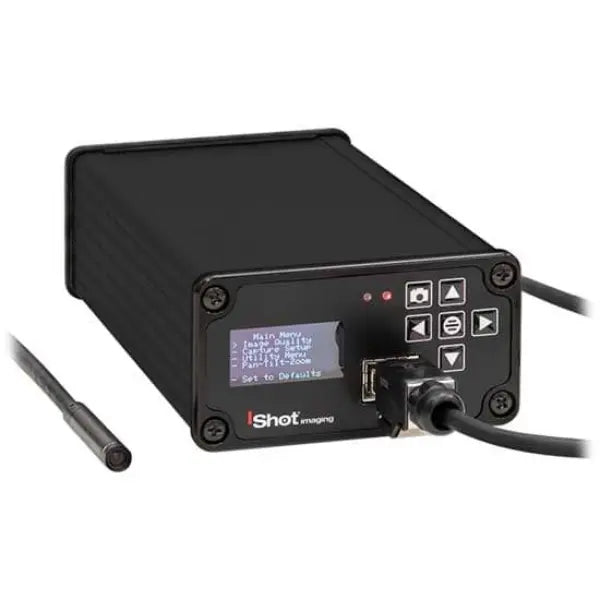

iShot® QN-HD 7 mm Industrial Color HD Camera

iShot Cameras Vendor Logo SKU: QN-HD-SYSTEM

• Miniature 7 mm outer diameter
• 1080/60p HD picture, 1960 x 1080 (2 megapixel)
• USB-C power supply, DVI & VGA output
• Integrated LED Available
• Continuous operation in radiated environments up to 10K RAD/hour dose rate

Choose a Camera

iShot® QNHD Camera with Integrated 2 m PVC Cable
iShot® QNHD Camera with Integrated 2 m PVC Cable
iShot® QNHD Camera with Integrated 2 m Teflon Cable
iShot® QNHD Camera with Integrated 2 m Teflon Cable
iShot® QNHD Camera with Integrated 3.5 m PVC Cable
iShot® QNHD Camera with Integrated 3.5 m PVC Cable
iShot® QNHD Camera with Integrated 3.5 m Teflon Cable
iShot® QNHD Camera with Integrated 3.5 m Teflon Cable
iShot® QNHD Camera with Integrated 5 m PVC Cable
iShot® QNHD Camera with Integrated 5 m PVC Cable
iShot® QNHD Camera with Integrated 5 m Teflon Cable
iShot® QNHD Camera with Integrated 5 m Teflon Cable
iShot® QNHD Camera with Integrated 10 m PVC Cable
iShot® QNHD Camera with Integrated 10 m PVC Cable
iShot® QNHD Camera with Integrated 10 m Teflon Cable
iShot® QNHD Camera with Integrated 10 m Teflon Cable
iShot® QNHD Camera with Integrated 15 m PVC Cable
iShot® QNHD Camera with Integrated 15 m PVC Cable
iShot® QNHD Camera with Integrated 15 m Teflon Cable
iShot® QNHD Camera with Integrated 15 m Teflon Cable

Choose a Lens

iShot® 1.8mm Lens for QNHD Camera (90º FOV)
iShot® 1.8mm Lens for QNHD Camera (90º FOV)
iShot® 1.9mm Right Angle Lens (90º) for QNHD Camera
iShot® 1.9mm Right Angle Lens (90º) for QNHD Camera
iShot® 2.5mm Lens for QNHD Camera (60º FOV)
iShot® 2.5mm Lens for QNHD Camera (60º FOV)
iShot® 4mm Lens for QNHD Camera (40º)
iShot® 4mm Lens for QNHD Camera (40º)
iShot® 7.1mm Lens for QNHD Camera (20º FOV)
iShot® 7.1mm Lens for QNHD Camera (20º FOV)
iShot® 15 mm Lens for QNHD Camera (10º FOV)
iShot® 15 mm Lens for QNHD Camera (10º FOV)

Choose a Camera Control Unit

iShot® QNHD Camera Control Unit
iShot® QNHD Camera Control Unit
iShot® QNHD Camera Control Unit w/ LED Output
iShot® QNHD Camera Control Unit w/ LED Output

Accessories

iShot® QNHD Power Supply, USB-C
iShot® QNHD Power Supply, USB-C

Description

Details

iShot® QN-HD 7 mm Industrial Color HD Camera

The iShot QN-HD 7 mm HD micro camera replaces the Elmo QN 42H and its 7 mm Toshiba IK-SM43H equivalent.  It is compatible with existing ELMO and Toshiba 7 mm diameter lenses and newly designed units. QN-HD is a 1080/60p micro high definition 7mm diameter color camera utilizing a 1/6" (1920 X 1080, 2 MP) CMOS sensor.  High-speed digital/serial communication between the camera head and the camera control unit (CCU) provides responsive performance. Signal and power are each sent over separate twisted wire pairs, greatly simplifying cable construction.  This transport design supports 15 m configurations, allowing the remote camera head to be located in hard-to-reach areas.

The QN-HD is a proven performer in challenging environments, Used as a standalone camera or part of an integrated system.   For example, the QN-HD has been used in Radiation Environments for continuous operation at a 10K RAD/hour dose rate. It also is proven to operate after a +70K cumulative RAD dose.

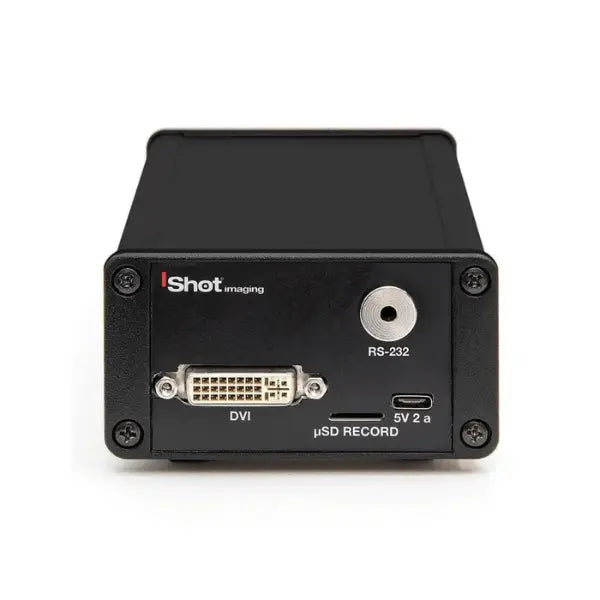

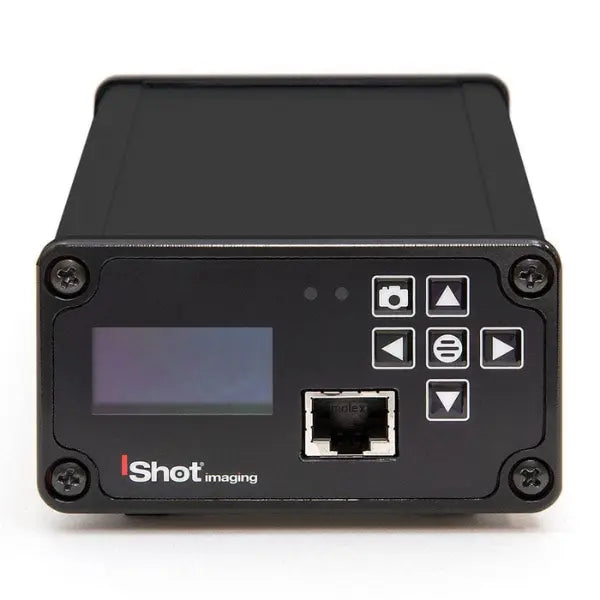

The CCU has added features, including still image capture and an onboard, current LED power supply.  The camera head and lenses are mechanically identical to the ELMO QN series.

Specifications

Signal System DVI, USB 2.0
Video Formats 1080p60, 1080p30, 720p60, 480p120
Format 16:09
Sensor 1/6" CMOS 2 Megapixel
Exposure Auto, Manual
Shutter Values Automatic, over 20 selectable values
Image Controls White Balance, Sharpness, Gamma, Saturation, Contrast, Hue
E-PTZ Available in Downscaled Modes
Presets 4 Available
Color Temp Options 2800K, 4500K, 6500K
Cable Material PFA (High Temperature) or PVC
Cable Lengths 2 m, 3.5 m, 5 m, 10 m, and 15 m
Storage Removable Micro SD
Power 5v DC , 800ma, 1a under LED operation
