iShot® QNHD Camera Control Unit w/ LED Output

iShot Cameras Vendor Logo SKU: EM17541

• Controls camera and video imaging of the QNHD Camera Head
• USB-C power supply, DVI & VGA output
• Integrated Auxiallry LED output and control

Description

Details

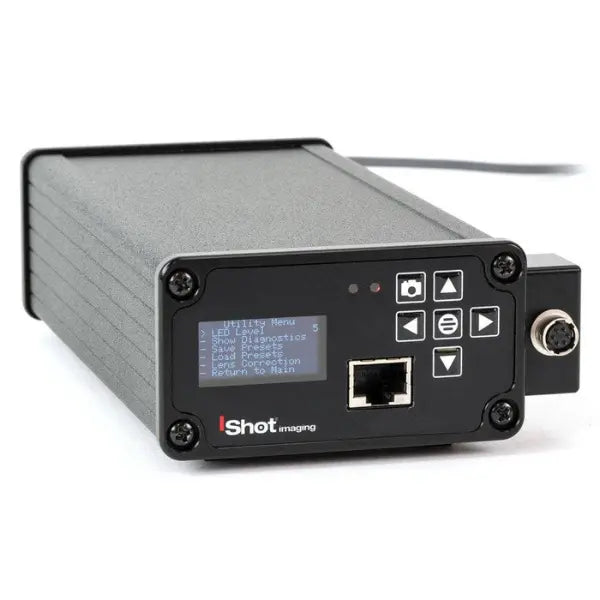

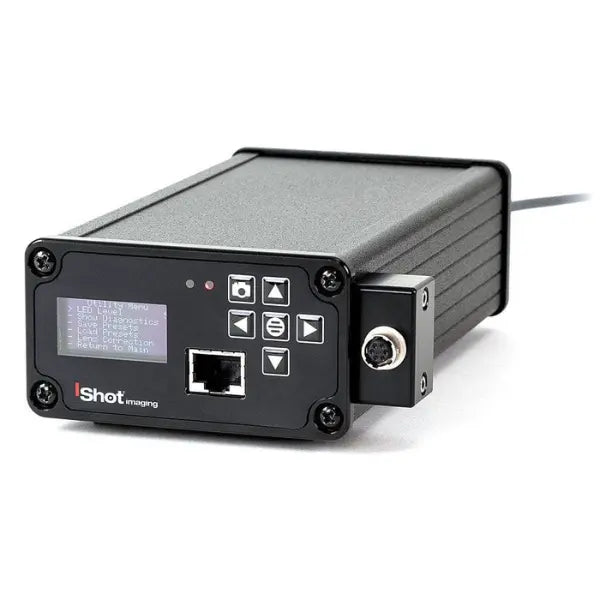

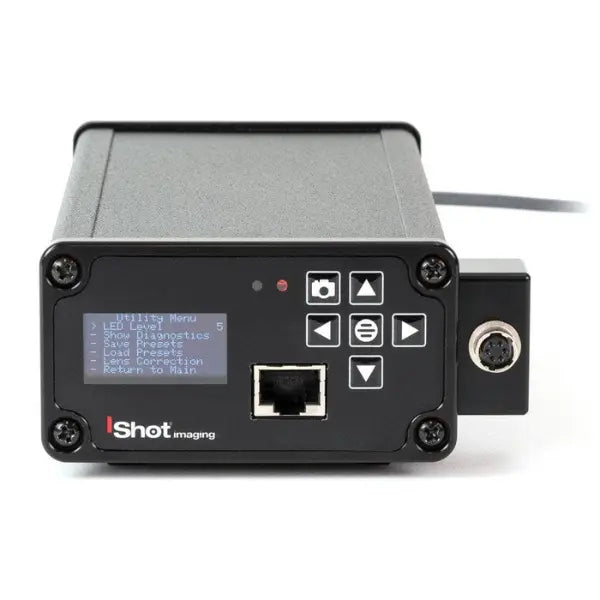

The QNHD Camera Control Unit w/ LED output controls and processes the imaging of the QNHD camera head and integral cable. Additionally, this unit can power external LEDs for auxiliary illumination.

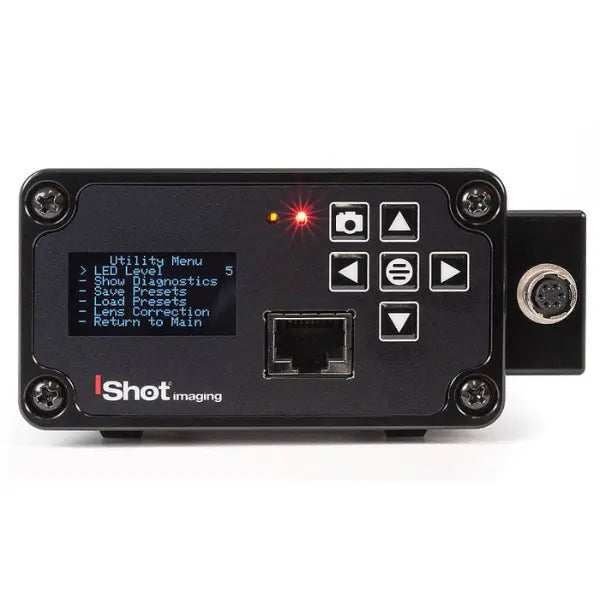

Through the RJ45 connector, the CCU commands the camera to perform still image capture and video capture and adjust white balance, sharpness, gamma, saturation, contrast, hue, and others. Find further details here:



iShot® QN-HD 7mm Industrial Color Camera System

Specifications

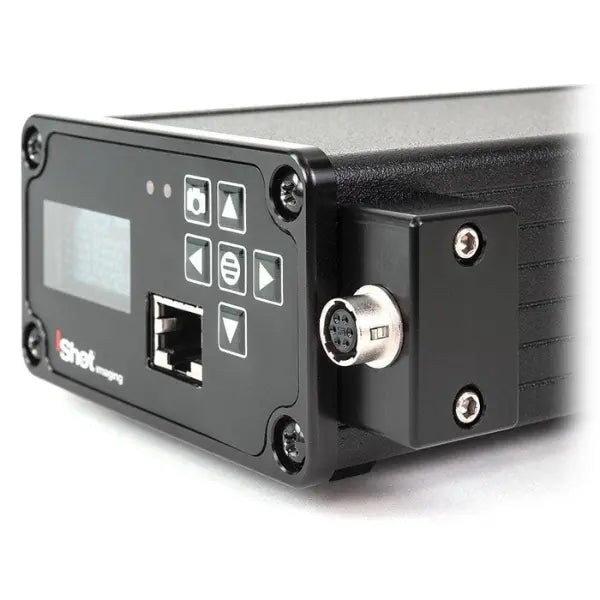

Standard Connections
DVI Video output
USB-C

Power input, USB video output

MicroSD Image file storage
External COM port RS232 communication between CCU and camera
Chassis Ground Connection #8-32 x 3/8" grounding connection



Signal System DVI, USB 2.0
Video Formats 1080p60, 1080p30, 720p60, 480p120
Format 16:09
Sensor 1/6" CMOS 2 Megapixel
Exposure Auto, Manual
Shutter Values Automatic, over 20 selectable values
Image Controls White Balance, Sharpness, Gamma, Saturation, Contrast, Hue
E-PTZ Available in Downscaled Modes
Presets 4 Available
Color Temp Options 2800K, 4500K, 6500K
Cable Material PFA (High Temperature) or PVC
Cable Lengths 2 m, 3.5 m, 5 m, 10 m, and 15 m
Storage Removable Micro SD
Power 5v DC , 800ma, 1a under LED operation
