Video standard
|
NTSC or PAL
|
|
Pick-up element
|
1/3.2 inch BSI CMOS image sensor
|
|
Number of effective pixels
|
NTSC: 1280(H) × 960(V)
|
|
|
PAL: 1280(H) × 924(V)
|
|
Unit cell size
|
3.5μm(H) × 3.5μm(V)
|
|
Imaging system
|
RGB+W array mosaic filters on chip
|
|
Synchronizing system
|
Internal
|
|
Scanning system
|
Progressive
|
|
Video output
|
Composite: 1.0 V(p-p) 75Ω (Unbalanced)
|
|
Resolution (H)
|
More than 750TVL (Center)
|
|
Minimum illumination
|
0.002 lx F1.2 (AGC ON=54dB, Shutter=OFF)
|
|
S/N
|
More than 55dB (AGC OFF=0dB, γ=1.0)
|
|
Function settings
|
OSD:Remote controller
|
|
AE mode
|
Fixed 1/100,1/120, 1/125, 1/250, 1/500, 1/100, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec.
|
|
|
EI 1/60 - 1/100000 sec. 1/50 - 1/100000 sec.
|
|
White balance
|
ATW, AWB, PWB, MWB, PRESET (5100K, 6300K)
|
|
MGC
|
0 - 54dB (6dB step)
|
|
Day/Night
|
ICR mechaless Auto, Manual
|
|
Gamma characteristics
|
γ≒0.45
|
|
Video level
|
Adjustable
|
|
Noise reduction
|
2DNR OFF/ON Level adjustable
|
|
Wide dynamic range
|
WDR OFF/ON Level adjustable，D-WDR OFF/ON Level adjustable
|
|
Lens iris
|
DC
|
|
Back light compensation
|
BLC, HSBLC
|
|
Sharpness
|
Level adjustable
|
|
Defog
|
OFF/ON Level adjustable
|
|
Privacy mask
|
16 masks
|
|
Mirror image
|
OFF, V-FLIP, H-FLIP, HV-FLIP
|
|

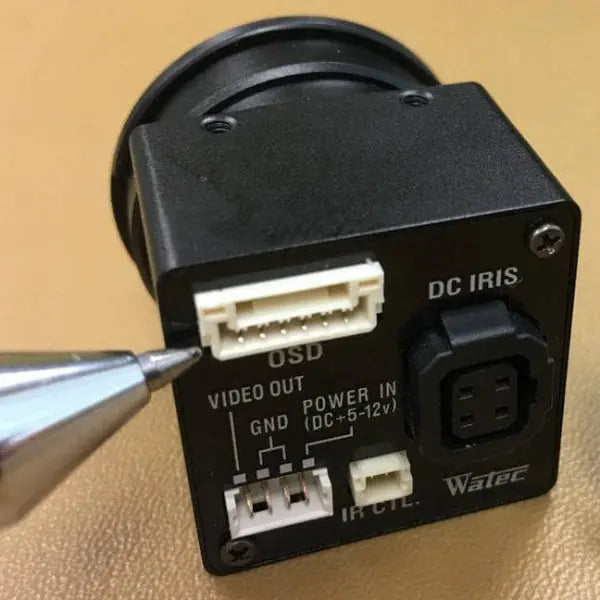

Interface
|
4P connector (Composite Video, Power in), Auto iris, 2P connector (IR light ctl), Remote conntrol (RC-01)
|
|
Power supply
|
DC+5V - 12V
|
|
Power consumption
|
0.6W/120mA (DC+5V), 0.72W/60mA (DC+12V)
|
|
Operating temperature
|
-10 - +50°C
|
|
Storage temperature
|
-30 - +70°C
|
|
Operating / Storage humidity
|
95% RH or less (Without condensation)
|
|

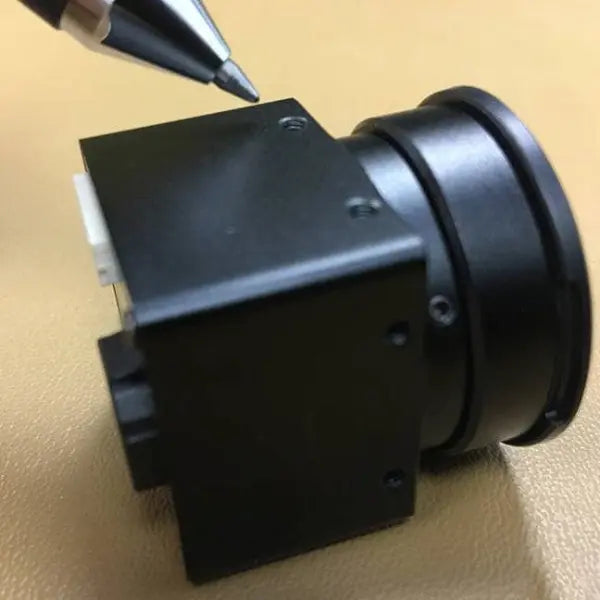

Lens mount
|
CS mount
|
|
Weight Approx
|
22g
|
|
Accessories
|
AIC-G (Iris plug), 4P cable, 2P cable, Hex. wrench, Camera bracket
|
