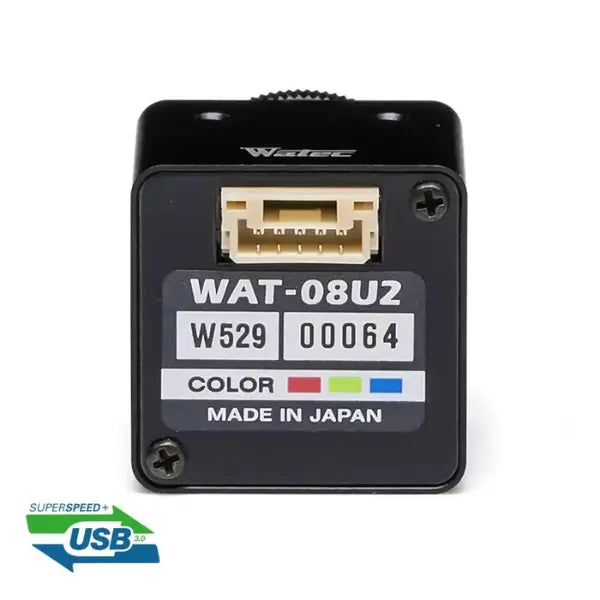

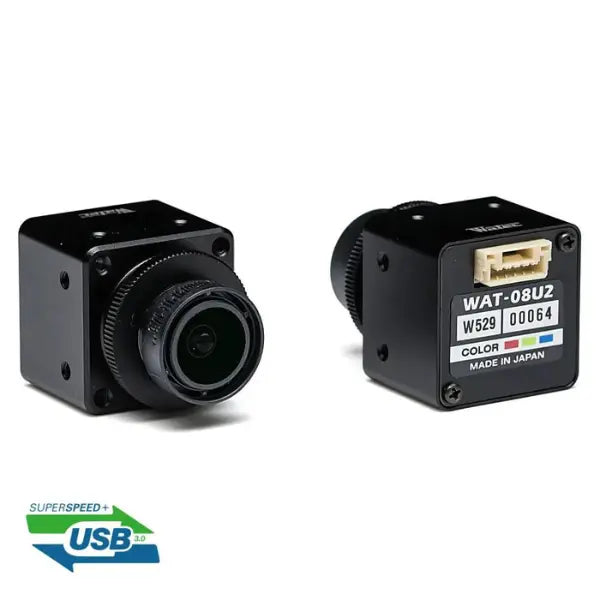

Watec WAT-08U2 Miniature Ultra Low-Light Color USB Camera

Watec Vendor Logo SKU: EM10066 MFG: WAT-08U2

• Color
• Low Light
• 1/2.8-inch CMOS sensor
• 30fps in Full HD
• Various optional M12 lenses available
• Lens fixing ring prevents misalignment of focus

Watec

Description

Details

Watec WAT-08U2 Miniature Ultra Low-Light Color USB Camera

The Watec WAT-08U2 Miniature Ultra Low-Light Color USB Camera features a 1/2.8-inch CMOS sensor, providing high-quality, Full HD video output at 30fps. This makes it ideal for embedding, thanks to its specially designed USB connector that reduces depth. The Watec WAT-08U2 Miniature Ultra Low-Light Color USB Camera is a fully adjustable camera with a quality ISP that delivers crisp, clean imagery even in low-light environments. Enhance your surveillance capabilities with this versatile camera.

Specifications

Pick-up element

1/2.8 inch CMOS image sensor

Number of effective pixels

1945(H) × 1097(V)

Unit cell size

2.9um(H) x 2.9m (V)

Imaging system

RGB primary color bayer arrangement mosaic filters on chip

Synchronizing system

Internal

Scanning system

Progressive

Output size

1920x1080, 1280x720, 640x480, 320x240

Max. frame rate

60 fps

Video compression

MJPG, YUY2

Video output

USB Video Class (Compatible)

Resolution (H)

More than 900 (Center)

Minimum illumination:

0.03 Ix F2.0 (AGC ON=36dB, Shutter=OFF)


0.07 Ix F2.0 (AGC ON=36dB, Shutter=1/7.5 sec.)

S/N

Function settings

Camera Viewer

AE mode: Fixed

1/15, 1/7.5, 1/4 sec.


1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000 sec.

AE mode: EI

1/30 - 1/8000 sec.


1/7.5 - 1/8000 sec.

White balance

ATW, MWB

AGC: On

0 - 36dB

AGC: Off

MGC

0 - 72dB (1dB step)

Gamma characteristics

Y÷USER (Level adjustable)

Noise reduction

Wide dynamic range

Lens iris

Backlight compensation

BLC

White blemish correction

Sharpness

Level Adjustable

Defog

Digital zoom

x1, x1.38, x2.25 *1 | x1,×1.2,×1.5 *2

Privacy mask

Mirror image

Freeze

Motion detection

Neg. image

Interface

USB (High Speed)

Power supply

USB +5V

Power consumption

0.75W (150mA)

Operating / Storage Temperature

-10 - +50°C / -30 - +70°C

Operating / Storage Humidity

95% RH or less (Without condensation)

Lens mount

M12 P=0.5

Standard lens

M3620BC-12 (f3.6 F2.0)

Cable length

1.0m (Max. 3.0m)

Weight

Approx. 18g

Accessories

USB cable (USB2.0 Standard-A), M12 Lens Fixing Ring

Recommended System Specifications:


CPU

Intel® Core TM i Series

RAM

2GB or larger

Others

USB2.0 Port, 1920x1080 or better resolution display

Operation Confirmed OS

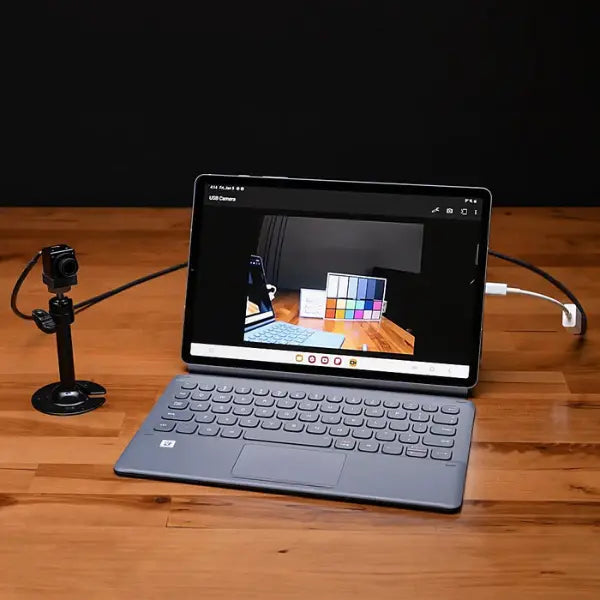

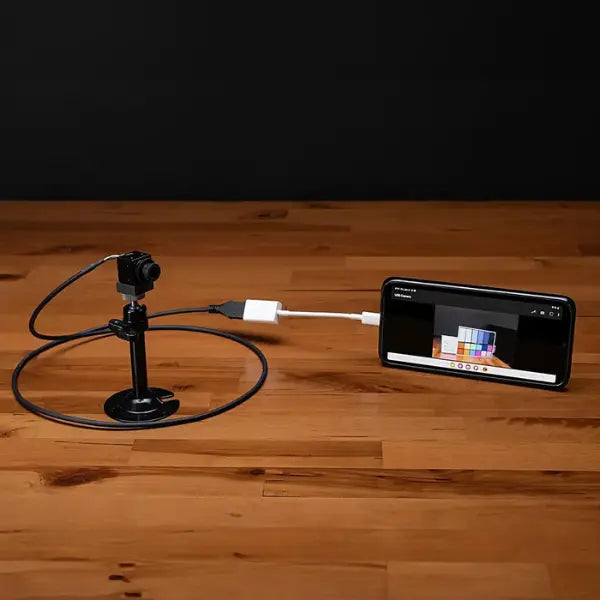

Windows 10 32bit/64bit, Windows 11, Android 4.0 or later





Downloads

Watec WAT-08U2 Miniature Ultra Low-Light Color USB Camera Specification Sheet
