Canon® Medical Camera Quick Reference Guide
Canon® Medical, Video Sensing Division (VSD) continues its legacy of supplying video camera components and technology as the solution of choice for specialized video applications in surgical imaging, clinical microscopy, aerospace, defense, and live event broadcasting applications. VSD is the video technology leader with its ultra-compact, exceptional performance, high definition (HD) and Ultra-HD 4K 3-CMOS color video cameras, and economical single-chip HD cameras.
3-chip HD Cameras | 1-chip HD Cameras | Camera Link Cameras | |||
---|---|---|---|---|---|
IK-4KH | IK-HD5 | JCS-HR5U | JCT-TF7G | JCT-TF5G | |
Model |
|
|
|
|
|
Description | UltraHD 4K | 1080p | 1080p USB | Camera Link |
Camera Link |
Head P/N CCU P/N |

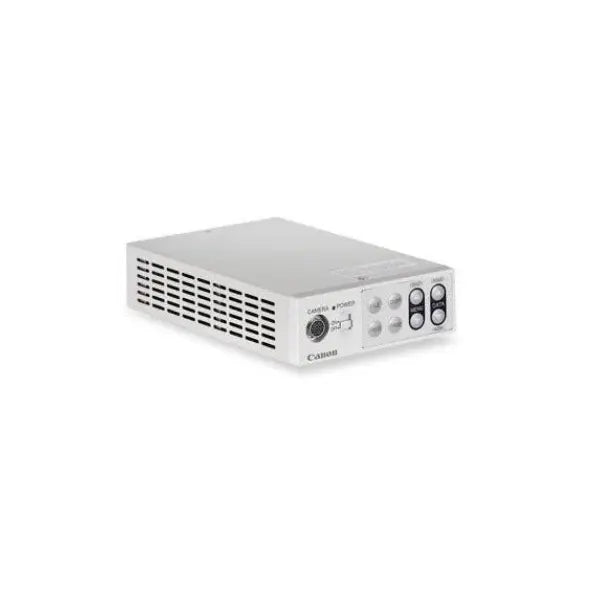

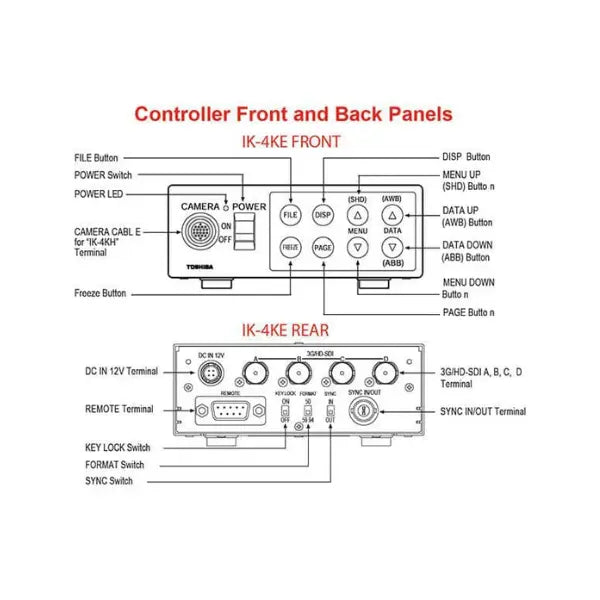

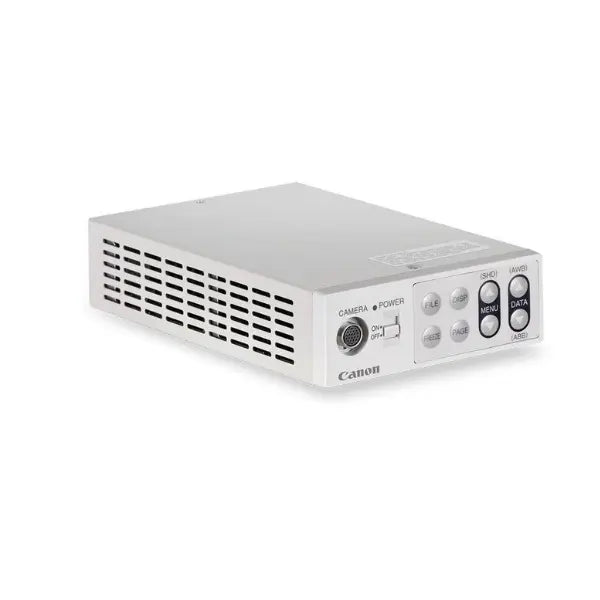

IK-4KH IK-4KE |

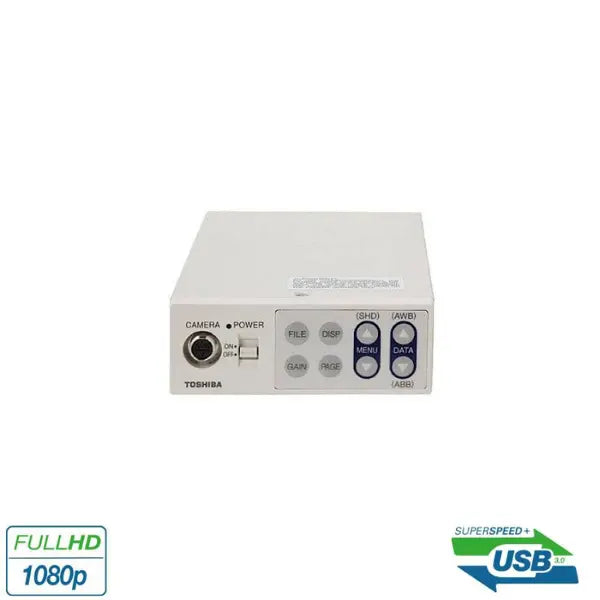

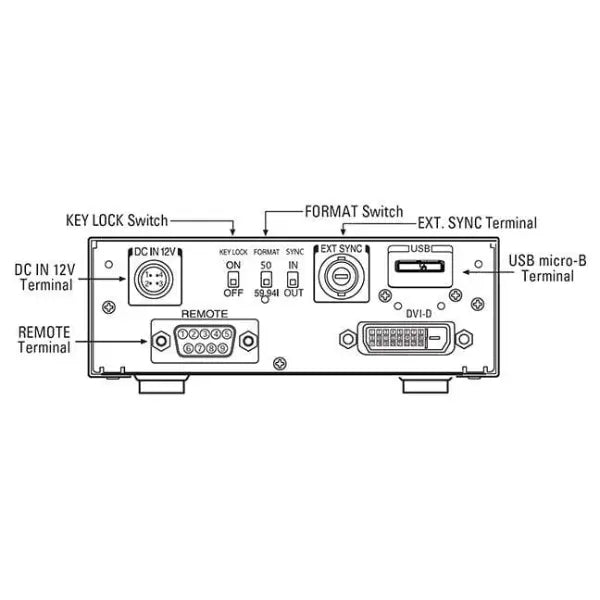

IK-HD5H IK-HD5E/U IK-HD5UM |

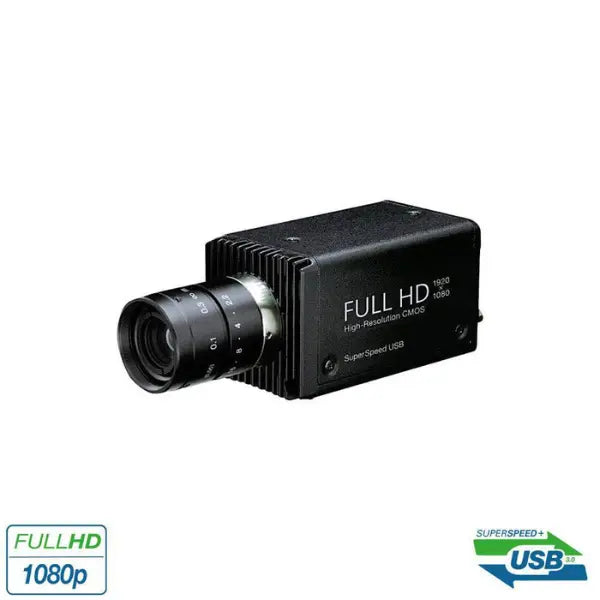

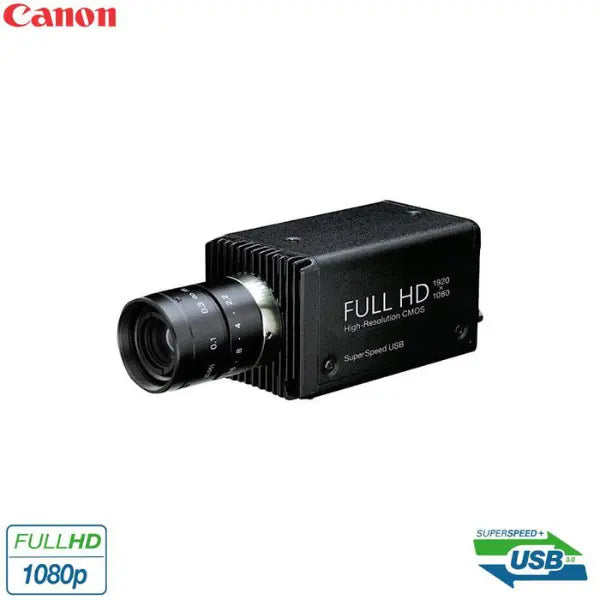

JCS-HR5U | JCT-TF7G N/A |

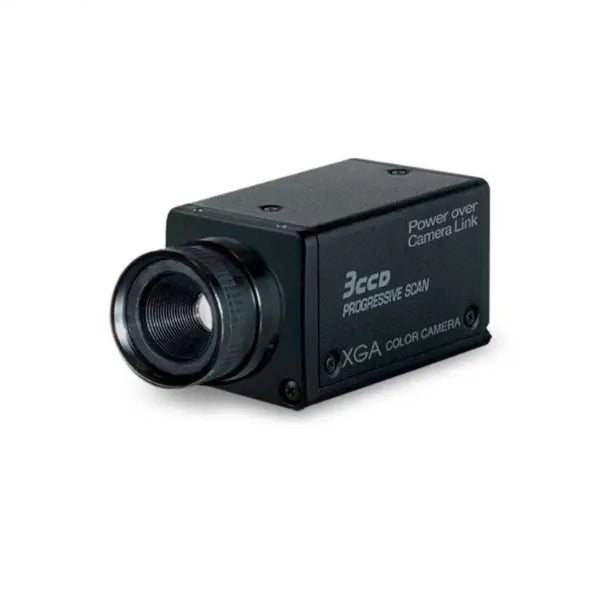

JCT-TF5G N/A |
Camera Configuration | 2 piece remote head |
2 piece remote head |
1 piece | 1 piece | 1 piece |
Sensor | 3 CMOS | 3 CMOS | 1 CMOS | 3 CMOS | 3 CMOS |
Sensor Size | 1/2.9" | 1/2.9" | 1/2.8" | 1/3" | 1/3" |
Output Matrix |
3840 x 2160 1920 x 1080 |
1920 x 1080 | 1920 x 1080 | 1034 x 779 | 659 x 494 |
Progressive Interlaced |
UltraHD progressive 1080p 1080i |
1080p 1080i |
1080p /1080i | Progressive | Progressive |
Vertical Scan Frequency |
59.94Hz 50Hz |
59.94Hz 50Hz |
59.94Hz 50Hz |
29.5 Hz Partial scan up to 90fps |
59.94 Hz Partial scan up to 250fps |
Resolution Up to H/V TVL |
1,600 4K 1,000 1080 |
1,000 | 800 | Not specified | Not specified |
Sensitivity 2000lx, 3000K |
F5.6 (59.94Hz) F6.1 (50Hz) |
F10 (59.94Hz) F11 (50Hz) |
F10 (59.94Hz) F11 (50Hz) |
F6.8 | F6.8 |
Minimum Illumination | 19.5lx (59.94Hz) 16.2lx (50Hz) F2.2, 24dB |
4.8lx (59.94Hz) Binning On 9.6lx (59.94Hz) Binning Off F2.2, 20dB |
31lx F1.4 20dB |
14lx F2.2, 18dB |
14lx F2.2, 18dB |
S/N Ratio | 58dB | 56dB | >53dB | 56dB | 62dB |
White Balance | Auto Manual |
Auto Manual |
AWB Manual |
AWB Manual |
AWB Manual |
Gain | Auto -6 to 24dB Man -6 to 24dB Off |
Auto -15 to 20dB Man -15 to 20dB Off |
Man 0 to 20dB Off 0dB |
Man 0 to 18dB Off 0dB |
Man 0 to 18dB Off 0dB |
Electronic Shutter |
Auto Manual Off 1/60 - 1/10000 |
Auto / Manual Off 1/60 - 1/10000 HD5U long exp 60fr |
Auto Manual Off-1/1000 |
AWB Manual Off - 1/100,000 |
AWB Manual Off - 1/100,000 |
Image Flip / Mirror |
Yes | Yes | Yes | - | - |
Freeze Frame | Yes | - Yes - HD5U only |
- | - | - |
RS-232 | Yes | Yes | UVC1.1 | - | - |
Color Adjustment | 12 divisions Hue, Gain Chroma |
12 divisions Hue, Gain Chroma |
12 divisions Hue, Gain Chroma | - | - |
Binning | - | Yes 2x2 | - | - | Yes |
Output Signal |
4x 3G SDI | HD5E 3GHD-SDI/DVI HD5U DVI/USB3 MicroB |
HDMI USB 3.0 |
8bit RGB CameraLink |
8bit RGB CameraLink |
Camera Head Cable Length |
3, 6, 10, 15m EXC-3HDXX |
3, 6, 10, 15m EXC-3HDXX |
N/A | N/A | N/A |
Lens Mount | C-mount | C-mount | C-mount | C-mount | C-mount |
Head Dimension W x H x D |
32.6 x 38.6 x 41 mm 1.28" x 1.52" x 1.61" 70g / 2.5oz |
32.6 x 38.6 x 41 mm 1.28" x 1.52" x 1.61" 70g / 2.5oz |
1.75 x 1.75 x 3.0" 170g / 0.375lbs |
44 x 44 x 78mm 1.73 x 1.73 x 3.07" 158g / 4.3oz |
44 x 44 x 78mm 1.73 x 1.73 x 3.07" 158g / 4.3oz |
CCU Dimension W x H x D |
110 x 40 x 196 mm 4.33" x 1.58" x 7.72" 800g / 1.76 lbs. |
110 x 40 x 186 mm 4.33" x 1.58" x 7.32" 600g / 1.32 lbs. |
N/A | N/A | N/A |
Power | 12.VDC ±10% 13.8 W |
12.VDC ±10% 10.3 W |
12.VDC ±10% 4.5 W |
12.VDC ±10% 3.1 W PoCL or DC |
12.VDC ±10% 3.4 W PoCL or DC |
