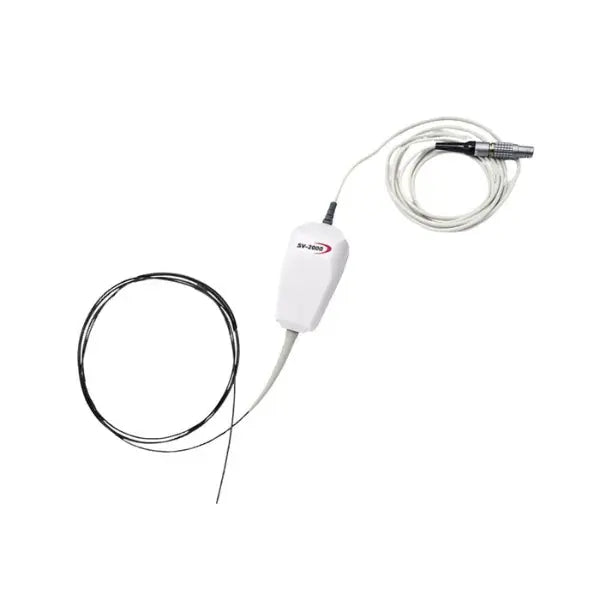

The Canon Medical SV-2000 0.89 mm x 1.2 m Video Probe supports medical device inspection with some of the smallest diameter CMOS video borescopes on the market. At 0.89 mm diameter, an astonishing 120-degree field-of-view image, fiber optic lighting, and advanced image processing, this SV-2000 video probe is a leading inspection tool for finely-machined, manufactured medical components. in delicate catheters, medical tubing, and pacemaker components.
Specifications
| EM13078 - SV-2H03N Probe | |
| Scope assembly diameter | 0.89 mm |
| Scope sheath length tip-to-handle mount | 1.2 m |
| Cable length handle mount to CCU | 2.0 m |
| Total cable and sheath length, tip to CCU | 3.2 m |
| LED location | Handle mount |
| Illumination | LED coupled glass fiber bundle |
| Sensor Type | CMOS Progressive |
| Sensor Size (optical format) | 0.64 x 0.64 (1/36") |
| Pixel matrix | 400 x 400 |
| Electronic shutter | Rolling |
| FOV - field of view | 120° |
| Depth of focus | 3 to 30 mm |
| Magnification (depends on viewing distance) | up to 12x |
| F-number | f 2.8 |
| Focal length | 0.175 mm |
| Water resistance rating | IPX7 |
| Camera head/handle mounting | 1/4 - 20 threaded socket |
| Handle dimensions | 85 x 44 x 39 mm (3.3 x 1.7 x 1.5") |
