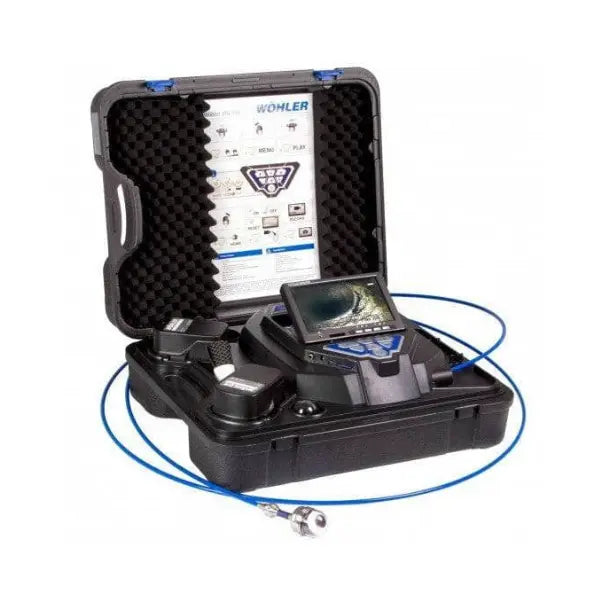

Wohler VIS 350 Inspection Camera with Integral 1.5" Camera - 7354

This advanced, affordable camera system sheds light on the dark. The articulating eye of the VIS 350 1.5-inch integral camera head lets you take a close look at pipes, air ducts, chimneys, vents, cracks, welding seams, gaskets, and manholes. The super bright wide side screen TFT monitor provides brilliant picture quality.

The waterproof camera head measures 1.5 inches in outer diameter, giving you an inside view into drainage pipes, air ducts, and intermediate ceilings.

The innovative design provides super bright lighting and simple operation, all in one heavy-duty carrying case. A crystal clear picture appears on the widescreen TFT monitor, so you identify problems before they occur.

The Wohler VIS 350 Advanced Camera System comes standard with a built-in RCA video output and an integrated SD card for documentation. The state-of-the-art NiMH battery packs provide 1.5 hours of continuous operation. The power supply offers simultaneous operation and battery recharging.

Specifications

Monitor

Size	7" x 4.5" x 1.3"

TFT size	7"/ 16:9 format

Video out	FBAS

Weight	1 lbs

Power Supply	Space for 2 rechargeable batteries, each 12 V or via power pack
Operating time	Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)

Pan&tilt Ø 40 mm color camera head

Type	1/3" COLOR CMOS

Pixels	656 x 492 (NTSC)

Light sensitivity	0.5 Lux

Lens	f = 0.09", F = 2.5

Viewing angle	115°

Light source	12 white LEDs

Degree of protection	Waterproof to IP 67

Dimensions	1 1/2" dia x 2"

Operating temperature	32...104 °F, RH 95 % MAX

Storage temperature	-4...122 °F, RH 95 % MAX

Locator transmitter

Transmission frequency

8.9 kHz

Push rod

Length	100 ft.

Diameter	0.26"

Plastic case

Size	20" x 17" x 7"

Weight	18 lbs.

Distance measurement

Wohler VIS 350 / VIS 300

Electronic meter counter

Locator receiver

Display

Graphic visualization of transmitted position

Output impedance

Headphones	32 Ohm

Power supply	12 V MiMH battery (rechargeable)

Operating temperature	32...104 °F

Storage temperature	14 °F...104 °F

Weight	1.3 lbs

Dimensions	13" x 6" x 3" cm (l x w x h)

Digital Recording

Recording	4 GB SD-Card (2.5 h recording capacity)

Interface	Mini USB port

Shipping

Shipping Dimensions	20" x 18" x 10"

Shipping Weight	18 lbs
