These quintessential products were widely used for remote visual inspection (RVI) applications. Many are discontinued, but contact us for avalibility on form-factor replacements.
Contact UsNTSC/PAL Micro Color Cameras and CCU's
ELMO and Toshiba are legacy industrial camera brands that enabled InterTest to solve countless applications over multiple decades.
For decades these charged-coupled device (CCD) micro cameras were the the remote visual inspection (RVI) camera standard. InterTest used these products regularly in aerospace, welding/fabrication, and power generation industries for in-process monitoring and RVI applications.

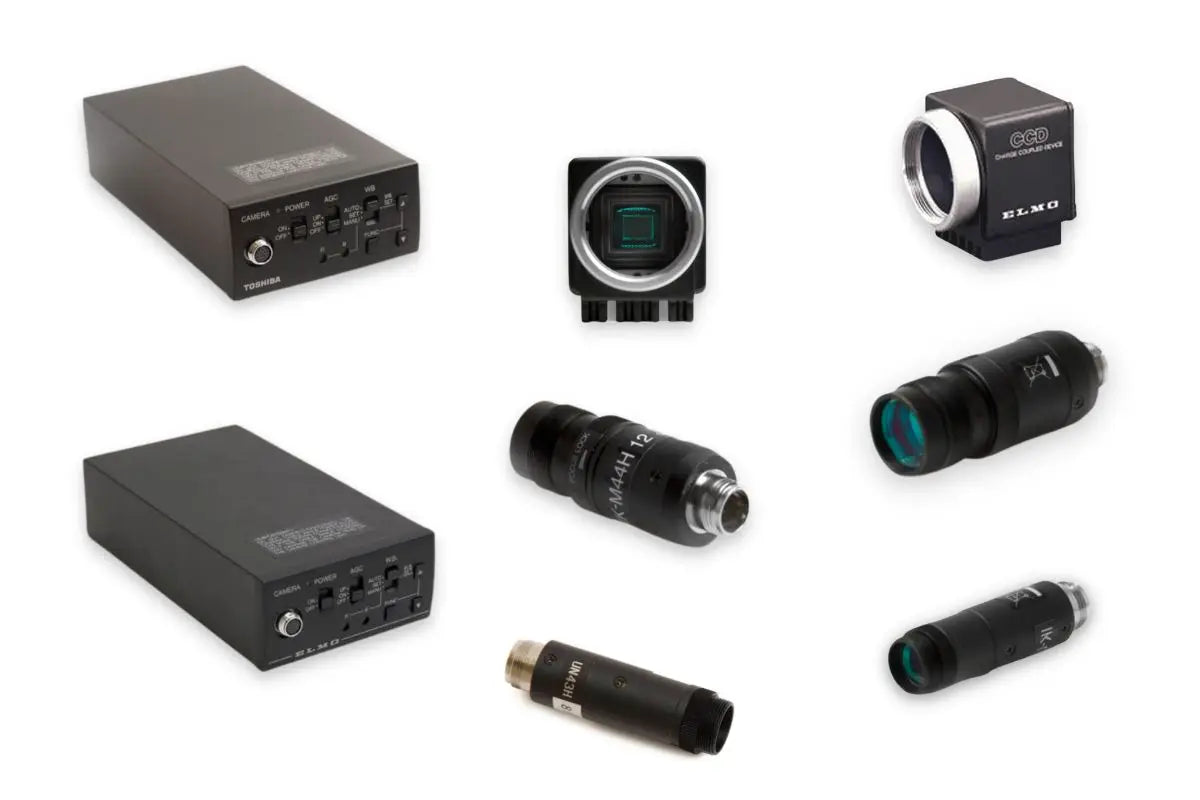

ELMO/Toshiba Legacy Cameras and CCUs
The following is a list of ELMO and Toshiba legacy part numbers. Most parts are discontinued, but we may have limited stock for certain part numbers.
1/2" CCD C-mount |
||
| Brand | ELMO | Toshiba |
| InterTest EM# | EM12077 | EM12189 |
| Model # | CN43H | IK-C44H |
| Signal | NTSC | |
| Sensor | 1/2" CCD | |
| Camera Dimensions | 32 x 28 x 33.8 mm | |
19 mm Split-Head |
||
| Brand | ELMO | |
| InterTest EM# | EM13398 | EM13456 |
| Model # | MN400 | MN450 |
| Signal | NTSC | PAL |
| Sensor | 1/2" CCD | |
| Camera Dimensions | 19 mm Ø x 80 mm | |
17 mm Color Micro Camera |
||||
| Brand | ELMO | Toshiba | ||
| InterTest EM# | EM12078 | EM12121 | EM12190 | EM12193 |
| Model # | MN43H | MP50H | IK-M44H | IK-M51H |
| Signal | NTSC | PAL | NTSC | PAL |
| Sensor | 1/2" CCD | 1/2" CCD | ||
| Camera Dimensions | 17 mm Ø x 38.9 mm | 17 mm Ø x 38.9 mm | ||
12 mm Color Micro Camera |
||||
| Brand | ELMO | Toshiba | ||
| InterTest EM# | EM12149 | EM12150 | EM12191 | EM12315 |
| Model # | UN43H | UP50H | IK-UM44H | IK-UM51H |
| Signal | NTSC | PAL | NTSC | PAL |
| Sensor | 1/3" CCD | 1/3" CCD | ||
| Camera Dimensions | 12 mm Ø x 36 mm | 12 mm Ø x 36 mm | ||
Camera Control Unit (CCU) |
||||
| Brand | ELMO | Toshiba | ||
| InterTest EM# | EM12076 | EM12122 | EM12188 | EM12192 |
| Model # | CC431E | CC501 | IK-CU44A | IK-CU51 |
| Signal | NTSC | PAL | NTSC | PAL |
| CCU Dimensions | 40 x 85 x 156 mm | 40 x 85 x 156 mm | ||
Micro Color Camera Lenses & Cables
ELMO and Toshiba are legacy industrial camera brands that enabled InterTest to solve countless applications over multiple decades.
These lenses and cables are still used in our products, and inudustries like aerospace, welding/manufacturing, and power generation , for remote visual inspection (RVI) applications.

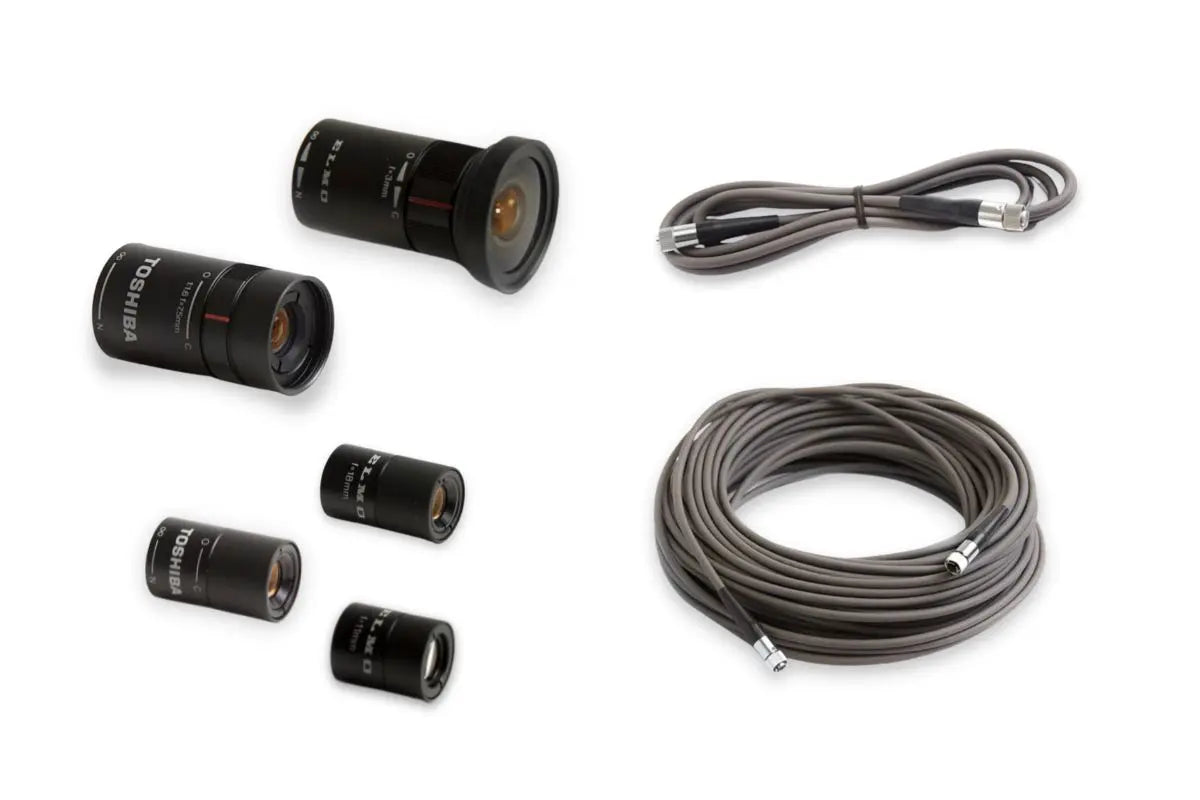

ELMO/Toshiba Legacy Lenses & Cables
The following is a list of ELMO and Toshiba legacy part numbers. Most parts are discontinued, but we may have limited stock for certain part numbers. Call or Contact Us for availability.
Contact Us
17 mm Camera Lenses |
||||||
| Brand | ELMO | |||||
| Focal Length | 3mm | 4mm | 7.5mm | 15mm | 24mm | 36mm |
| InterTest EM# | EM10180 | EM10181 | EM10182 | EM10183 | EM10186 | EM10190 |
| Model # | T183 | T204D | T1675F | T2015D | T3124 | T4536 |
| Model # | 8771 | 9264 | 9250 | 9265 | 9266 | 9819 |
| Brand | Toshiba | |||||
| Focal Length | 3mm | 4.5mm | 7.5mm | 15mm | 24mm | |
| InterTest EM# | EM10193 | EM10194 | EM10195 | EM10196 | EM10197 | |
| Model # | JKL-03M | JKL-04M2 | JKL-7.5M | JKL-15M | JKL-24M2 | |
12 mm Camera Lenses |
||||||
| Brand | ELMO | |||||
| Focal Length | 3mm | 5.5mm | 11mm | 18mm | 30mm | |
| InterTest EM# | EM11110 | EM11111 | EM11112 | EM11113 | EM66185 | |
| Model # | TT203 | TT1655 | TT2011 | TT3318 | N/A | |
| Model # | 9289 | 9283 | 9288 | 9295 | N/A | |
| Brand | Toshiba | |||||
| Focal Length | 3mm | 5.5mm | 7.5mm | 18mm | ||
| InterTest EM# | N/A | EM10102 | N/A | EM10104 | ||
| Model # | JKL-03U | JKL-55U | JKL-11U | JKL-18U | ||
Micro Camera Cables |
||||||
| Brand | ELMO | |||||
| Length | 2 m | 3 m | 5 m | 12 m | 20 m | 30 m |
| InterTest EM# | EM10020 | EM10021 | EM10022 | EM10023 | EM10024 | EM10025 |
| Model # | EMC-02H | EMC-03H | EMC-05H | EMC-12H | EMC-20H | EMC-30H |
| Model # | 9833 | 9833-1 | 9833-2 | 9833-3 | 9833-4 | 9833-5 |
| Brand | Toshiba | |||||
| Length | 2 m | 3 m | 5 m | 12 m | 20 m | 30 m |
| InterTest EM# | EM10014 | EM10015 | EM10016 | EM10017 | EM10018 | EM10019 |
| Model # | EXC-4302 | EXC-4303 | EXC-4305 | EXC-4312 | EXC-4320 | EXC-4330 |
| Replacement EM# | EM18787 | EM18788 | EM18789 | EM18790 | EM18791 | EM18792 |
