Canon Medical JCS-HR5U HDMI/USB 3.0 HD Video Camera

SKU: EM13645 MFG: JCS-HR5U

• 1/2.8” progressive-scan color CMOS sensor
• HDMI 1080p / 1080i output at 59.94Hz
• USB 3.0 1080p output at 59.94 fps maximum
• Simultaneous live view and USB output

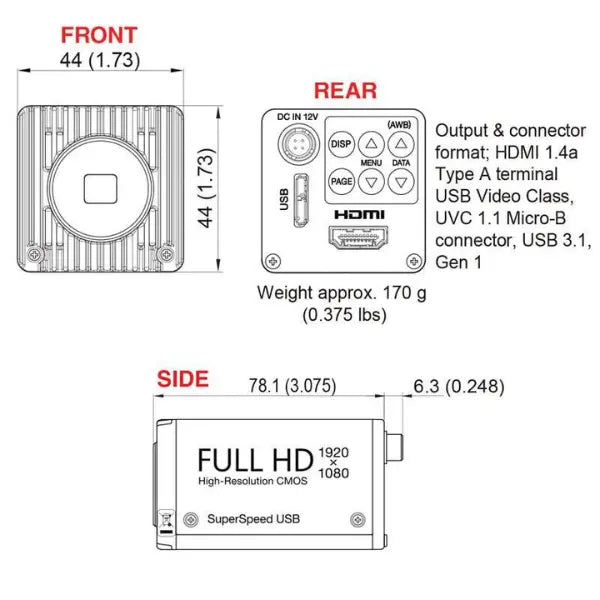

• Ultra-compact (approx 1.75” x 1.75” x 3”)
• C-mount lens mount
• Digital crosshair lines

Details

Canon Medical JCS-HR5U HDMI/USB 3.0 HD Video Camera

The Canon Medical JCS-HR5U ultra-compact camera represents an important advancement in clinical microscopy imaging applications. The ultra-compact, full HD (1920 x 1080p), video camera features both HDMI and SuperSpeed USB 3.0 image outputs for simultaneous, real-time live viewing from a monitor, plus high-resolution image capture to a computer.

It is optimal for color documentation systems integration, in the fields of bio imaging, scientific imaging, and live tissue imaging.

The small profile, 1.75” x 1.75” x 3” camera integrates easily with any clinical microscope using a C-mount lens adapter. Incorporating the latest CMOS sensor technology and advanced image processing provides exceptional sensitivity and color accuracy for a real-time video solution

Specifications

Image Sensor

 CMOS 1/2.8" sensor (progressive scan, rolling shutter)

Lens Mount

C-mount

Image output

HDMI 1.4a 4:4:4 : 1920 x 1080 / 59.94Hz

USB 3.0 (UVC1.1 compliant YUV4:2:2 : USB 3.1 Gen 1)

1920 x 1080 / 59.94fps (USB 3.0 mode theoretical maximum)

1920 x 1080 / 10fps (USB 2.0 mode theoretical maximum)

Sensitivity

F10 standard (2000lx, 3100K, gain OFF, gamma OFF, 59.94Hz);

F11 standard (2000lx, 3100K, gain OFF, gamma OFF, 50Hz)

Minimum illumination

4lx standard (F1.4, 3100K, gain +20dB, gamma OFF, 59.94Hz)

3.3lx standard (F1.4, 3100K, gain +20dB, gamma OFF, 50Hz)

Power requirements

DC12V± 10%, power consumption approx. 4.5W

Environmental

0°C ~ + 40°C (32°F ~ +104°F) operating

-20°C ~ + 60°C (-4°F ~ +140°F) non-operating

Humidity 90° or less non-condensing

Gain

AUTO / MANUAL : 0 ~ 20dB / OFF

White balance

AWB (Automatic White Balance) / MANUAL

Shutter

AUTO / MANUAL (OFF ~ 1/10000s)

Image optimization function

MATRIX color correction (12 colors), gamma correction,

detail gain, master pedestal chroma gain setting, knee correction

Camera Control

UVC 1.1

Special function

Flip / mirror, digital crosshair lines

Downloads

Specification Sheet
