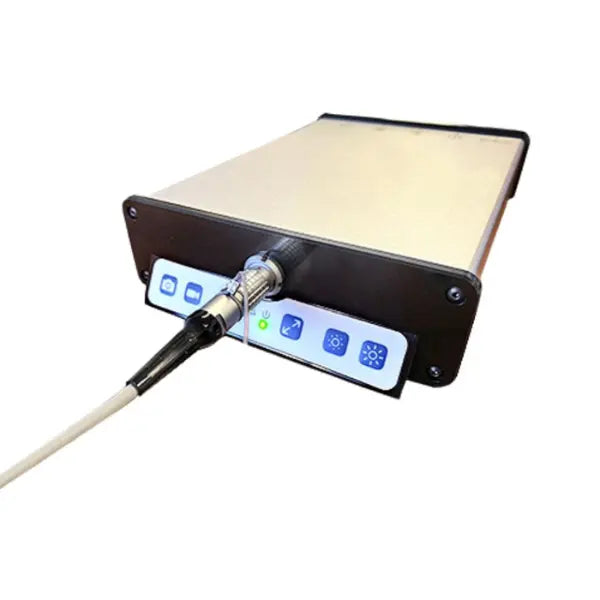

Canon Medical SV-2000 Camera Control Unit - SV-2D01N

Cannon Medical Vendor Logo SKU: EM13075SV-2D01N

• Video probe control unit for the Canon SV-2000
• Simultaneous HDMI/USB3.0 video output
• Monitor not included



Canon Medical SV-2000 Camera Control Unit - SV-2D01N

The Canon Medical SV-2000 SV-2D01N Camera Control Unit controls and processes video output for the Canon SV-2000 Video Borescope System. Features include simultaneous HDMI and USB 3.0 video output at 30 fps, capturing .PNG stills and MPEG4 video to USB media, and auto/manual brightness and white balance controls.

The SV-2000 video probe is a leading inspection tool for finely-machined, manufactured medical components. in delicate catheters, medical tubing, and pacemaker components.


Monitor not included in this configuration.



EM13075 - SV-2D01N CCU
Display External (not included)
Touchscreen format N/A
Output Simultaneous HDMI, USB 3.0 (UVC)
Output frame rate 30 fps
PC required for use No
Recorded image formats .PNG stills, MPEG4 clips
Image record Image capture to USB media
Key functions Auto/Manual brightness white balance, calibration
Water resistance rating None
CCU dimensions 140 x 200 x 43 mm (5.5 x 7.9 x 1.7")
CCU weight 0.95 kg (2.1 lbs)
Mounting N/A
Power input 12V DC, 0.6A
Environmental Operating temperature: 10 ° to 35 °C Humidity: up to 75% non-condensing Storage temperature: -20 ° to 70 °C
Included accessories 12V DC power adapter 6’ HDMI cable 6’ USB 3.0 cable type A to type B USB media FAT32 16GB minimum


Product Information Sheet
