Canon IK-4KH 4K 3-CMOS Camera Head

Cannon Medical Vendor Logo SKU: EM18813MFG: IK-4KH

• (3840 x 2160p) UltraHD 4K resolution
• Ultra-compact
• 3G/HD-SDI output for maximum signal fidelity
• 12-channel color adjustment to achieve exceptional color accuracy and control
• Gen-lock for 3D and multi-camera use
• Remote control via RS-232
• C-mount lens mount

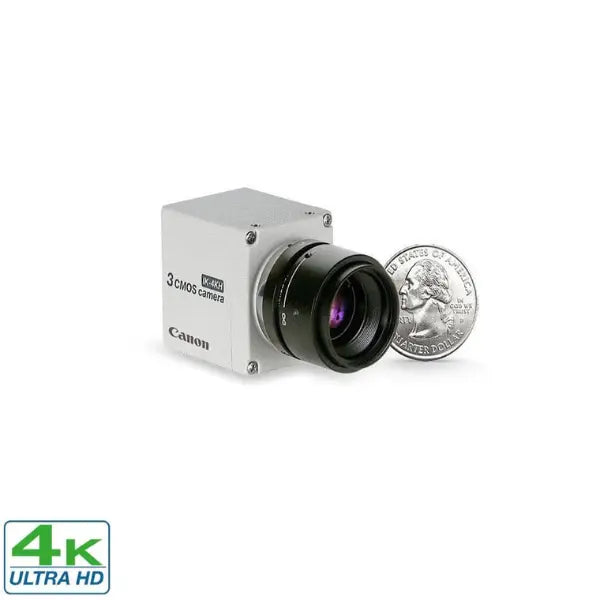

Canon IK-4KH 4K 3-CMOS Camera Head

The Canon Medical IK-4KH 3-CMOS camera head is a component of the Canon Medical IK-4K Camera System.  The compact, 3-chip CMOS, 4K UltraHD (3840 x 2160p) provides extra sharp detail, enhancing many video applications from scientific imaging, life sciences, and defense to professional live-event broadcasting.  The IK-4K displays extraordinary color fidelity with up to 1600 TV lines of resolution. The 3G-HD-SDI video output is switchable between 4K, 1080p, and 1080i formats to configure to any HD display and application.

The IK-4KH 3-CMOS Camera head, cable, and Canon Medical IK-4KE Camera Control Unit are commonly used in medical imaging, remote diagnostics, and broadcasting applications.


Image Sensor

3-CMOS, 1/2.9", progressive

Output Matrix

Horizontal: 3840, Vertical: 2160 UHD 4K mode

Horizontal: 1920, Vertical: 1080 HD 1080p/1080i

Output Resolution H/V

1600 TV lines standard UltraHD 4K mode

1000 TV lines or more 1080p/1080i modes


F5.6 standard (59.94 Hz setting)

F6.1 standard (50 Hz setting)

(at 2000 lx, 3000K)

Minimum Illumination

19.5 lx (59.94 Hz setting)

16.2 lx (50 Hz setting)

at F2.2, 24 dB

S/N Ratio

58 dB standard

AGC: OFF, Gamma: OFF, Enhance: OFF

Color matrix: OFF, Color temp: 5600K

Operation Temperature

0°C to 40°C / 32°F to 104°F

Operation Humidity

Less than 90% (non-condensing)


Approx. 70 g (2.5 oz)

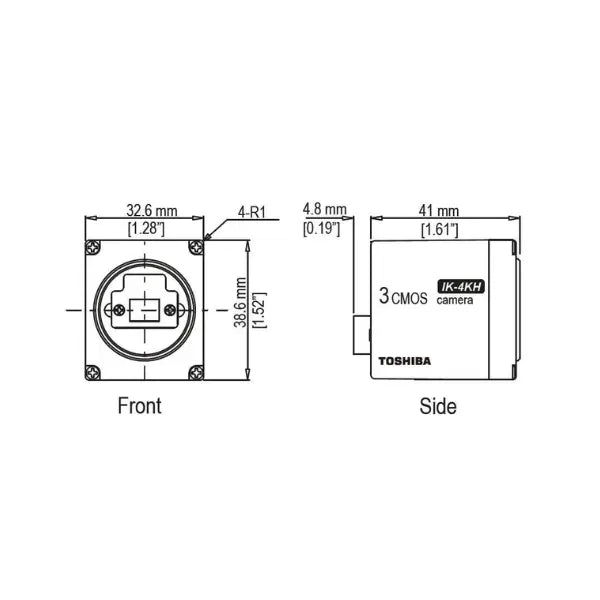

W: 32.6 mm H: 38.6 mm D: 41 mm

(1.28" x 1.52" x 1.61")

Protruding portion is not included



IK-4KH Camera Head Manual
