Canon Medical IK-4K Ultra HD Camera System

Cannon Medical Vendor Logo SKU: bundle_sku-4343MFG: IK-4KH

• (3840 x 2160p) UltraHD 4K resolution
• Ultra-compact
• 3G/HD-SDI output for maximum signal fidelity
• 12-channel color adjustment to achieve exceptional color accuracy and control
• Gen-lock for 3D and multi-camera use
• Remote control via RS-232
• C-mount lens mount

Choose a Camera

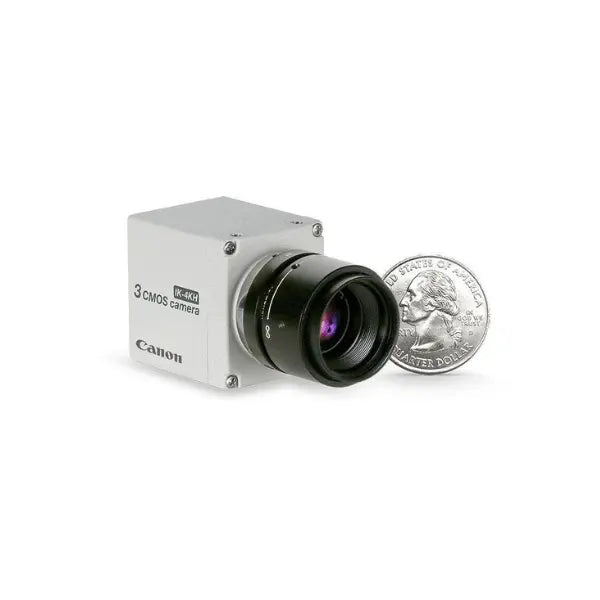

Canon IK-4KH 4K 3-CMOS Camera Head
Canon IK-4KH 4K 3-CMOS Camera Head

Choose a Lens

Fujinon TF2.8DA8 2.8mm C-Mount Lens for 3CCD Remote Head Color Cameras
Fujinon TF2.8DA8 2.8mm C-Mount Lens for 3CCD Remote Head Color Cameras
Fujinon TF4DA-8 4mm Wide C-Mount Lens for 3-CCD Industrial Cameras
Fujinon TF4DA-8 4mm Wide C-Mount Lens for 3-CCD Industrial Cameras
Fujinon TF8DA-8B 8 mm C-Mount Lens for Industrial Cameras
Fujinon TF8DA-8B 8 mm C-Mount Lens for Industrial Cameras
Fujinon TF15DA-8, 15mm C-Mount Lens
Fujinon TF15DA-8, 15mm C-Mount Lens

Choose a Cable

Canon Medical EXC-3HD18 .045 Meter Short Cable
Canon Medical EXC-3HD18 .045 Meter Short Cable
Canon Medical EXC-3HD03 3 Meter Cable
Canon Medical EXC-3HD03 3 Meter Cable
Canon Medical EXC-3HD06 6 Meter Cable
Canon Medical EXC-3HD06 6 Meter Cable
Canon Medical EXC-3HD10 10 Meter Cable
Canon Medical EXC-3HD10 10 Meter Cable
Canon Medical EXC-3HD15 15 Meter Cable
Canon Medical EXC-3HD15 15 Meter Cable

Choose a Camera Control Unit

Canon IK-4KE Control Unit For 4K Camera
Canon IK-4KE Control Unit For 4K Camera

Accessories

AC-Y430A 12VDC Power Supply for CCU
AC-Y430A 12VDC Power Supply for CCU

Description

Details

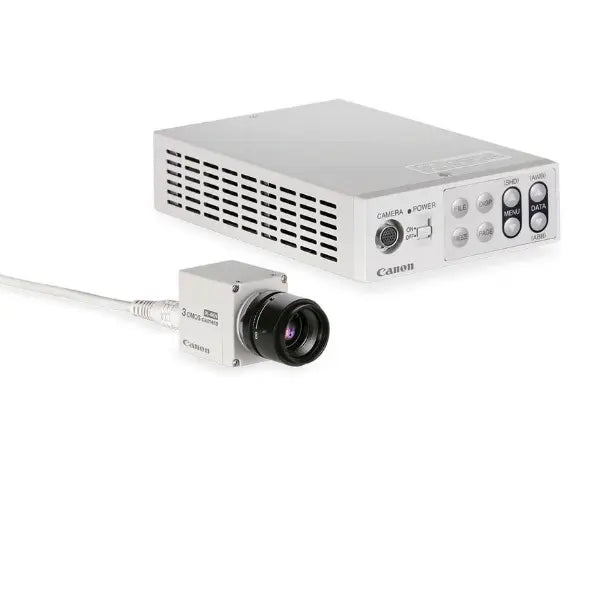

Canon Medical IK-4K Ultra HD Camera System

The Canon Medical IK-4K Camera System is a compact, 3-chip CMOS, 4K UltraHD (3840 x 2160p) imaging system with one of the smallest 3-chip UltraHD cameras on the market. The IK-4K offers improved resolution and amazingly sharp details that can enhance many video applications, from scientific imaging, life sciences, and defense to professional live-event broadcasting. It is ideal when space is limited, and 4K images are required.

With world-class innovation, the IK-4K camera incorporates the latest CMOS sensors, proprietary prism technology, and advanced image processing to provide unprecedented color accuracy, incredible resolution, and the world’s smallest 3-chip package.

This remote-head powerhouse 4K Camera will adapt to many color-critical applications, including broadcast and defense imaging.

Specifications

Image Sensor

3-CMOS, 1/2.9", progressive

Output Matrix

Horizontal: 3840, Vertical : 2160 UHD 4K mode

Horizontal: 1920, Vertical: 1080 HD 1080p/1080i

Output Resolution H/V

1600 TV lines standard UltraHD 4K mode

1000 TV lines or more 1080p/1080i modes

Sensitivity

F5.6 standard (59.94 Hz setting)

F6.1 standard (50 Hz setting)

(at 2000 lx, 3000K)

Minimum Illumination

19.5 lx (59.94 Hz setting)

16.2 lx (50 Hz setting)

at F2.2, 24 dB

S/N Ratio

58 dB standard

AGC: OFF, Gamma: OFF, Enhance: OFF

Color matrix: OFF, Color temp: 5600K

Operation Temperature

0°C to 40°C / 32°F to 104°F

Operation Humidity

Less than 90% (non-condensing)

Weight

Approx. 70 g (2.5 oz)

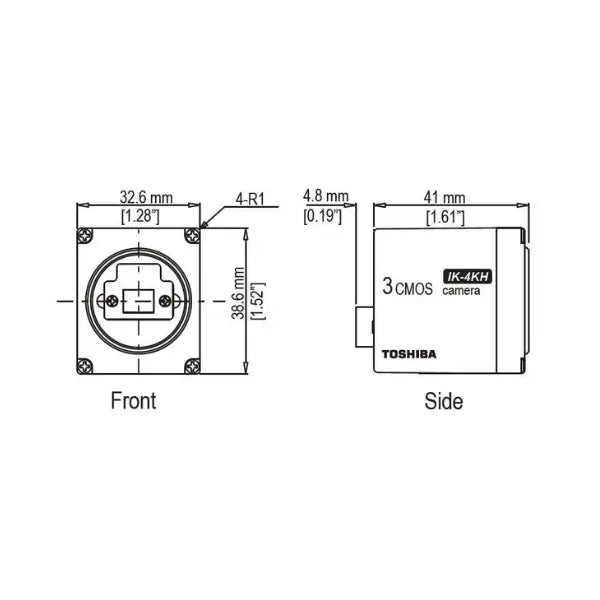

Dimensions

W: 32.6 mm H: 38.6 mm D: 41 mm

(1.28" x 1.52" x 1.61")

Protruding portion is not included

Power Supply

12V DC±10%

Power Consumption

13.8 W

Scanning System

Progressive / Interlaced (Selectable)

Scan Frequency

H: 67.433 kHz, V: 59.94 Hz :1080p / 59.94 Hz

4K / 59.94 Hz 4 division output

H: 56.250 kHz, V: 50 Hz :1080p / 50 Hz

4K / 59.94 Hz 4 division output

H: 33.716 kHz, V: 59.94 Hz : 1080i / 59.94 Hz

H: 28.125 kHz, V: 50 Hz : 1080i / 50 Hz

Operating Temperature

0°C to 40°C / 32°F to 104°F

Operating Humidity

Less than 90% (non-condensing)

Weight

Approx. 800 g (1.76 lbs.)

Dimensions

W: 110 mm, H: 40 mm, D: 196 mm

(4.33" x 1.58" x 7.72")

Scene Files

5 User-configurable scene files

White Balance

Auto / Manual (Selectable)

Gain

Auto (-6 dB to 24 dB); Manual (-6 dB to 24 dB), OFF

Output Signal

4x 3G/HD-SDI

Electronic Shutter

Auto / Manual / OFF 1/60 - 1/10,000
