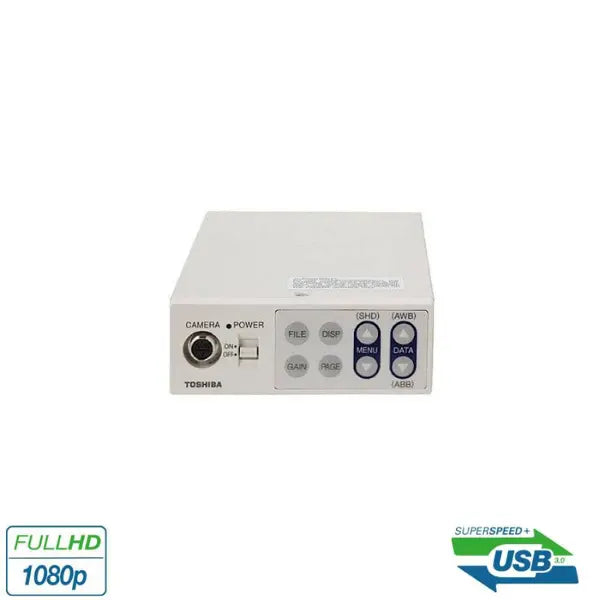

Canon Medical IK-HD5UM USB 3.0 DVI-D Camera Control Unit

Cannon Medical Vendor Logo SKU: EM19943MFG: IK-HD5UM

• USB 3.0 and DVI-D outputs
• 1920 x 1080 at 59.94fps via USB3.0 or 10fps in USB2.0
• Addition of front panel freeze frame
• Long exposure mode up to 60 frames (1 second)



Canon Medical IK-HD5UM USB 3.0 DVI-D Camera Control Unit

The IK-HD5UM configuration features DVI-D and USB 3.0 outputs and is adapted for use in various non-patient contact, non-diagnostic imaging applications including surgical microscopy, surgical light camera integration, or surgical room monitoring and surveillance.

The Camera Controller is a unique addition to the Canon Medical IK-HD5 Camera System, allowing for integration into OEM Medical Products.

Three-chip performance provides exceptional sensitivity, accurate color reproduction, and sharp details through Canon’s proprietary prism block technology.

The camera provides real-time, incredibly detailed reference images for education, documentation, and in-room surgical staff. The IK-HD5UM offers improved sensitivity in near IR spectrums, supporting applications that use fluorescing agents such as ICG.


Power Supply

12V DC±10%

Power Consumption

11.6 W

Scanning System

Progressive / Interlaced (Selectable)

Scan Frequency

H: 67.433 kHz, V:59.94 Hz :1080p / 59.94 Hz H: 56.250 kHz, V:50 Hz :1080p / 50 Hz H: 33.716 kHz, V:59.94 Hz : 1080i / 59.94 Hz H: 28.125 kHz, V:50 Hz : 1080i / 50 Hz

Operating Temperature

0 ̊C to 40 ̊C / 32 ̊F to 104 ̊F

Operating Humidity

Less than 90% (non-condensing)


Approx. 850 g (1.9 lbs.)


W: 110mm, H: 40mm, D: 186mm (4.33” x 1.58” x 7.32”)

Scene Files

5 User-configurable scene files

White Balance

Auto / Manual (Selectable)


Auto (-15dB to 20dB); Manual (-15dB to 20dB), OFF

Output Signal

DVI-D / USB Micro-B
1920 x 1080/59.94fps max. USB3.0
1920 x 1080 10fps max. USB2.0

Electronic Shutter

Auto / Manual (OFF 1/60 - 1/10,000) / Syncro Scan




Canon Medical IK-HD5UM USB 3.0 DVI-D Camera Control Unit Data Sheet
