Canon Medical SV-2000 Video Borescope Inspection System
The Canon Medical SV-2000 Video Borescope Inspection System supports medical device inspection with one of the smallest-diameter CMOS video borescopes on the market.

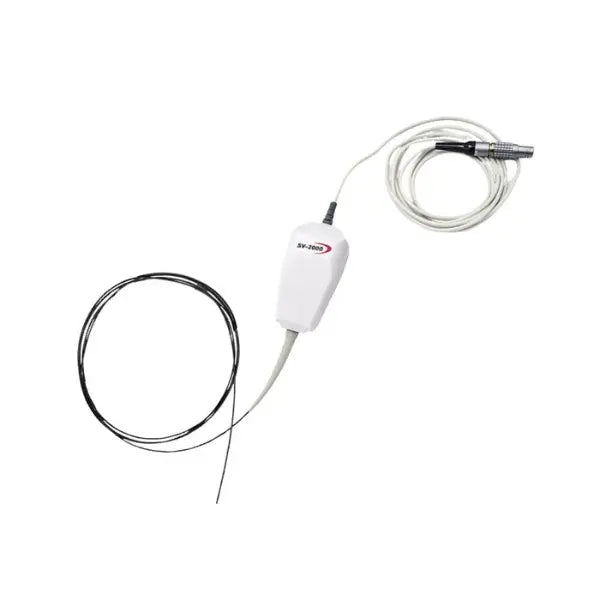

The Canon Medical SV-2000 delivers full-color, high-resolution video from a 400 x 400 pixel CMOS sensor in diameters of 0.89, 1.05, and 1.6 mm. An astonishing 120-degree field-of-view image, fiber optic lighting, and advanced image processing make the SV-2000 a leading inspection tool for finely machined, manufactured medical components. Achieve quality assurance in delicate catheters, medical tubing, and pacemaker components.
The SV-2000 control unit comes in 2 configurations:

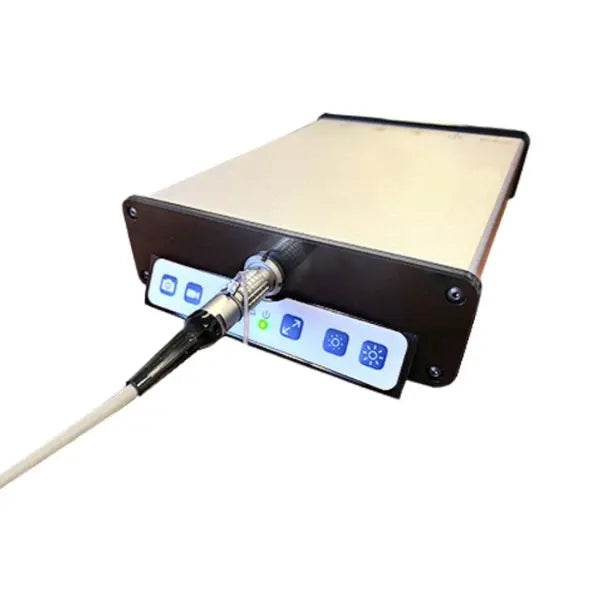

- A tablet-based 10-inch touchscreen display and control unit
-
A benchtop control unit with video output via USB 3.0 or HDMI (monitor not included)
The SV-2000 has image recording capabilities, integrated video control software, and complete data management review and playback features. A USB 3.0 and HDMI video allow users to switch outputs between most computers and monitors.
The MagicLight software feature allows the user to touch a portion of the screen during a live inspection for automatic brightness correction.
The SV-2000 is not intended for medical use.
Specifications
| EM18418 - SV-2H03X Probe | |
| Scope assembly diameter | 0.89 mm |
| Scope sheath length tip-to-handle mount | 1.9 m |
| Cable length handle mount to CCU | 2.0 m |
| Total cable and sheath length, tip to CCU | 3.9 m |
| LED location | Handle mount |
| Illumination | LED-coupled glass fiber bundle |
| Sensor Type | CMOS Progressive |
| Sensor Size (optical format) | 0.64 x 0.64 (1/36") |
| Pixel matrix | 400 x 400 |
| Electronic shutter | Rolling |
| FOV - field of view | 120° |
| Depth of focus | 3 to 30 mm |
| Magnification (depends on viewing distance) | up to 12x |
| F-number | f 2.8 |
| Focal length | 0.175 mm |
| Water resistance rating | IPX7 |
| Camera head/handle mounting | 1/4 - 20 threaded socket |
| Handle dimensions | 85 x 44 x 39 mm (3.3 x 1.7 x 1.5") |
| EM13076 - SV-2H01N Probe | |
| Scope assembly diameter |
1.6 mm |
| Scope sheath length tip-to-handle mount |
1.9 m |
| Cable length handle mount to CCU |
2.0 m |
| Total cable and sheath length, tip to CCU |
3.9 m |
| LED location |
Handle mount |
| Illumination | LED-coupled glass fiber bundle |
| Sensor Type | CMOS Progressive |
| Sensor Size (optical format) | 1.1 x 1.1 (1/18") |
| Pixel matrix | 400 x 400 |
| Electronic shutter | Rolling |
| FOV - field of view | 120° |
| Depth of focus | 5 to 50 mm |
| Magnification (depends on viewing distance) | up to 12x |
| F-number | f 5.0 |
| Focal length | 0.418 mm |
| Water resistance rating | IPX7 |
| Camera head/handle mounting | 1/4 - 20 threaded socket |
| Handle dimensions | 85 x 44 x 39 mm (3.3 x 1.7 x 1.5") |
| Scope assembly diameter | 1.05 mm |
| Scope sheath length tip-to-handle mount | 1.2 m |
| Cable length handle mount to CCU | 2.0 m |
| Total cable and sheath length, tip to CCU | 3.2 m |
| LED location | Handle mount |
| Illumination | LED-coupled glass fiber bundle |
| Sensor Type | CMOS Progressive |
| Sensor Size (optical format) | 0.64 x 0.64 (1/36") |
| Pixel matrix | 200 x 200 |
| Electronic shutter | Rolling |
| FOV - field of view | 120° |
| Depth of focus | 3 to 50 mm |
| Magnification (depends on viewing distance) | up to 12x |
| F-number | f 2.8 |
| Focal length | 0.175 mm |
| Water resistance rating | IPX7 |
| Camera head/handle mounting | 1/4 - 20 threaded socket |
| Handle dimensions | 85 x 44 x 39 mm (3.3 x 1.7 x 1.5") |
| EM13078 - SV-2H03N Probe | |
| Scope assembly diameter | 0.89 mm |
| Scope sheath length tip-to-handle mount | 1.2 m |
| Cable length handle mount to CCU | 2.0 m |
| Total cable and sheath length, tip to CCU | 3.2 m |
| LED location | Handle mount |
| Illumination | LED-coupled glass fiber bundle |
| Sensor Type | CMOS Progressive |
| Sensor Size (optical format) | 0.64 x 0.64 (1/36") |
| Pixel matrix | 400 x 400 |
| Electronic shutter | Rolling |
| FOV - field of view | 120° |
| Depth of focus | 3 to 30 mm |
| Magnification (depends on viewing distance) | up to 12x |
| F-number | f 2.8 |
| Focal length | 0.175 mm |
| Water resistance rating | IPX7 |
| Camera head/handle mounting | 1/4 - 20 threaded socket |
| Handle dimensions | 85 x 44 x 39 mm (3.3 x 1.7 x 1.5") |
| EM13075 - SV-2D01N CCU | |
| Display | External (not included) |
| Touchscreen format | N/A |
| Output | Simultaneous HDMI, USB 3.0 (UVC) |
| Output frame rate | 30 fps |
| PC required for use | No |
| Recorded image formats | .PNG stills, MPEG4 clips |
| Image record | Image capture to USB media |
| Key functions | Auto/Manual brightness white balance, calibration |
| Water resistance rating | None |
| CCU dimensions | 140 x 200 x 43 mm (5.5 x 7.9 x 1.7") |
| CCU weight | 0.95 kg (2.1 lbs) |
| Mounting | N/A |
| Power input | 12V DC, 0.6A |
| Environmental | Operating temperature: 10 ° to 35 °C Humidity: up to 75% non-condensing Storage temperature: -20 ° to 70 °C |
| Included accessories | 12V DC power adapter 6’ HDMI cable 6’ USB 3.0 cable type A to type B USB media FAT32 16GB minimum |
| EM13074 - SV-2T01N CCU/Tablet | |
| Display | Integrated, 10" class touchscreen |
| Touchscreen format | Capacitive |
| Output | Switchable HDMI, USB 3.0 (UVC) |
| Output frame rate | 30 fps |
| PC required for use | No |
| Recorded image formats | .PNG stills, MPEG4 clips |
| Image record | Image capture, review, annotation, export/import USB media |
| Key functions |
Auto/Manual brightness Magic Light ROI brightness control white balance, calibration |
| Water resistance rating | None |
| CCU dimensions | 251 x 48 x 206 mm (9.9 x 1.9 x 8.1") |
| CCU weight | 1.25 kg (2.8 lbs) |
| Mounting | VESA 75, internal kickstand |
| Power input | 12V DC, 0.6A |
| Environmental | Operating temperature: 10 ° to 35 °C Humidity: up to 75% non-condensing Storage temperature: -20 ° to 70 °C |
| Included accessories | 12V DC power adapter 6’ HDMI cable 6’ USB 3.0 cable type A to type B USB media FAT32 16GB minimum |
