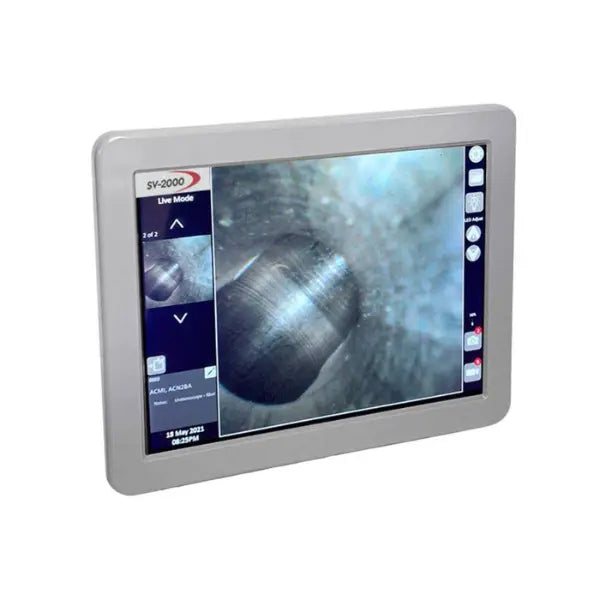

The Canon Medical SV-2000 SV-2T01N Tablet & Camera Control Unit controls and processes video output for the Canon SV-2000 Video Borescope System. Features include a 10" touchscreen, HDMI and USB 3.0 video output at 30 fps, capturing .PNG stills and MPEG4 video with annotations.
The SV-2000 video probe is a leading inspection tool for finely-machined, manufactured medical components. in delicate catheters, medical tubing, and pacemaker components.
Specification
| EM13074 - SV-2T01N CCU/Table | |
| Display | Integrated, 10" class touchscreen |
| Touchscreen format | Capacitive |
| Output | Switchable HDMI, USB 3.0 (UVC) |
| Output frame rate | 30 fps |
| PC required for use | No |
| Recorded image formats | .PNG stills, MPEG4 clips |
| Image record | Image capture, review, annotation, export/import USB media |
| Key functions |
Auto/Manual brightness Magic Light ROI brightness control white balance, calibration |
| Water resistance rating | None |
| CCU dimensions | 251 x 48 x 206 mm (9.9 x 1.9 x 8.1") |
| CCU weight | 1.25 kg (2.8 lbs) |
| Mounting | VESA 75, internal kickstand |
| Power input | 12V DC, 0.6A |
| Environmental | Operating temperature: 10 ° to 35 °C Humidity: up to 75% non-condensing Storage temperature: -20 ° to 70 °C |
| Included accessories | 12V DC power adapter 6’ HDMI cable 6’ USB 3.0 cable type A to type B USB media FAT32 16GB minimum |
