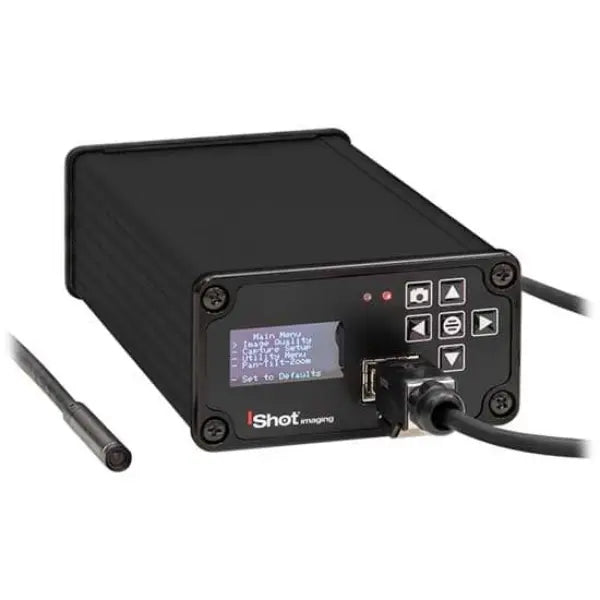

iShot® QNHD Camera Control Unit

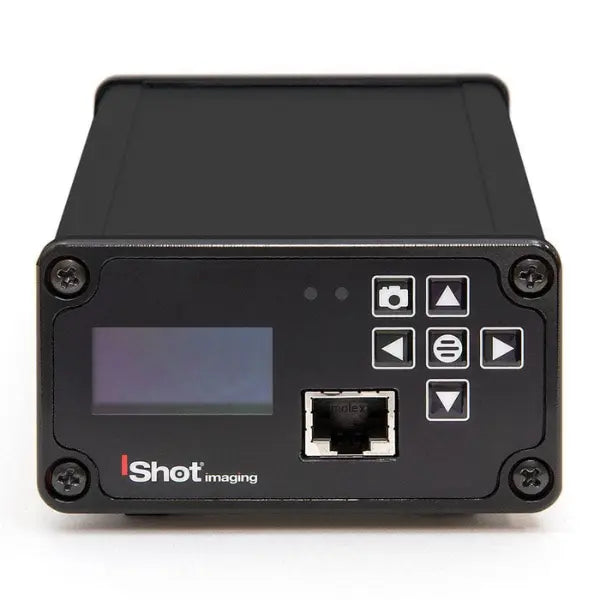

The QNHD Camera Control Unit controls and processes the imaging of the QNHD camera head and integral cable. Through the RJ45 connector, the CCU commands the camera to perform still image capture and video capture and adjust white balance, sharpness, gamma, saturation, contrast, hue, and others. Find further details here:
iShot® QN-HD 7mm Industrial Color Camera System
Specifications

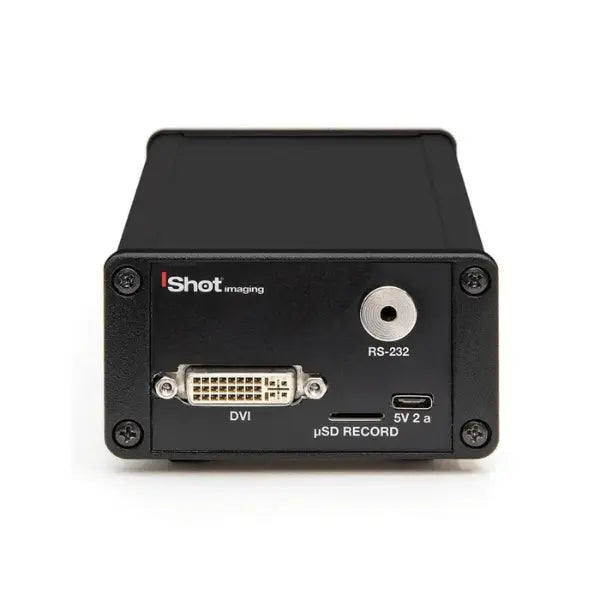

| Standard Connections | |
| DVI | Video output |
| USB-C |
Power input, USB video output |
| MicroSD | Image file storage |
| External COM port | RS232 communication between CCU and camera |
| Chassis Ground Connection | #8-32 x 3/8" grounding connection |
| Signal System | DVI, USB 2.0 |
| Video Formats | 1080p60, 1080p30, 720p60, 480p120 |
| Format | 16:09 |
| Sensor | 1/6" CMOS 2 Megapixel |
| Exposure | Auto, Manual |
| Shutter Values | Automatic, over 20 selectable values |
| Image Controls | White Balance, Sharpness, Gamma, Saturation, Contrast, Hue |
| E-PTZ | Available in Downscaled Modes |
| Presets | 4 Available |
| Color Temp Options | 2800K, 4500K, 6500K |
| Cable Material | PFA (High Temperature) or PVC |
| Cable Lengths | 2 m, 3.5 m, 5 m, 10 m, and 15 m |
| Storage | Removable Micro SD |
| Power | 5v DC , 800ma, 1a under LED operation |
