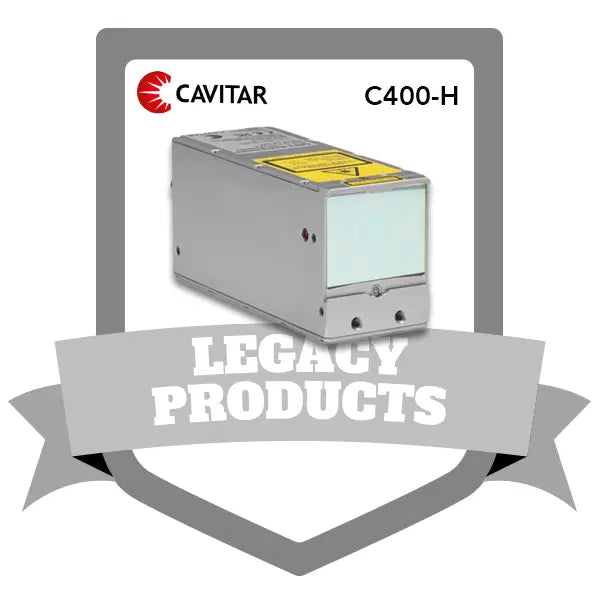

The Cavitar C400-H Camera Head is a cutting-edge weld camera that uses video processing and laser illumination to handle the intense light from a welding arc. This weld camera is easy to set up and versatile for quality assurance, machine vision, and welding research applications.
Specifications
|
Description |
4th generation compact |
|
Main applications |
GMAW, TIG, Plasma, Robotic, Additive Manufacturing |
|
Signal System |
GigE |
|
Picture |
Monochrome |
|
Camera Unit |
|
|
Max resolution (pixel) |
1440 x 1080 |
|
Max frame rate (fps)(1) |
70(2) |
|
Working distance (mm) |
150...300 |
|
Field of view (mm2): |
|
|
working distance 150 mm |
28 x 21 |
|
working distance 200 mm |
40 x 30 |
|
working distance 250 mm |
51 x 38 |
|
working distance 300 mm |
62 x 47 |
|
Size (WxHxL, mm) |
38 x 48 x 99 |
|
Weight (g) |
350 |
|
Laser Unit |
Integrated |
|
Laser wavelength (nm) |
640 |
|
Laser class |
3R |
|
Camera interface |
Gigabit Ethernet |
|
Gigabit Ethernet connector |
M12, X-coded |
|
Power & IO connector |
M12 |
|
Cooling options |
Passive: heatsink, heat conduction Active: air, liquid |
(1) At full resolution, dependent on computer performance
(2) Up to 500 fps with reduced resolution (720 x 540 px) with a high-speed version having a USB3 interface.
All values are approximated. The design working distance is 200 mm.
