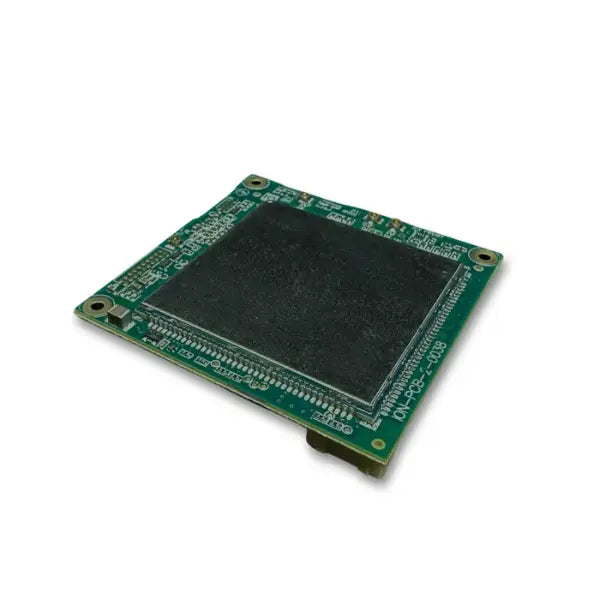

The IONODES Atomas IoT DUAL is a feature-rich IP video encoder module with "Internet of Things" capabilities for various camera designs. The compact form factor of this OEM IP encoder makes it especially ideal for integration into dual camera systems combining LVDS zoom blocks, MIPI sensor modules, and thermal block cameras.
Simultaneous Dual Camera Support
The IONODES Atomas DUAL IoT Encoder provides a direct LVDS connection, making it compatible with high-quality zoom camera block brands such as Sony and KT&C. It also supports MIPI and digital video sources, such as thermal cameras (Sierra Olympia and FLIR). Two cameras can be processed simultaneously and published via Onvif and other IP APIs for streaming/recording.
High-Performance Video Engine
The IONODES Atomas DUAL IoT Encoder features a powerful video codec engine that generates multiple HEVC/H.264 IP video streams at different quality settings. Single input mode generates video streams up to 4K 30fps, and dual input mode generates streams up to 2K 30fps for each input.
IoT Enabled for Endless Possibilities
The Atomas DUAL IoT Encoder offers the latest IoT and networking connectivity functions, including Ethernet, 4G LTE, Wi-Fi, GPS, Bluetooth, CAN Bus, 9-axis IMU, and more. Enjoy versatile and complete IP access to your camera technology for various applications.
Target Applications
This OEM IP encoder is ideal for video surveillance cameras, thermal camera systems, advanced PTZ camera systems, UAV drone surveillance and inspection, military and law enforcement applications, and ground robotics applications.
Specifications
|
Network |
1 x 10/100 Base-T Ethernet 3G / 4G LTE (optional) Wi-Fi: 2.4G / 5GHz, 802.11 a/b/g/n/ac (optional) Bluetooth: BT 4.2LE (optional) |
|
I/O & Audio |
2 x Dry ContactInputs, 1 x I/O Output Pin 1 x RS-485, 1 x UART (TTL), 1 x I2C 1 x Board Reset Signal 4 x uFL Antenna Connectors (LTE, Wi-Fi, BT, GPS) 1 x VRTC (2.0V to 3.25V) 1 x 3.3V Out (max.0.1A),1 x 5V Out (max.0.5A) 2-ch Audio Line In / 2-ch Audio Line Out 1 x CAN Bus (optional) |
|
Video Input 1 |
LVDS interface *Matches SONY FCB specifications |
|
Video Input 2 |
Digital video interface *For use with compatible IONODES video adapter boards |
|
Video Input 3 |
4-lane MIPI CSI-2 video interface *For use with compatible video adapter boards |
|
Video Performance |
|
|
Video Resolution |
Supports sensor inputs at up to 24 MP |
|
Video Encoding |
HEVC / H.264 / MJPEG (up to 4K 30 FPS) |
|
Video Latency |
Can reach less than 120ms latency |
|
Image Processing |
2D/3D noise reduction Edge enhancement Frame difference motion detection Privacy mask |
|
System |
|
|
Processors |
Qualcomm Snapdragon Processor Supervisory MCU for Fault-protection |
|
Operating System |
Embedded Linux/Android |
|
HW Watchdog |
Auto-boot, OS supervision, temperature monitoring, software monitoring |
|
Other |
Realtime Clock( RTC)& Temperature Sensor 9-axis IMU (optional) |
|
Storage |
|
|
Internal |
16 GB eMMC |
|
External |
External storage via microSD |
|
Protocols |
|
|
Networking |
IPv4/v6, UDP, TCP, IGMP, ARP, DHCP, DNS, NTP |
|
Streaming |
RTSP, RTP, HTTP, Web Sockets |
|
Management |
HTTP, HTTPS, Bonjour, ONVIF, ION API, SNMP, SMTP |
|
Security |
Basic / Digest Authentication, SSL |
|
Software |
|
|
Web GUI |
System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
|
Programming Interface |
ION API, ONVIF Profile G,S,T |
|
System Monitoring |
Video signal, storage medium, temperature, memory, CPU, network |
|
Media Recording |
Recorded ASF audio/video to SD/MMC |
|
Software Update |
Fault-tolerant, remote accesible |
|
Alarm Triggers |
I/O input, motion detection, system monitor |
|
PTZ Control |
Can Interface to PTZ controller (UART) Programmable presets tours User-defined custom commands |
|
Other Features |
Email notifications (on event or schedule) Text overlay OEM rebranding/customization |
|
Mechanical / Environmental |
|
|
Dimensions |

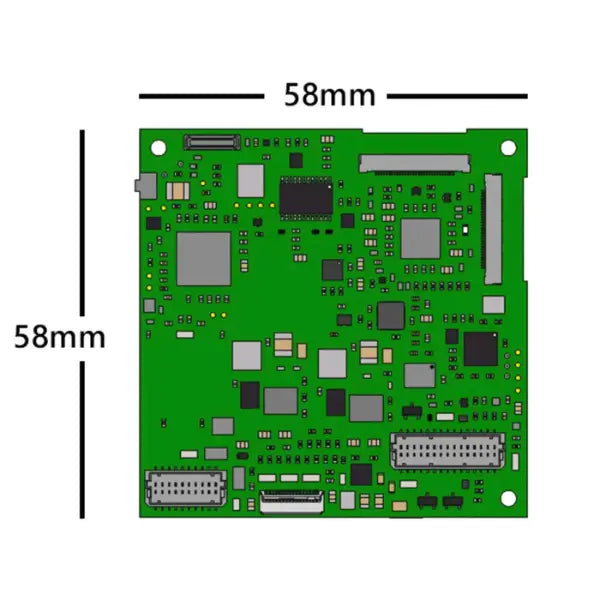

58 mm x 58 mm |
|
Power Input |
9VDC to 15VDC |
|
Operating Temp |
Dependent on customer mechanical design *All components are -20C to 70C (Tcase) |
|
Warranty |
2 Years Standard |
