iShot® LED-35 (35 Watt) Light Source Kit

SKU: EM15401

• LED 35W Fiber Illumination
• Mechanical Illumination Dimmer Function

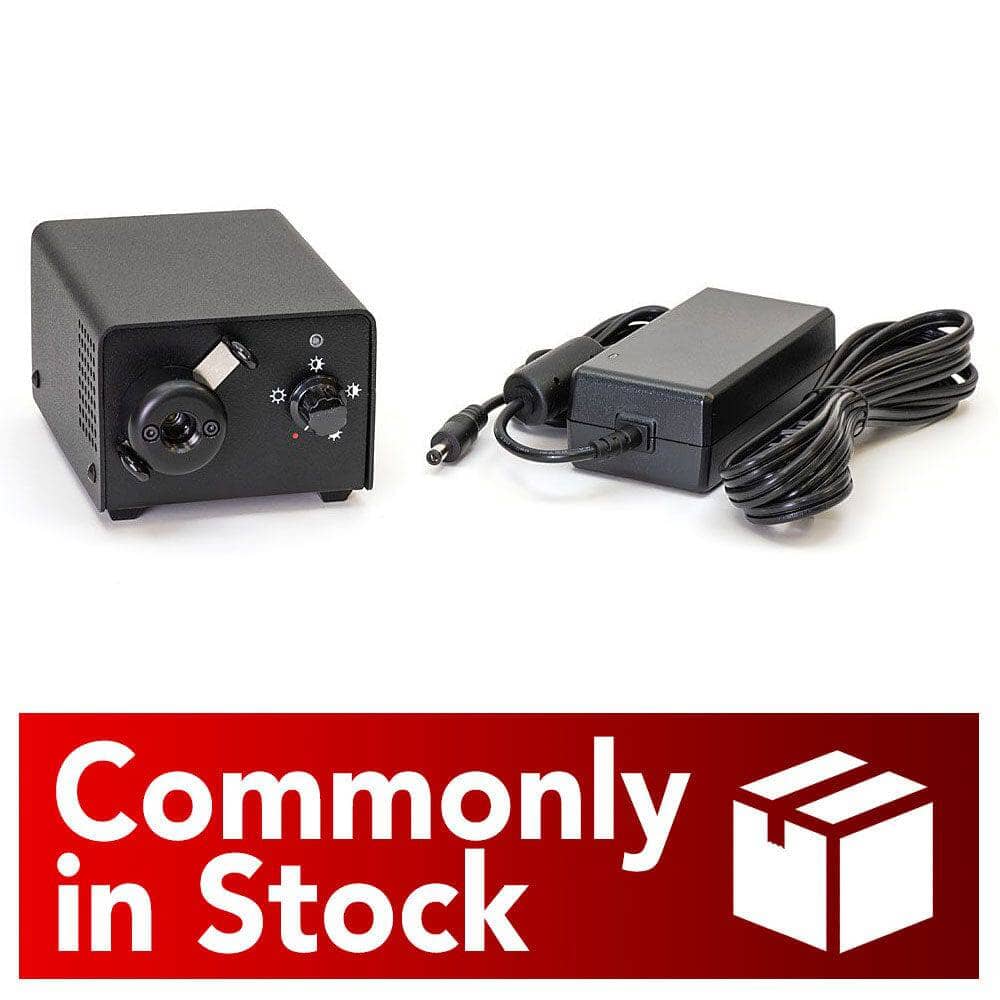

• Kit Includes the Light Source Unit, Power Transformer, and Power Cord
• Standard ACMI port

Details

The iShot LED-35 Light Source with ACMI port combines efficiency with portability. Provides brilliant daylight quality light with a typical LED life. The unit is easy to transport in the field and requires minimal bench space.

Specifications

Environment Ratings
Operating Temperature 41° F to 104° F (5° C to 40° C)
Operating Humidity 0 to 95% rh (non-condensing)
Storage Temperature -10° F to 140° F (-20° C to 60° C)
Storage Humidity 30 to 75% rh
Atmospheric Pressure 700 hpa to 1060 hpa
Mode of Operation Class II
Safety System Classification 2
System Pollution Degree II
Electrical Ratings
Power Supply Input 100 - 240 V~, 50/60 Hz, 1.4 A max
Power Supply Output  +12 V, 5.0 A
Recommended PS UAI Part: UPS-00
Light Source Voltage +12V DC; 14V DC maximum
Light Source Current 3.4 amp
Battery Recommend using a UR (or other recognized testing laboratory) recognized battery rated at 12V/9Ah  or equivalent with a minimum 3.5 amp current limit rating.
Shipping Weight 3 lbs
Shipping Dimensions 12" x 8" x 6"
