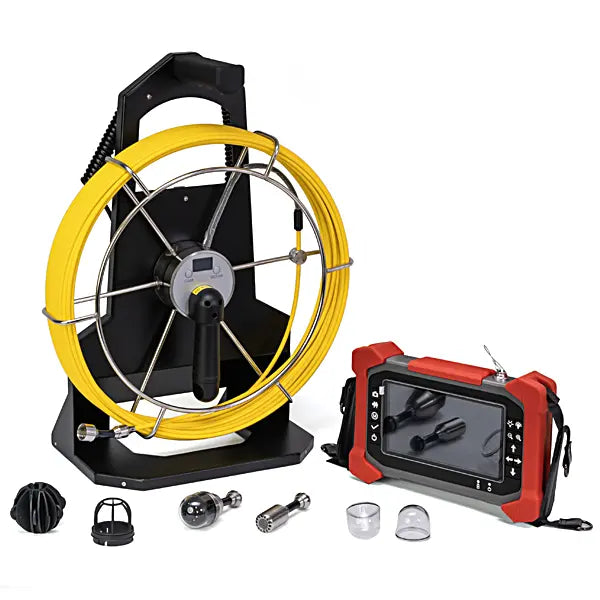

iShot Model IX Push Inspection System

iShot Cameras Vendor Logo SKU: IXPUSH- SYS

• Build-your-own rugged, push camera system
• 40 mm pan & tilt camera head
• 24 mm fixed, wide FOV camera head
• 30 and 50-meter fiberglass cable options

Choose a Camera

iShot Model IX Push 41mm Camera Head
iShot Model IX Push 41mm Camera Head
iShot Model IX Push 24mm Camera Head
iShot Model IX Push 24mm Camera Head

Choose a Cable

iShot Model IX Push 30 Meter Cable
iShot Model IX Push 30 Meter Cable
iShot Model IX Push 50 Meter Cable
iShot Model IX Push 50 Meter Cable

Choose a Camera Control Unit

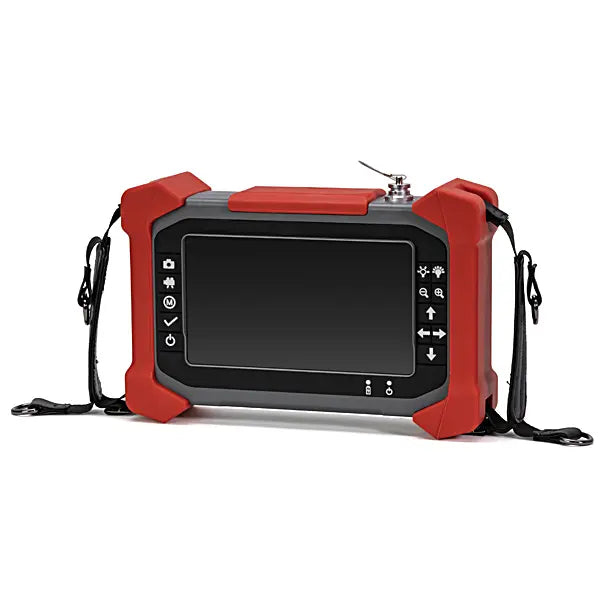

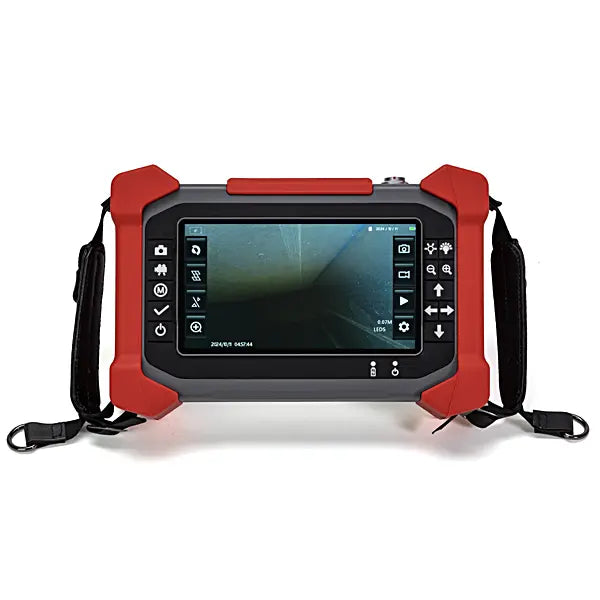

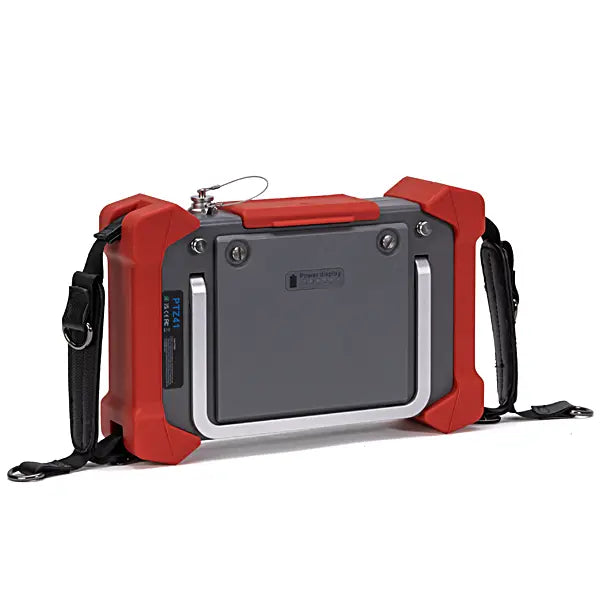

iShot Model IX Push Monitor Controller
iShot Model IX Push Monitor Controller

Accessories

iShot Model IX Push 41mm Camera Protective Cage
iShot Model IX Push 41mm Camera Protective Cage
iShot Model IX Push 40mm Camera Protective Covers - 2 Pack
iShot Model IX Push 40mm Camera Protective Covers - 2 Pack
iShot Model IX Push Roller Guide Ball
iShot Model IX Push Roller Guide Ball
iShot Model IX Rechargeable Battery
iShot Model IX Rechargeable Battery

Description

Details

The iShot Model IX Push Inspection System is a build-your-own system that can be customized to meet the demands of various remote vision inspection applications and industries, including sewer and water line, vessel tank, and pipe & valve inspections

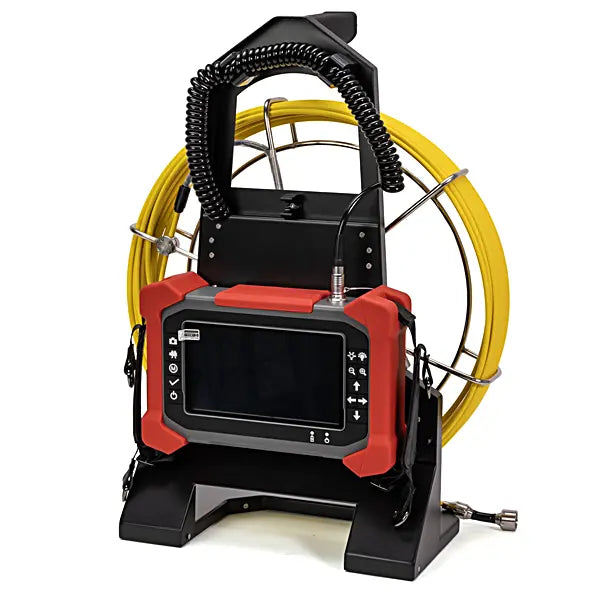

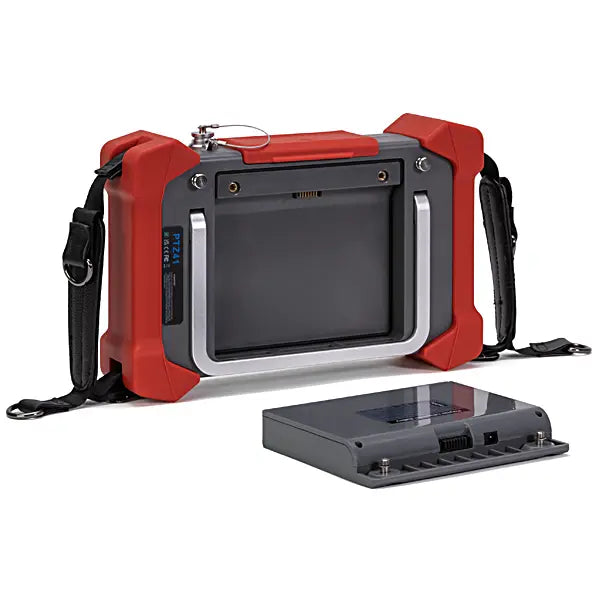

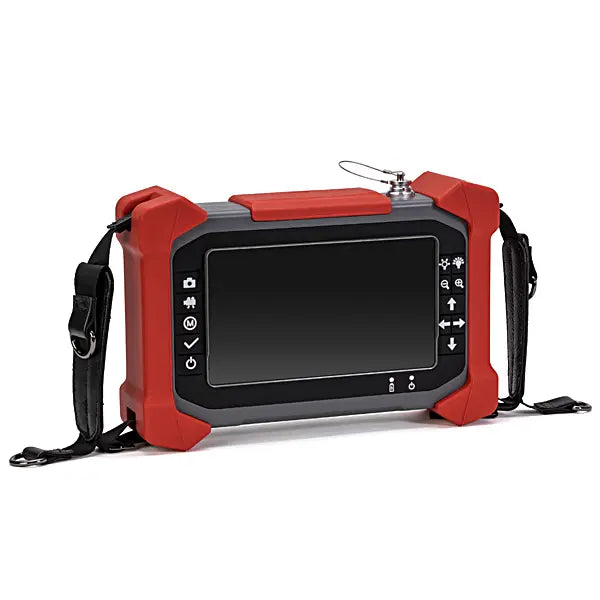

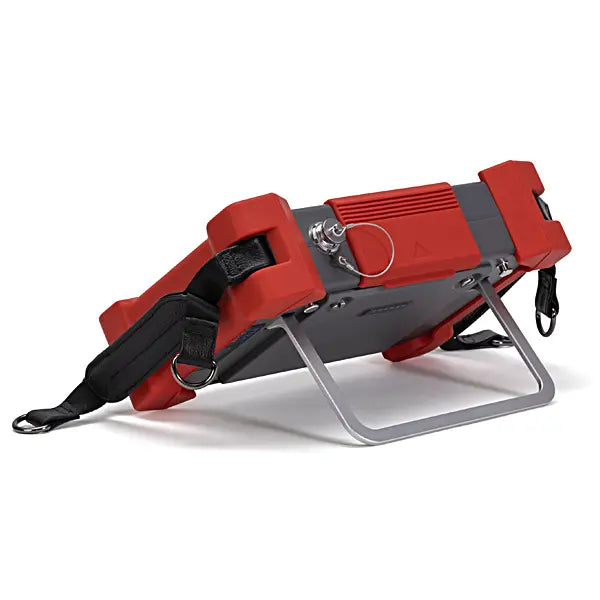

Choose from push cable lengths of 30 or 50 meters, two interchangeable cameras, the 40 mm pan & tilt, and the 24 mm fixed camera heads. The iShot Model IX Push Monitor Controller is a rugged tablet video borescope control unit with an intuitive 7-inch touchscreen that controls either camera head. It displays high resolution, ensuring every detail is noticed. Display features like contrast measurement lines, negative imaging, and other operating modes provide exceptional functionality for remote visual inspection. The monitor also offers up to 5 hours of constant operation and 64 GB of removable storage.

Each camera option offers an astounding 1MP pixel resolution and 12 LEDs for high illumination, which is ideal for detailed inspections. The iShot Model IX Push 24mm Camera Head has a wide 120° field of view to guarantee a comprehensive inspection image looking down pipes. The iShot Model IX Push 40mm Camera Head features 180° tilt and 360° pan functions for controlled and precise visibility when inspecting intricate systems piping configuration. The 40mm camera also features replaceable camera dome covers with an IP67 rating and waterproof ability up to one meter. Both cameras have 304 stainless steel, making for rugged and repeatable inspections in harsh environments.

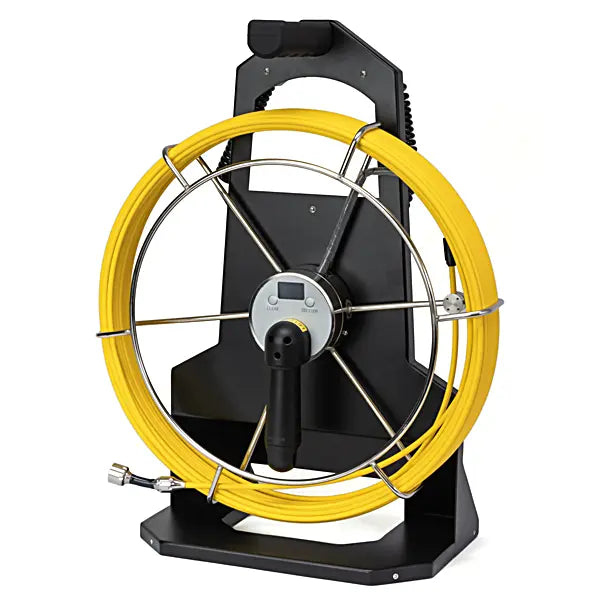

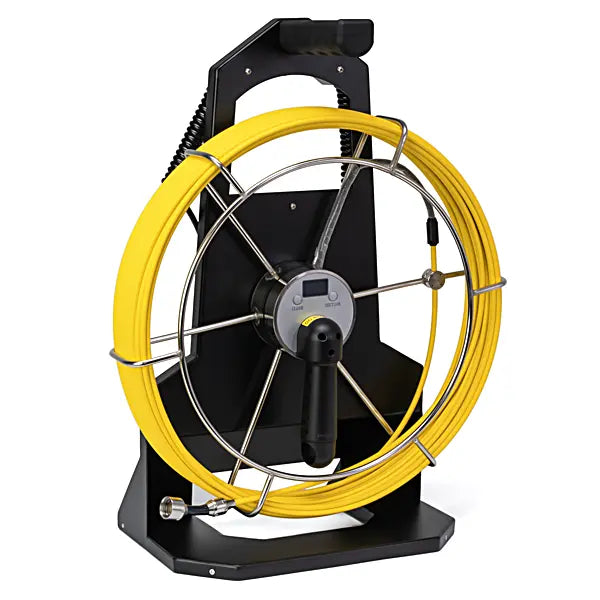

The iShot Model IX Push Cable options, 30 & 50 meters, are durable fiberglass cables with a 5.5mm diameter. Their rigidity allows a user to push and pull the camera heads through complex systems easily, but they have enough flexibility to bend around corners and be coiled up for transportation. Both cables come with a convenient dispenser and storage reel. With a length-counting measurement feature and IP67 rating, this cable reel can enhance inspection procedures in even the toughest environments.

Build an entire system or pick out individual components to add to your current system:

Controller

EM10481 - iShot Model IX Push Monitor Controller


Cable

EM10482 - iShot Model IX Push 30M Cable

EM10483 - iShot Model IX Push 50M Cable


Cameras

EM10484 - iShot Model IX Push 40mm Camera

EM10485 - iShot Model IX Push 40mm Camera

Accessories

EM10515 - iShot Model IX Spare Battery

EM10490 - iShot Model IX 40mm Camera Protective Cover

EM10491 - iShot Model IX Push Roller Guide Ball

EM10492 - iShot Model IX Push 40mm Camera Protective Cage

Specifications

Monitor Specifications


Monitor

7-inch LCD Display Screen

Resolution Ratio

1280 x 720

Display Frame Rate

30 fps

Screen Brightness

400 cd/m2

Touch Screen

Capacitive Touch Screen

Video Output

HDMI High Resolution

USB Interface

Data Transmission

Memory Card

32 GB

Video Resolution

1280 x 720

Picture Resolution

1280 x 720

Wifi

Optional

Lithium Electronic Batteries

11.1V 700mAh

Battery

Charging 8 hours, Usage time> 4 hours

Charger

12V  1A

Operating Temperature

-10° C -50° C

Storage Temperature

-10° C - 50° C







40 mm Color Rotation Camera

Camera Diameter

41mm

Camera Length

60mm

Pixel

720p

Light Source

12 LEDS

Camera Housing Material

Stainless Steel

Tilt / Pan

180° / 360°

Manual Focus

YES

Image Sensor

CMOS 1/4

Ingress Protection

IP67

Waterproof Depth

1 m



24mm Wide Angle Camera

Camera Diameter

24 mm

Camera Length

42 mm

Pixel

720p

Light Source

12 LEDs

Camera Housing Material

304 Stainless Steel

Field of View

>100°

Image Sensor

CMOS 1/4

Ingress Protection

IP67

Waterproof Depth

1 m



 Fiber Glass Cable with Reel

Insertion cable length

30 m / 50 m

Cable Diameter

5.5 mm

Cable Material

Fiberglass

Ingress Protection

IP67

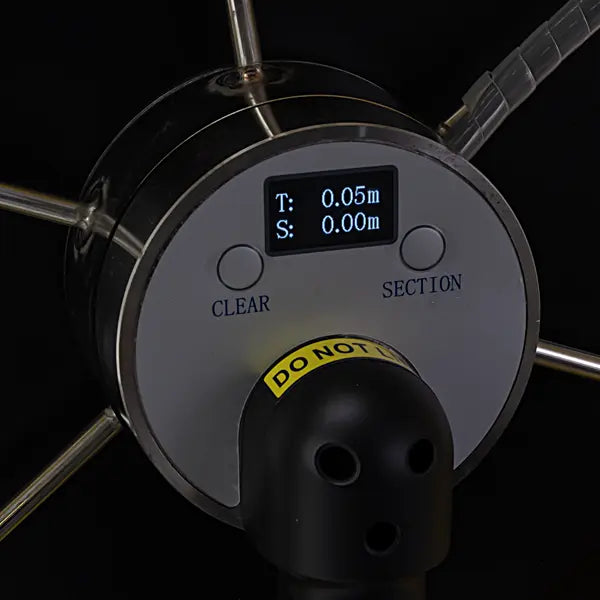

Meter Counter

Available

Meter Counting Accuracy

3%
