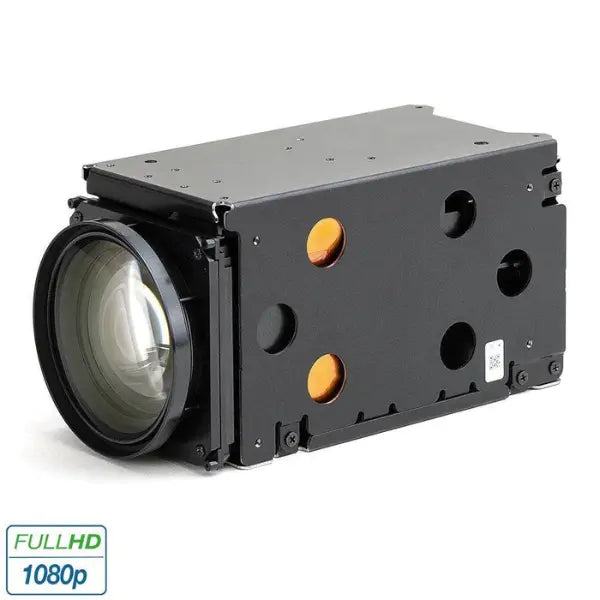

iShot® Sony FCB-EV9500L w/ Atomas Mini Dual DC0 Kit

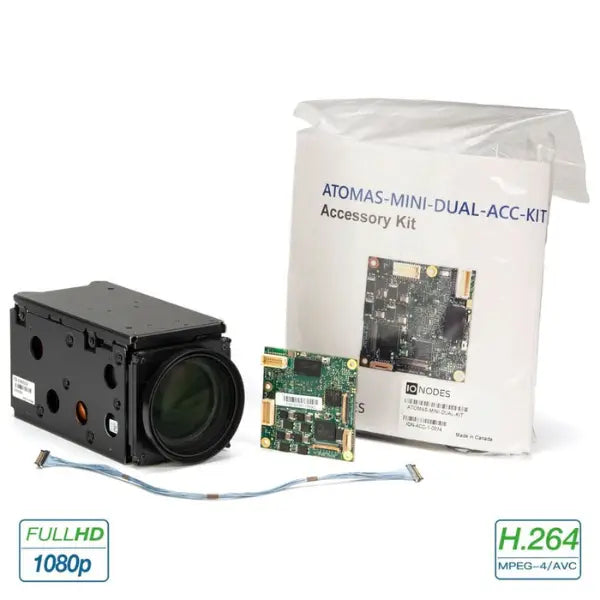

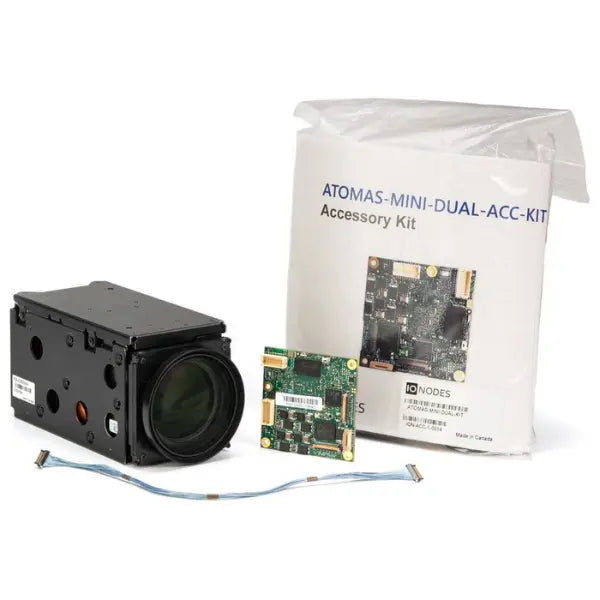

This kit includes the Sony FCB-EV9500L and the IONODES Atomas Mini Dual DC0. It features a compact dual input form factor that makes it well-suited for integration into dual camera systems with a primary LVDS zoom block and a secondary video source (digital or analog).
Simultaneous Dual Camera Support
The IONODES Atomas Mini Dual DC0 directly connects to the Sony FCB-EV9500L as a primary video input with simultaneous support of the second digital or analog format input. Both cameras could process simultaneously and publish via multiple APIs for streaming/recording High-Performance Video Engine.
The interface board features a powerful video codec engine that generates various H.264 IP video streams at different quality settings. Single input mode can create HD streams at 1080p 60fps; dual input mode can develop streams at up to 1080p 30fps for each input. Full Embedded Software Stack.
The ATOMAS series of interfaces has an extensive list of embedded software functions, including RTSP streaming, administrative web interface, Onvif Profile S, local recording, and mobile viewer for smartphones and tablets.
High Resolution
The sharp lens and 4MP sensor achieve accurate image representation and superior resolution. The superior AF/AE/ AWB functions even in low-light conditions.
30x Optical Zoom
There is no image deterioration with the 30x optical zoom and dramatically reduced chromatic aberration in Full HD output. The lens system achieves images with a sharp resolution during 4MP output.
Super Image Stabilizer
Enables capturing exact video with reduced blurring even in harsh environments with vibrations by significantly improving image stabilizer.
- Available during full HD or HD output
- With the “Super” and “Super+ (plus)”* modes
Color image acquisition when ICR ON
Only black and white images are achieved on conventional models while the IR cut filter is off.
The new ICR ON COLOR function allows the camera to capture images with color even with IR cut filter removed, making it practical for color rendering in darker conditions.
- The accuracy of color reproduction ranges depending on the light source and brightness.
Super Image Stabilizer
It enables the capture of stable, exact video with reduced blurring even in harsh environments with significant vibrations. Applies a wide correction area using 4M pixels; this camera series suppresses blurs from vibrations and rotational vibrations compared to conventional models. Two modes are available to select from based on the scale of vibrations.
- Available during full HD or HD output
- With the “Super” and “Super+ (plus)”* modes
- Super
This feature suppresses strong vibrations with a wider correction area than conventional electronic vibration suppressors.
- Super+
Employs a wider correction area than “Super,” “Super+” suppresses intense vibrations that the “Super” feature cannot stop.
- Potential applications include Shipboard, attachments for ITS surveillance, bridges, drones, vehicles, etc.
Wide Dynamic Range (Wide-D)
The Wide Dynamic Range divides an image into several blocks for correcting blocked-up shadows and blown-out highlights by the intensity difference.
Spot Focus · Spot AE · Spot AWB
This feature Enables AF, AE, and AWB only in specified areas within the screen. It also allows for the independent specification of any rectangle of the entire screen divided into 6 x 8.
Specifications
|
Image Sensor |
1/1.8‐type STARVIS CMOS Sensor (4.17M pixels) |
|
Output Image Size |
1920x1080, 1280x720 |
|
Gain |
Auto/Manual (0 dB ~ 50.0 dB), 0 ~ 28 steps |
|
Shutter Speed |
1/1 ~ 1/10000 s, 22 steps |
|
Sync System |
Internal |
|
Back Light Comp |
Yes |
|
Exposure Control |
0 dB ~ ± 10.5 dB, 15 steps |
|
Gamma |
Standard / Straight gamma |
|
Aperture Control |
16 steps |
|
White Balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto),Spot AWB |
|
AE (Auto Exposure Mode) |
Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE |
|
Zoom |
30x Enhanced Optical Zoom / 36x Stable Zoom / 12x Digital Zoom |
|
Lens |
f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 ~ 4.8 |
|
Zoom Mode |
Standard Mode / Variable Mode / Direct Mode |
|
Focusing System |
Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger, Near Limit, ICR-on Correction, Spot Focus |
|
Horizontal Viewing Angle |
58.1°~2.3° |
|
Minimum Object Distance |
100 mm～1200mm |
|
Video Output |
Digital : Y/Pb/Pr 4:2:2 (LVDS) (Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock) (SMPTE274M/SMPTE296M) |
|
Camera Control Interface |
VISCA protocol (CMOS 5V Level) |
|
Power Requirements |
7.0 V ~ 12.0 V DC |
|
Power Consumption |
6.1 W (When motor operates: 7.8W) |
|
Operating Temperature |
‐5 °C ~ +60 °C |
|
Storage Temperature |
‐20 °C ~ +60 °C |
|
Dimensions (W x H x D) |
56.0 x 64.0 x 125 mm |
|
Mass |
Approx. 439 g |
|
Interface Board |
|
|
Network |
1 x 10/100 Base-T Ethernet |
|
I/O & Audio |
2 x Dry Contact I/O Inputs |
|
|
1 x I/O Output |
|
|
3 x PWM GPIO |
|
|
1 x Board Reset Signal |
|
|
1 x Mobile Host Storage Controller (SD/MMC) |
|
|
1 x 2-ch Audio Line In / 2-ch Audio Line Out |
|
Primary Video Input |
30-pin LVDS interface (KEL USL00-30L)* Matches SONY FCB specifications |
|
Video Resolution |
Supports sensor inputs at up to 1080p |
|
Video Compression |
H.264/MPEG-4 AVC (up to high profile) MJPEG Total D1@390 fps or Full HD 1080p@65 fps |
|
|
Examples: |
|
|
1 x 1080p60 fps + 1 x D1 @ 30 fps |
|
|
2 x 1080p30 fps + 1 x D1 @ 30 fps |
|
Video Latency |
Can reach less than 120ms latency |
|
Image Processing |
2D/3D noise reduction |
|
|
Edge enhancement |
|
|
Frame difference motion detection |
|
|
Privacy masks |
|
Operating System |
Embedded Linux |
|
HW Watchdog |
Auto-boot, OS supervision, temperature monitoring, software monitoring |
|
Other |
Realtime Clock (RTC) & Temperature Sensor |
|
Storage |
|
|
Internal |
1GB NAND Flash |
|
External External Storage |
via SD/MMC |
|
Networking |
IPv4/v6, UDP, TCP, IGMP, ARP, DHCP,DNS, NTP |
|
Streaming |
RTSP, RTP, HTTP, Web Sockets |
|
Management |
HTTP, HTTPS, Bonjour, ONVIF, PSIA, ION API,SNMP, SMTP |
|
Security |
Basic / Digest Authentication, SSL |
|
Web GUI |
System configuration and maintenance |
|
|
Live video and PTZ control |
|
|
Cross-browser support |
|
|
Smartphone and tablet support |
|
Programming Interface |
ION API, ONVIF Profile S |
|
System Monitoring |
Video signal, storage medium, temperature, |
|
|
memory, CPU, network |
|
Media Recording |
Recorded ASF audio/video to SD/MMC |
|
Software Update |
Fault-tolerant, remote accessible |
|
Alarm Triggers |
I/O input, motion detection, system monitor |
|
PTZ Control |
Full Pelco D implementation Can interface to PTZ controller (UART) Programmable preset tours User-defined custom commands |
|
Other Features |
Email notifications (on event or schedule) |
|
|
Text overlay |
|
|
OEM rebranding / customization |
|
Dimensions |
50mm x 50mm |
|
Power Input |
8VDC to 36VDC |
|
Operating Temp |
Dependent on customer mechanical design |
|
|
* All components are -40C to 85C (Tcase) |
