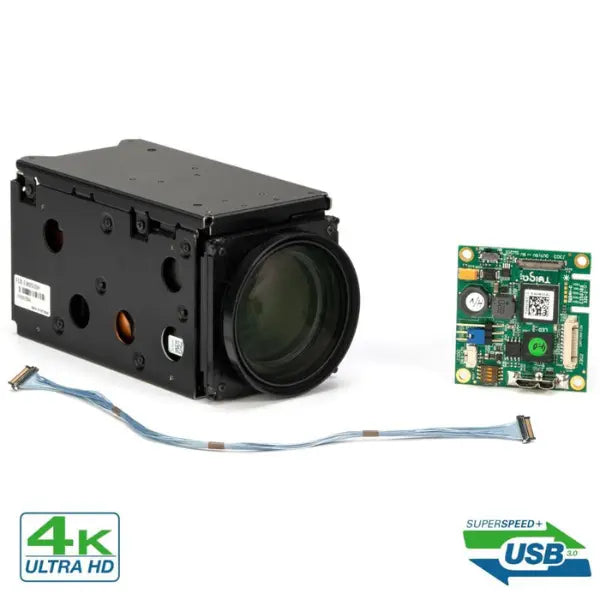

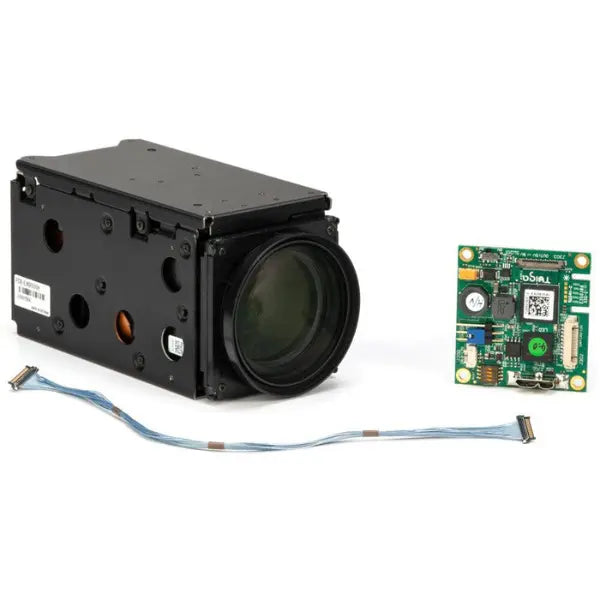

iShot® Sony FCB-EW9500H w/ Twiga TV80 0099 HDMI 4K to USB3 Kit

iShot Cameras Vendor Logo SKU: EM13039MFG: FCB-EW9500H

• LVDS
• 1080p 60fps/Full HD 60fps output image
• Super Image Stabilizer
• Wide Dynamic Range Mode (Wide-D)
• 30X Optical Zoom
• Automatic Exposure
• Automatic Focus

Description



Details

The FCB-EW9500H with Twiga HDMI 4K to USB3 interface board is a high-performance video capture module that captures uncompressed video streams from Sony 4K camera blocks. The USB3 powers, controls, and streams 4K on most devices equipped with a USB3 port and is ideal for various scenes, including environments with harsh conditions; in particular, the new super image stabilizer has greatly improved blur suppression.

Simultaneous HDMI Video Output

The HDMI 4K to USB3 interface board enables a simultaneous USB & HDMI 4k video stream. Ideal for digital inspection, UAV drone surveillance and inspection, or medical applications that simultaneously require video display and image processing.

Camera Control

You can control your camera settings remotely from your computer via the single USB3 cable or using the local UART. GPIOs for basic camera commands are also available.

High Resolution

The sharp lens and 4M sensor achieve accurate image representation and superior resolution. The superior AF/AE/ AWB functions even in low-light conditions.

30x Optical Zoom

There is no image deterioration with the 30x optical zoom alongside full sharpness and dramatically reduced chromatic aberration in Full HD output, and achieved images with a sharp resolution during 4M output.

Super Image Stabilizer

Enables capturing exact video with reduced blurring even in harsh environments with vibrations by significantly improving image stabilizer.

  • Available during full HD or HD output
  • With the “Super” and “Super+ (plus)”* modes

Color image acquisition when ICR ON

Only black and white images are achieved on conventional models while the IR cut filter is off.

The new ICR ON COLOR function allows the camera to capture images with color even with the IR cut filter removed, making it practical for color rendering in darker conditions.

  • The accuracy of color reproduction ranges depending on the light source and brightness.

Super Image Stabilizer

Applies a wide correction area using 4M pixels; this camera series suppresses blurs from vibrations and rotational vibrations compared to conventional models. Two modes are available to select from based on the scale of vibrations.

  • Super

This feature suppresses strong vibrations with a wider correction area than conventional electronic vibration suppressors.

  • Super+

Employs a wider correction area than “Super,” “Super+” suppresses intense vibrations that the “Super” feature cannot stop.

  • Potential applications include Shipboard, attachments for ITS surveillance, bridges, drones, vehicles, etc.

Wide Dynamic Range (Wide-D)

The Wide Dynamic Range divides an image into several blocks for correcting blocked-up shadows and blown-out highlights by the intensity difference.

Spot Focus · Spot AE · Spot AWB

This feature Enables AF, AE, and AWB only in specified areas within the screen. It also allows for the independent specification of any rectangle of the entire screen divided into 6 x 8.


Specifications

Image Sensor

1/1.8‐type STARVIS CMOS Sensor (4.17M pixels)

Output Image Size

2688x1512 / 2560x1440 / 1920x1080 /1280x720

Gain

Auto/Manual (0 dB ~ 50.0 dB), 0 ~ 28 steps

Shutter Speed

1/1 ~ 1/10000 s, 22 steps

Sync System

Internal

Back Light Comp

Yes

Exposure Control

0 dB ~ ± 10.5 dB, 15 steps

Gamma

Standard / Straight gamma

Aperture Control

16 steps

White Balance

Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto),Spot AWB

AE (Auto Exposure Mode)


Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE

Zoom

30x Enhanced Optical Zoom / 36x Stable Zoom / 12x Digital Zoom

Lens

f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 ~ 4.8

Zoom Mode

Standard Mode / Variable Mode / Direct Mode

Focusing System

Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger

Horizontal Viewing Angle

58.1°~2.3°

Minimum Object Distance

100 mm1200mm

Video Output

Digital : Y/Pb/Pr 4:2:2(HDMI) Y:8bit.C:8bit RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit

Camera Control Interface

VISCA protocol (CMOS 5V Level)

Power Requirements

7.0 V ~ 12.0 V DC

Power Consumption

Approx. 4.5W, MAX 5.5~6.5W

Operating Temperature

‐5 °C ~ +60 °C

Storage Temperature

‐20 °C ~ +60 °C

Dimensions (W x H x D)

56.0 x 64.0 x 125 mm

Mass

Approx. 439 g

Interface Board


Digital video output

USB3.2 Gen 1 – UVC compliant

Camera settings and control

VISCA protocol via USB CDC or UART TTL

GPIOs

Camera commands

Digital video output connector

USB3 micro B-type

Camera power supply

USB3 cable or external 6 to 12 VDC

HDMI output

HDMI 2.0 type D

Operating temperature range

0°C to 60°C

Storage temperature range

-20°C to 60°C

Regulation

CE EMC compliant, PCB : UL 94 V0

Dimensions (mm)

48 (H) x 45 (W) x 18 (D)

Weight (g)

24
