iShot® Tenum 640 and Block Camera Integration Kit

iShot Cameras Vendor Logo SKU: EM16659

• Tenum 640 Thermal Camera with 3 different lens options (50°, 25°, & 18° horizontal field-of-views).
• H.264 & MJPEG video streaming at up to 1080p60
• ONVIF Profile S compliant
• Support for both EV7520 & EV7520A
• Full API
• 8VDC to 36VDC wide power input range

Lens: f = 5.5mm / 70° HFOV

Description

Details

iShot® Tenum 640 and Block Camera Integration Kit

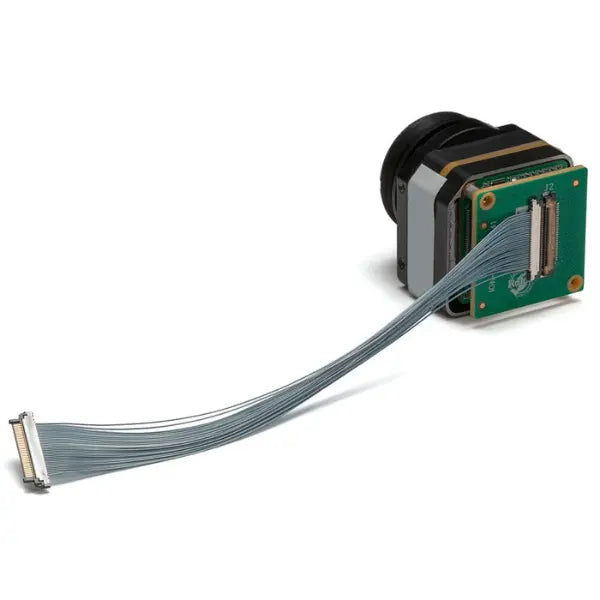

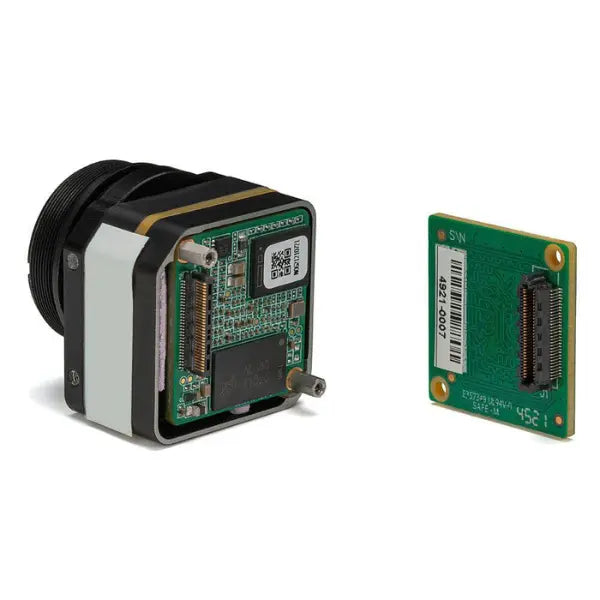

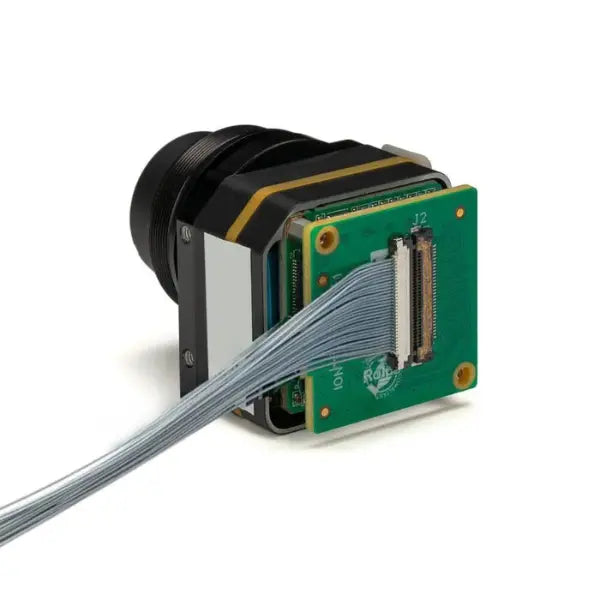

This kit provides a Tenum 640 LWIR camera and interface board allowing an OEM to create an IP-based dual camera package. The Tenum comes in options of 4 different lenses (70°, 50°, 25°, & 18° horizontal field-of-views).  This board has two inputs: one for the Tenum 640 Adapter Board and the second for a Sony FCB EV series camera—making this kit the perfect head start for building application-specific EO/IR camera assemblies. Two 30-pin micro coaxial cables are included for connectivity to the board.

The Atomas Mini Dual Input Board produces independent streams for each camera connected to it and is capable of 1080p video along with VGA resolution for the second input.  A full API is available for software integration, and control of both cameras attached to it is fully supported.



Specifications

Horizontal Field of View 70°, 50°, 25°, 18°

Detector Type

Uncooled VOx Microbolometer

Array format

640 x 512

Pixel Pitch

10 μm

Spectral response

LWIR

FPS

60 Hz (9 Hz option available)

Sensitivity (NEdT) @ f/1.0

<50 mK

Sensitivity w/ 3-D noise filter

<30 mK

Analog Video

NTSC/PAL (requires feature board)

Digital Video

14-bit/8-bit LVCMOS or Camera Link®

Communication Interfaces

UART/RS-232; USB 2.0

Image Enhancement


Image Contrast Enhancement (ICETM) with gain and level bias controls

External Sync

Yes

Color

24-bit RGB and YUV (4,2,2) Superframe

3-D Noise Filter

User option to enable < 30 mK NETd

Digital Zoom and Pan

Region of Interest, E-zoom from 1X - 4X

Non-Uniformity Correction

1-point with shutter or through lens

Time to First Image

< 3.0 seconds

Input Voltage

3 - 5.5 V Base Configuration 4.5 - 18 V with Feature Board

Operating Temp Range

-40oC to +70oC (-40oF to +158oF)







Network

1 x 10/100 Base-T Ethernet

I/O & Audio

2 x Dry Contact I/O Inputs


1 x I/O Output


3 x PWM GPIO


1 x Board Reset Signal


1 x Mobile Host Storage Controller (SD/MMC)


1 x 2-ch Audio Line In / 2-ch Audio Line Out

Primary Video Input

30-pin LVDS interface (KEL USL00-30L)* Matches SONY FCB specifications

Video Resolution

Supports sensor inputs at up to 1080p

Video Compression

 H.264/MPEG-4 AVC (up to high profile) MJPEG Total D1@390 fps or Full HD 1080p@65 fps


Examples:


1 x 1080p60 fps + 1 x D1 @ 30 fps


2 x 1080p30 fps + 1 x D1 @ 30 fps

Video Latency

Can reach less than 120ms latency

Image Processing

2D/3D noise reduction


Edge enhancement


Frame difference motion detection


Privacy masks

Operating System

Embedded Linux

HW Watchdog

Auto-boot, OS supervision, temperature

monitoring, software monitoring

Other

Realtime Clock (RTC) & Temperature Sensor

Storage


Internal

1GB NAND Flash

External External Storage

via SD/MMC

Networking

IPv4/v6, UDP, TCP, IGMP, ARP, DHCP,DNS, NTP

Streaming

RTSP, RTP, HTTP, Web Sockets

Management

HTTP, HTTPS, Bonjour, ONVIF, PSIA, ION API,SNMP, SMTP

Security

Basic / Digest Authentication, SSL

Web GUI

System configuration and maintenance


Live video and PTZ control


Cross-browser support


Smartphone and tablet support

Programming Interface

ION API, ONVIF Profile S

System Monitoring

Video signal, storage medium, temperature,


memory, CPU, network

Media Recording

Recorded ASF audio/video to SD/MMC

Software Update

Fault-tolerant, remote accessible

Alarm Triggers

I/O input, motion detection, system monitor

PTZ Control

Full Pelco D implementation

Can interface to PTZ controller (UART)

Programmable preset tours

User-defined custom commands

Other Features

Email notifications (on event or schedule)


Text overlay


OEM rebranding / customization

Dimensions

50mm x 50mm

Power Input

8VDC to 36VDC

Operating Temp

Dependent on customer mechanical design


* All components are -40C to 85C (Tcase)
