The SeeUV® UV-LED Light Source Kit combines state-of-the-art, solid-state illumination technology with a distinct optical design to create a compact and lightweight UV light source for industrial applications where space is at a premium.
The LED engine of the light source draws low power and has an average lifespan of 10,000 hours without requiring an LED change.

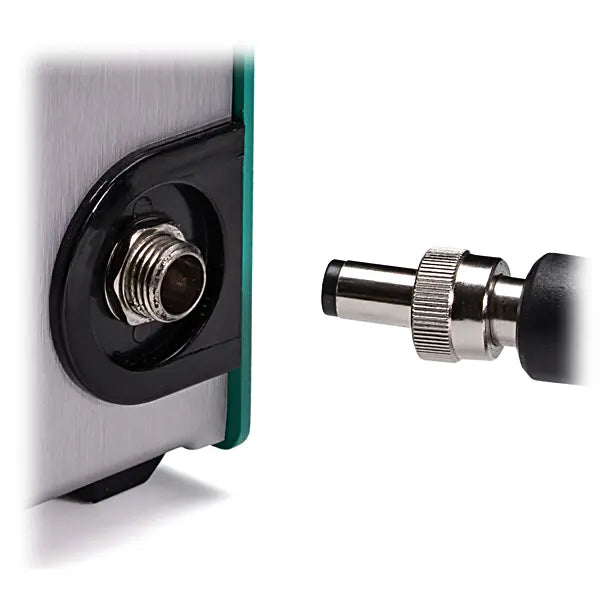

The kit comes ready to use with its own power cord, power supply, and a Machida light guide receptacle.
*Other light guide adapters for EU and UK are available in Accessories
Specifications
| Illumination | |
| UV Wavelength | 365-370nm Peak |
| Power | 50 watts |
| Average LED Life | 10,000+ hours |
| External Power Supply | |
| Input | 100 - 240 V~, 50/60 Hz, 1.4 A max |
| Output | +12 V, 5.0 A |
| Light Source Power Ratings | |
| Voltage | +12V DC; 14V DC maximum |
| Current | 5.0 A |
| Environmental Ratings | |
| Operating Temperature | 41° F to 104° F (5° C to 40° C) |
| Humidity | 0 to 95% rh (non-condensing), 30 to 75% rh |
| Storage Temperature | -10° F to 140° F (-20° C to 40° C) |
| Atmospheric Pressure | 700 hpa to 1060 hpa |
| Physical Dimensions | |
| Length | 127 mm (5.0") |
| Width | 90 mm (3.5") |
| Height | 68 mm (2.7") |
| Weight | 0.45 kg (1.0 lbs) |
Items Included
EM14466 - 35W UV-LED Light Source w/ Machida adapter
EM66693 - Universal Input Power Supply (60W 12V P/S)
EM11890 - US Power Cord (NEMA 5-15P to IEC C13)
