KT&C ATC-HZ5530W-LP 30x Global Shutter Block Camera

KTC Block Cameras Vendor Logo SKU: EM13547MFG: ATC-HZ5530W-LP

• 1/1.8” IMX265 Sony Progressive Scan Global Shutter CMOS
• 360x AF Zoom (30x optical zoom, 12x digital zoom)
• UART RS232-TTL(Pleco-D, Pelco C, VISCA, Hitachi)
• Up to 1080p @ 60 (50fps)
• Parallel / LVDS video output
• Dimensions: 55.0 x 64.0 x 123 mm
• Weight: Approx. 380 g

Compatible Interface Board Kits / Encoders

Twiga MCX 3G/HD-SDI Neo Interface Board Kit
Twiga MCX 3G/HD-SDI Neo Interface Board Kit
Twiga MCX 3G/HD-SDI Premium Interface Board Kit
Twiga MCX 3G/HD-SDI Premium Interface Board Kit
Twiga HDMI Interface Board Kit
Twiga HDMI Interface Board Kit
Twiga USB3 Neo Interface Board Kit
Twiga USB3 Neo Interface Board Kit
Twiga TV20 0011 Red Mamba Neo IP Video Encoder
Twiga TV20 0011 Red Mamba Neo IP Video Encoder
KT&C ACE-HENS342-iL H.264 Encoder
KT&C ACE-HENS342-iL H.264 Encoder
KT&C ACE-HEN6338-iL H.264 Encoder with Cables
KT&C ACE-HEN6338-iL H.264 Encoder with Cables
IONODES Atomas IoT Dual Board & Accessory Kit
IONODES Atomas IoT Dual Board & Accessory Kit

Description

Details

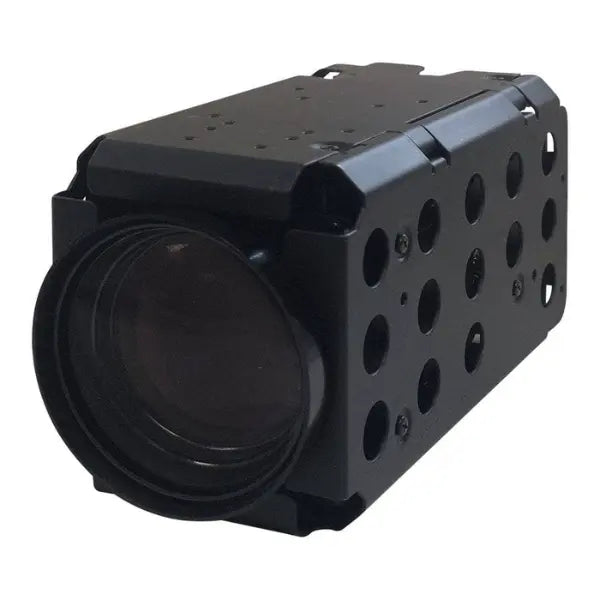

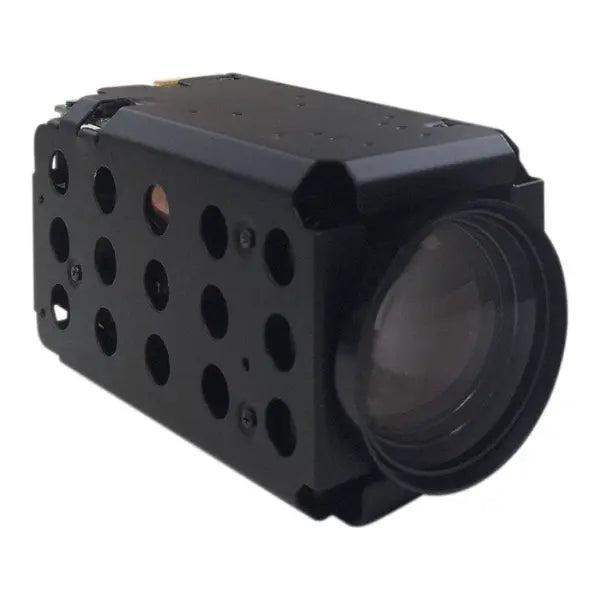

KT&C ATC-HZ5530W-LP 30x Zoom Global Shutter Block Camera

The KT&C ATC-HZ5530W-LP 30x Zoom Global Shutter Block Camera is a multi-output (Parallel / LVDS) zoom block camera module with a compact footprint and mighty processing power. It features a  1/1.8” Progressive Scan Global Shutter CMOS sensor, Mechanical Day & Night, 360x AF Zoom(30x optical zoom, 12x digital zoom), True WDR, and Full HD 1080p 60/50/30/25fps digital signal. This block camera can produce high-quality images of the toughest-to-view applications.


KT&C Block Camera Model Naming Legend

ATC - HZ5530W - LP


Zoom Ratio

7: 7x, 10: 10x, 18: 18x, 22: 22x, 30: 30x, 36: 36x

Lens Type Character

C, M, W, T, U, Z

Video Output Mode

L: LVDS, P: Parallel, LP, LVDS/Parallel, C: CVBS, U: USB, H: HDMI


Specifications

Image Sensor

1/1.8" Progressive Scan Global Shutter CMOS

Effective Pixels

3.19MP 2064(H) x 1544(V)

Video Output mode

LVDS / Parallel / CVBS

Max. Video Resolution

LVDS / Parallel: 1080p@60(50fps)

Synchronization system

Internal / External Option

Min. Illumination

Day mode: 0.5(Lux(F1.5)

Night mode: 0.05Lux(F1.5/ IR-cut filter on) DSS OFF, AGC45dB

S/N Rate

More than 55dB(AGC off, DSS off)

Lens


Type

AF Optical zoom lens(DC Iris), IR Corrective

Focal Length

f=6.0mm~180mm

F-value

F1.5(W)~4.3(T)

Angle of View

Horizontal 61.2°(W)~2.32°(T), Vertical 36.1°(W)~1.31°(T)

Zoom ratio

Optical 30x / Digital 12x

Focus Min. Working Distance

0.1m(Wide)/1.5m(Tele)~∞

Focus Control

Auto/Manual/Interval/One Shot/Preset

AE mode

Auto/Shutter Priority/Iris Priority/Manual

Brightness

0~14

Manual Shutter

x32~x2(Low shutter), 1/30(25), 1/60(50)~1/30000

Manual Iris

F1.6~F32, Close

Sense-up

Off~32fields

ETC

Spot AE, Slow AE

D&N Mode

Auto/Day(Color)/Night(BW)/External-H or L

White Balance

AUTO/One Push/Indoor/Outdoor/ATW/Manual

Image Freeze

Off/On

Image Flip

Off/Horizontal/Vertical/H+V(180° Flip)

Privacy Mask Zone

8 Zones/14 mask color selectable

Digital Image Stabilization

Yes

Motion Detection

4 Zones

D-WDR

Off/Low/Middle/High

WDR

Off/On, Adjustable(Level:0~29, Contrast:0~5, Bright: 0~19)

BLC

Off/On, Area selectable

HLC

Off/On, Area selectable

AGC

Max.48dB

Sharpness

Adjustable(0~15)

3D-DNR

Off/Auto/Low/Middle/High

2D-DNR

Off/Auto/Low/Middle/High

Defog

Off/On/Auto

Preset Position

256 position Presets(Zoom, Focus), 16Memory Presets, Custom Preset

Language

English

UART


Remote

RS232 TTL +5.0V(+3.3V compatible)

Protocol

VISCA/Pelco-D/Pelco-P/Hitachi: Automatic detection

Baud rate

2400/4800/9600/19200/38400/57600/115200bps

UTC

-

Supply Voltage

12VDC(9V to 15VDC)

Power Consumption

Max. 5.3W / Non-working zoom & focus 3.8W

Dimensions (mm)

55.0 x 64.0 x 123 mm

Weight

Approx. 380 g

Operating Temp

-10°C~+50°C, Humidity(20~80%)

Storage Temp

-20°C~+60°C, Humidity(20~95%)
