SeeUV® Motorized WebViewer® Attachment

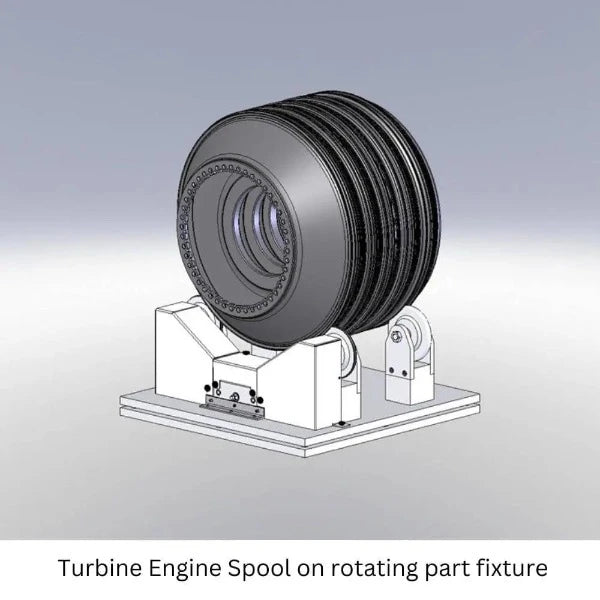

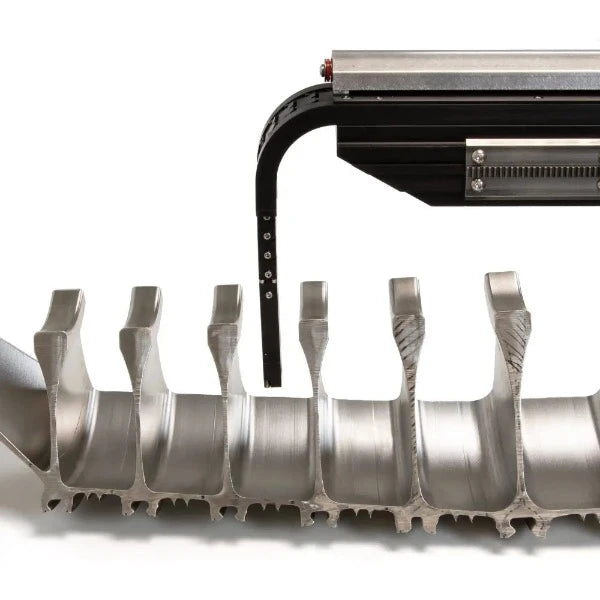

The SeeUV® Motorized WebViewer® is an attachment typically mounted to a VIBES® Cart boom, including manual or motorized vertical and horizontal travel. It is a UV camera inspection tool used with fluorescent penetrant inspection (FPI) and magnetic particle inspection testing methods typically performed on the internals of combustion turbine drums, shafts, and spools. Encoded elevation, horizontal travel, and radial reach values are displayed on-screen.
The positioning system with encoded position values displayed on-screen ensures that the camera is delivered into the component accurately and efficiently. It permits 100% coverage with desired overlap and repeatable positioning for re-inspection.

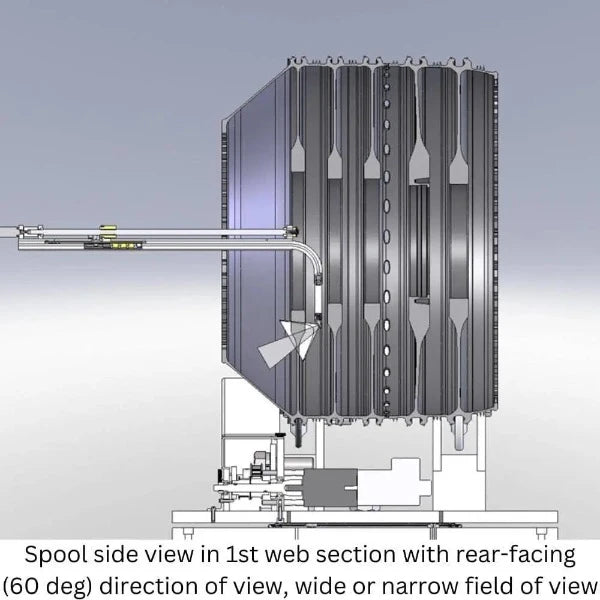

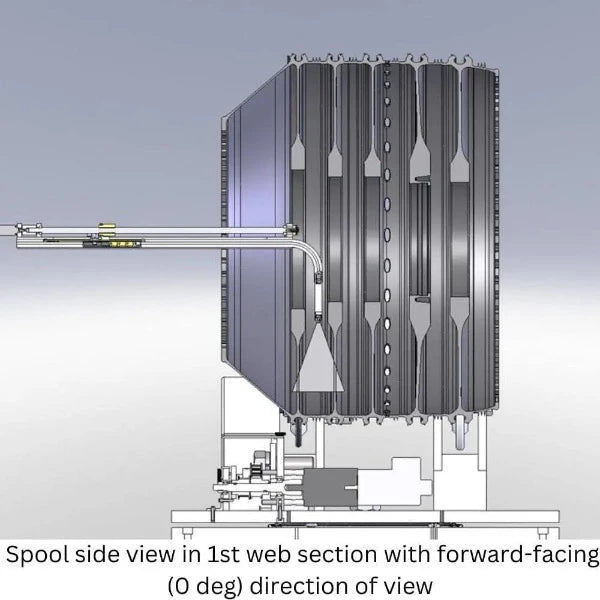

Three included optical adapters viewing 0°, 60°aft, and 90°aft assure direct alignment with target surfaces. UV and white light levels are optimized for high-contrast viewing of fluorescent indications. Macro positioning tools permit reach into bores as small as 102 mm diameter; see VIBES-S (EM10919), VIBES-L (EM10918), VIBES-L-XR (EM15612), and FSWV-S (EM14110) and reference specifications in the download area.
With optional 60° forward and 90°forward optical adapters, all web surfaces may be inspected with access from one side of the component.
Formerly EM12318 InterTest Part Number.
Specifications
| Camera Specifications | ||
| Image Sensor |
|
|
| Video Format | DVI | |
| Resolution | 1980H x 1020V effective pixels | |
| Shutter | Automatic | |
| Operation Temperature | 0°C to 40°C (32°F to 104°F) | |
| Illumination System | ||
| UV Transmission | 6.5 meter x 5.5 mm (OD) liquid light guide | |
| White Light Transmission | 6.5 meter x 4 mm (OD) light guide | |
| UV Light Output Peak | 365 nm | |
| UV Intensity | UV intensity > 2000 µW/cm2 at 76 mm (3.00”) from the target | |
| Light Control | White and UV full range variable intensity; simultaneous and independent operation | |
| Camera Head Features | ||
| Dimensions | 1.25" x 3" ( Minimal access is 102mm Bore) | |
| Focus | Motorized, remote control | |
| Viewing Direction |
0º, 60º (forward & aft) & 90º (forward & aft) |
|
| Optical Adapter Specification | ||
| Forward (0º) | 64º x 36º | |
| Side (60º) | 21º x 11.9º | |
| Side (90º) | 64º x 36º | |
| Mechanical Specifications | ||
| Axis of movement | X-axis (insertion), Y-axis (elevation), and radial | |
| Insertion Range (X-axis) | 500 mm | |
| Elevation Range (Y-axis) | 950 mm | |
| Radial Range | 250 mm | |
| Encoding | X-axis, Y-axis & Radial | |
| Encoding Resolution | ± 0.1 cm | |
| Cart (Height) | Stainless Steel (34") | |
| Display | ||
| Model | Sony LMD-B170 | |
| Controller Power | 110VAC (220VAC) optional |
