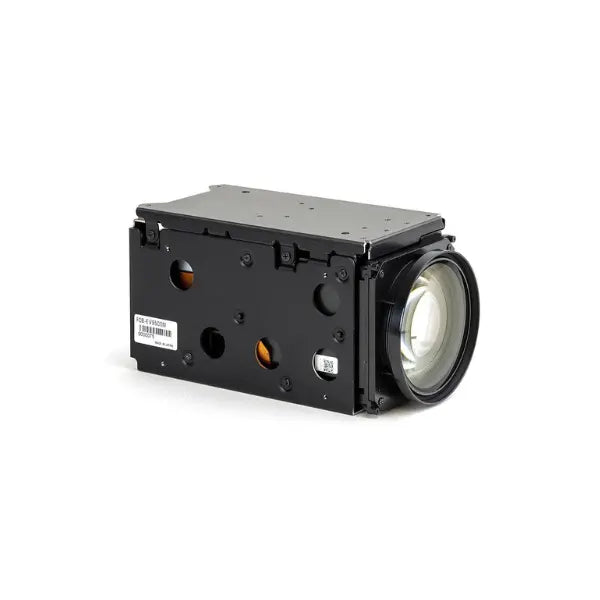

Sony FCB-EV9500M 30x MIPI Block Camera

Sony Vendor Logo SKU: EM17277 MFG: FCB-EV9500M

• MIPI digital signal out
• Up to Full HD 1080p/60fps video output
• Super Image Stabilizer
• Wide Dynamic Range Mode (Wide-D)
• 30x Optical Zoom
• Automatic Exposure
• Automatic Focus



Sony FCB-EV9500M 30x MIPI Block Camera

The Sony FCB-EV9500M 30x Block Camera produces Full HD 1080p/60 video output in the digital mobile processor industry interface (MIPI®) signal. This OEM block camera produces high-quality HD images ideal for mobile phones, tablets, and laptop displays. Complete with high sensitivity in low-light environments and image stabilization, the FCB-EV9500M is suited for many applications, including fixed-position surveillance, UAV drone surveillance and inspection, or automatic license plate recognition (ALPR).

High Resolution

The sharp lens and 2MP sensor achieve accurate image representation and superior resolution. The superior AF/AE/ AWB functions even in low-light conditions.

30x Optical Zoom

There is no image deterioration with the 30x optical zoom alongside full sharpness and dramatically reduced chromatic aberration in Full HD output, and achieved images with a sharp resolution during 4MP output.

Super Image Stabilizer

Enables capturing exact video with reduced blurring even in harsh environments with vibrations by significantly improving image stabilizer.

  • Available during full HD or HD output
  • With the “Super” and “Super+ (plus)”* modes

Color image acquisition when ICR ON

Only black and white images are achieved on conventional models while the IR cut filter is off.

The new ICR ON COLOR function allows the camera to capture images with color even with the IR cut filter removed, making it practical for color rendering in darker conditions.

  • The accuracy of color reproduction ranges depending on the light source and brightness.

Super Image Stabilizer

Applies a wide correction area using 4MP; this camera series suppresses blurs from vibrations and rotational vibrations compared to conventional models. Two modes are available to select from based on the scale of vibrations.

  • Super

This feature suppresses strong vibrations with a wider correction area than conventional electronic vibration suppressors.

  • Super+

Employs a wider correction area than “Super,” “Super+” suppresses intense vibrations that the “Super” feature cannot stop.

  • Potential applications include Shipboard, attachments for ITS surveillance, bridges, drones, vehicles, etc.

Wide Dynamic Range (Wide-D)

The Wide Dynamic Range divides an image into several blocks for correcting blocked-up shadows and blown-out highlights by the intensity difference.

Spot Focus · Spot AE · Spot AWB

This feature Enables AF, AE, and AWB only in specified areas within the screen. It also allows for the independent specification of any rectangle of the entire screen divided into 6 x 8.


Image Sensor

1/1.8-type STARVIS™ CMOS Sensor (Approx. 4.17M pixels)

Output Image Size (H x V)

1920x1080, 1280x720

Signal System 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25,  1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25
Minimum illumination (50%, High Sensitivity Mode ON) ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (Shutter Speed: 1/4 s or 1/3 s) ICR-On mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (Shutter Speed: 1/4 s or 1/3 s, 30%)
Minimum illumination (50%, High Sensitivity Mode OFF) ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (Shutter Speed: 1/4 s or 1/3 s) ICR-On mode: 0.00063 lx (Shutter Speed: 1/30 s)
Recommended Illumination 100 lx to 100,000 lx
Image S/N 50 dB (Weight On)


Auto/Manual (0 dB ~ 50.0 dB), 0 ~ 28 steps

Shutter Speed

1/1 ~ 1/10000 s, 22 steps

Sync System


Exposure Control 0 dB ~ ± 10.5 dB, 15 steps

Back Light Comp



Standard / Straight gamma

Aperture Control

16 steps

White Balance

Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB

AE (Auto Exposure Mode)

Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE


30x Enhanced Optical Zoom / 36x Stable Zoom / 12x Digital Zoom

Lens (wide to tele)

f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 ~ 4.8

Zoom Mode

Standard Mode / Variable Mode / Direct Mode

Zoom Movement Speed

WIDE end to TELE end: 5.3 s (Focus Tracking ON), 2.8 s (Focus Tracking OFF)

WIDE end to TELE digital end: 6.6 s (29.97p/59.94p), 6.9 s (25p/50p)

WIDE digital end to TELE digital end: 1.4 s (29.97p/59.94p), 1.6 s (25p/50p)

Focusing System

Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger, Near Limit, ICR-on Correction, Spot Focus

Focus Movement Time ∞ to Near: 1.4 s

Horizontal Viewing Angle

58.1° to 2.3°

Minimum Object Distance (wide end to tele end)

100 mm to 1200mm

Camera Features Auto ICR (B/W), Wide Dynamic Range, Visibility Enhancer, Defog, Noise Reduction, Progressive Scan Mode, Image Stabilization, Spot Light Avoidance, Motion Detection, Privacy Zone Masking, Alarm, Monochrome picture effects, Picture Freeze, Electronic-Flip (E-FLIP), Mirror Image, Slow Shutter, Temperature Readout, Title Display (20 characters/line, max. 11 lines), Camera Mode Display (English)

Video Output

Digital : Y/Pb/Pr 4:2:2 (MIPI) Y:8bit, C:8bit RGB 4:4:4 (MIPI) R:8bit G:8bit B:8bit (Y/Pb/Pr no supported for 1080i/60, 1080i/59.94, 1080i/50)

Camera Control Interface

VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit

Power Requirements

7.0 V ~ 12.0 V DC

Power Consumption

4.7 W (When motor operates: 6.8 W)

Operating Temperature / Humidity

‐5 °C ~ +60 °C / 20% to 80% (Absolute humidity: 36 g/m3)

Storage Temperature

‐20 °C ~ +60 °C / 20% to 95% (Absolute humidity: 36 g/m3)

Dimensions (W x H x D)

56.0 x 64.0 x 125 mm (2.25 × 2.63  × 5.00 in.)


Approx. 439 g (15 oz.)


Sony 9500 Series Brochure
