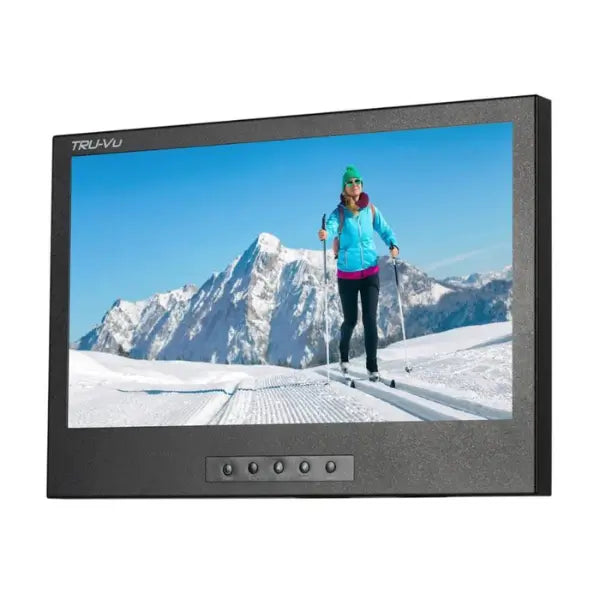

Tru-Vu Monitor VMOBX-15.6Z 15.6” Daylight Readable LCD Monitor Package

Tru-Vu Monitors Vendor Logo SKU: EM17402

• Optical Bonding Dramatically Reduces Reflections and Eliminates Image Wash-Out In Bright Conditions; Improves Image Contrast
• Produces Clear, Bright Images Even in Bright Daylight
• LED Backlights
• Anti-Glare Protective Glass
• High Shock & Vibration Resistance
• 3-Year Warranty
Package includes:
• EM16541 TRU-VU Monitor, VMOBX-15.6Z
• EM12586 PS-12-LC: Power Supply w/Locking Connector
• EM19216 TRU-VU Base Stand 15" Monitor TTB-15

Tru-Vu

Description

Details

Tru-Vu Monitor VMOBX-15.6Z 15.6” Daylight Readable LCD Monitor Package

15.6″ DAYLIGHT VIEWABLE MONITOR

The VMOBX-15.6 Series is an optically-bonded 15.6″ daylight, viewable monitor. We design it for use as an outdoor display in indirect sunlight. It is also recommended indoors, where high ambient light decreases the view-ability of standard LCD monitors. The VMOBX-15.6 Series features a 16:9 aspect ratio. This 15.6″ outdoor monitor display also features an extensive operating temperature range. It has rear VESA mount holes and our 3-year warranty.

What is Optical Bonding?

Some monitors have a sheet of glass over the LCD panel. This protects the panel from accidental or intentional damage. However, the glass also produces unwanted glare and reflections. Internal reflections in the mirror and LCD panel air gap diminish image quality even further. To combat this, monitors are optically bonded.

Optical bonding is laminating protective glass or a touch screen panel to the LCD panel. An optical-grade resin is inserted between the glass and LCD. This fills the air gap. It will not only eliminate the internal reflections but increase the contrast ratio. This makes the screen much more viewable in bright light conditions. Optical bonding will also eliminate internal moisture and condensation.

Moreover, it will make the monitor more rugged and durable. Lastly, an Anti-Reflective coating is applied to the outside of the glass. Consequently, this will drastically reduce glare and surface reflections.

Optical bonding ensures monitors will be highly viewable in bright, indirect sunlight. If sunlight is falling directly onto the face of the monitor, our SRM or SX Series of Sunlight Readable monitors would be most advantageous. Our Sunlight Readable monitors provide 1,000 nits to 2,500 nits brightness. They are for use in direct sunlight.

EXTREME OPERATING TEMPERATURES

We design these daylight viewable screens to operate in nearly any environmental condition. These daylight monitors will survive and thrive in frigid conditions or blazing heat. To clarify, some of these monitors will operate in temperatures down to 14°F (-10°C). They will also withstand brutal heat. Moreover, operating temperatures go up to +158°F (+70°C).

The rugged powder-coated steel enclosure will also assure years of reliable imaging performance. Specifically, the typical MTBF for these monitors is 50,000 hours. These daylight readable LCDs are also available with an optional waterproof enclosure.



Package includes:

  • EM16541 TRU-VU Monitor, VMOBX-15.6Z
  • EM12586 PS-12-LC: Power Supply w/Locking Connector
  • EM19216 TRU-VU Base Stand 15" Monitor TTB-15



Specifications

LCD Panel

15.6” Color TN LCD; LED Backlights

Display Resolution

1920 x 1080 Full HD

Display Area

13.55” (W) x 7.62” (H) (344.16 x 193.59 mm)

Pixel Pitch

.17925 mm

Display Colors

16.7 Million

Aspect Ratio

16:9

Brightness

400 nits

Contrast Ratio

700:1

Viewing Angle

160˚ (H) x 140˚(V)

Response Time

8 msec Trf

Control

OSD (On-Screen Display) via Front Panel Pushbuttons

Video Inputs

VGA, HDMI, DisplayPort

VGA, HDMI, BNC Loop-Thru, HD SDI

Power Requirement

12 VDC / 90-240 VAC

Power Consumption

20 Watts

Enclosure

Powder-Coated Steel

Mounting

75 mm x 75 mm VESA Hole Pattern

Operating Temperature

14˚ to + 158˚ F (-10˚ to +70˚ C)

Dimensions

368.8 (L) x 246.3 (W) x 44.3 (D) mm 14.519” (L) x 9.696” (W) x 1.744” (D)

Weight

TBD

Approvals

RoHS

Shipping Weight: 5 lbs

Shipping Dimensions: 20" x 16" x 6"



Downloads

TruVu_VMOBX_Fact_Sheet (370.77 kB)
