Ultrasonic Single Element Transducer Telescoping Pole Inspection Device

SeeUV Brand Logo SKU: EM19979

• Ultra-lightweight telescoping pole carbon composite
• Gimbal fixture at distal tip
• Easy to handle and transport
• Flaw detection and gauging the thickness of out-of-reach pipes, beams, vessels
• Includes 5 MHz x 0.375" GE Benchmark Series Fingertip Contact Single-Element Transducer
• Optional single-element transducers available: 2.23, 3.5, or 10 MHz

SeeUV

Description

Details

Ultrasonic Single Element Transducer Telescoping Pole Inspection Device

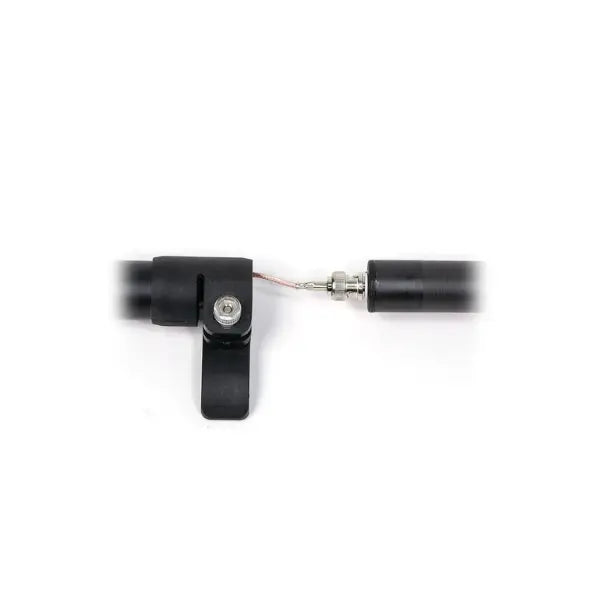

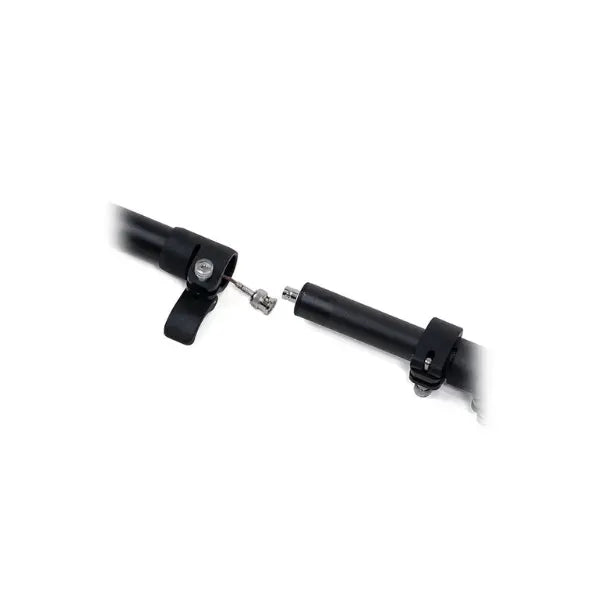

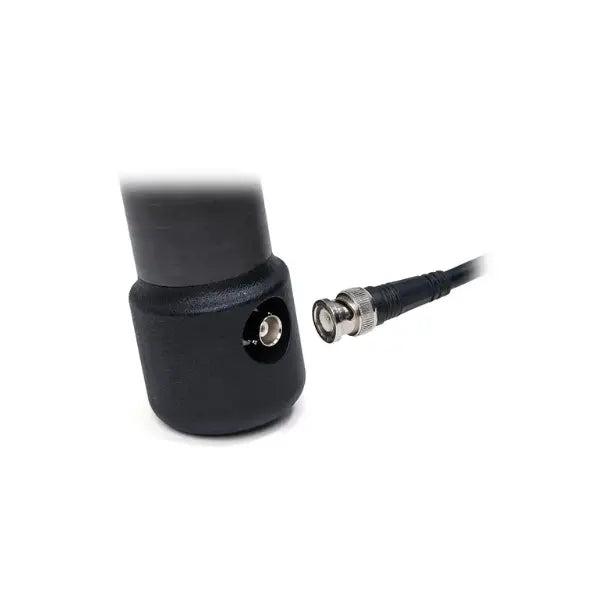

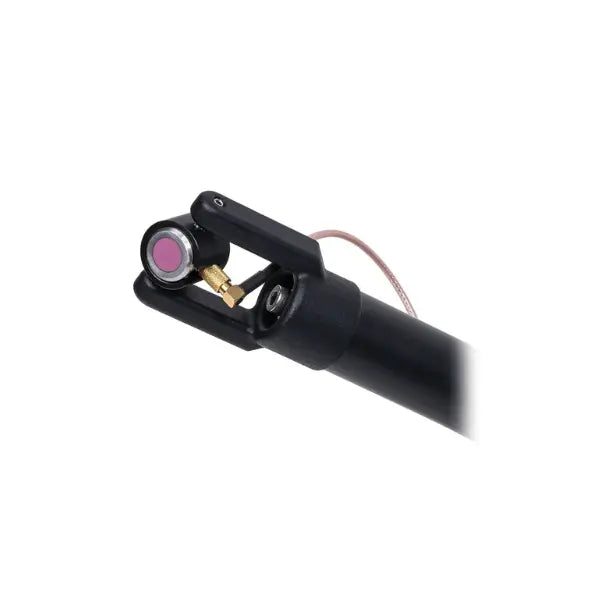

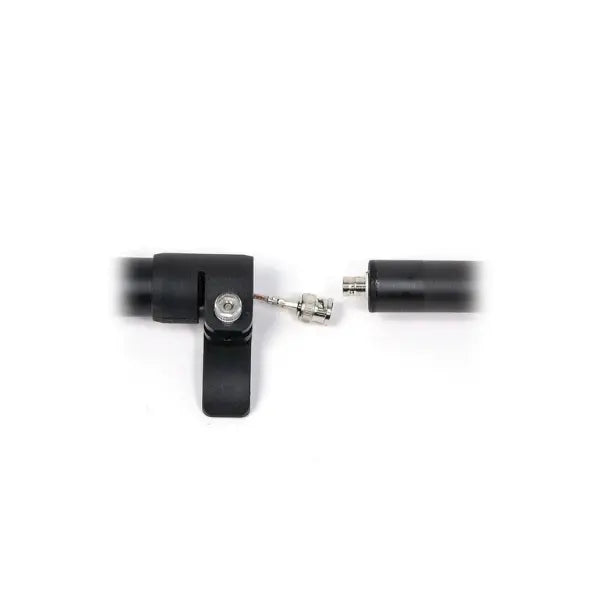

The ultrasonic sing element transducer inspection device is used for flaw detection and gauging the thickness of out-of-reach pipes, beams, vessels, and fixtures. Compatible with most ultrasonic testing systems using the standard BNC connector, the carbon composite telescoping pole with a gimbal fixture at the distal end allows transducer placement and easy length adjustment. A 5 MHz x 0.375” GE Benchmark Series fingertip contact single-element transducer is included. 2.23, 3.5, or 10 MHz transducers are also available.

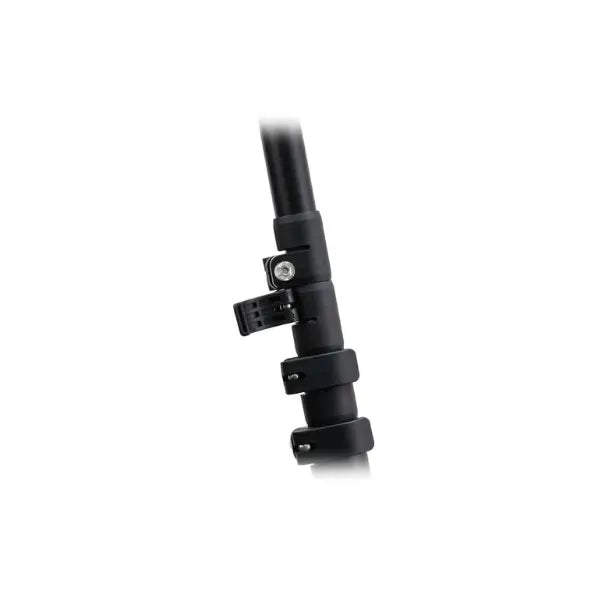

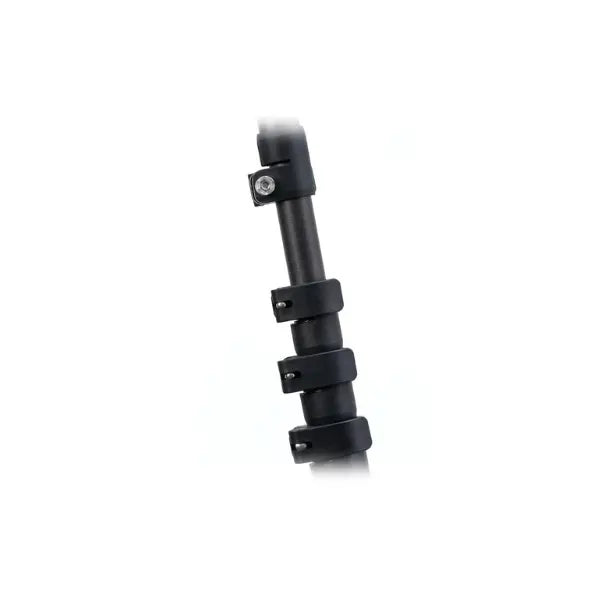

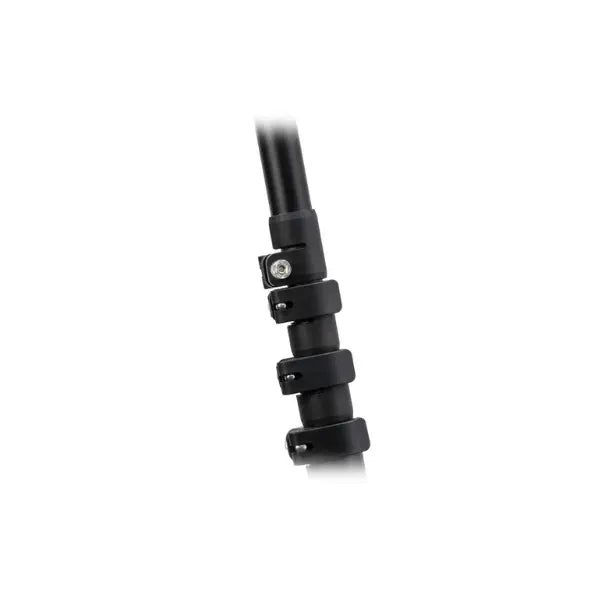

The pole is lightweight and easy to handle. Its no-spin pole set construction is 4.5 lbs, 93 inches (7.65 ft) collapsed length, and 276 inches (23 ft) extended length. The "shepherd" pole construction makes for superb utility to reach pipes, beams, and vessels up off the ground.

Specifications

Pole Type No-spin carbon fiber
Weight 4.5 lbs
Collapsed Length 93 inches (2.3 m)
Extended Length 276 inches (7 m)
Disassembled Length 48 inches (1.23 m)
Included Transducer

5 MHz x 0.375" GE Benchmark Series Fingertip Contact Transducer - Single element

Optional Transducers

2.23, 3.5, 10 MHz
