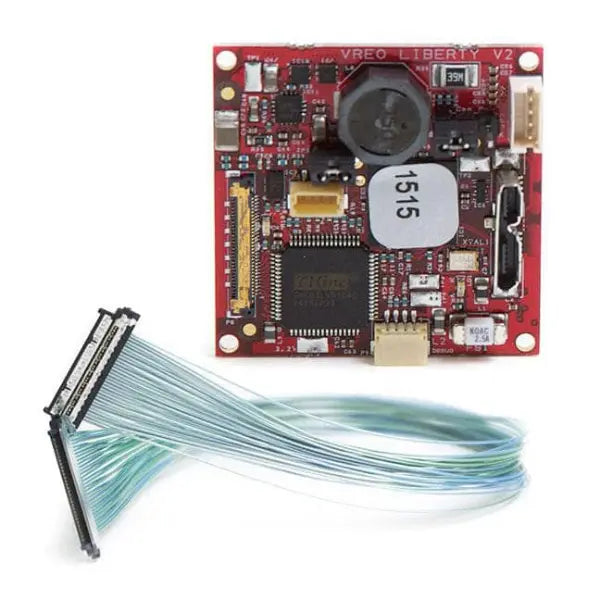

USB 3.0 Liberty Interface Board and Micro Coax 30 Pin Cable Kit for Sony EV & EH Block Cameras

InterTestSKU: EM15443

Description

Details

USB 3.0 Liberty Interface Board and Micro Coax 30 Pin Cable Kit for Sony EV & EH Block Cameras

USB 3.0 board and Micro Coax Cable Kit for Sony  block cameras is capable of streaming 1080p at 30fps and include push button inputs for camera zoom control, PWM output for external LED light control, and an efficient selectable power supply for the attached camera. Compatible with Sony FCB-EV7500, FCB-EV7520, FCB-EV7300, FCB-EV7320, FCB-EV7310,  FCB-EV7100,  FCB-EV5500,  FCB-EV5300,  FCB-EV6500,  FCB-EV6300,  FCB-EV3410,  FCB-EV3310, and FCB-EV3150.

LIBERTY extends the range of cameras that can be integrated into your USB 3.0 products. This board provides a USB3.0 interface for the well established SONY FCB block cameras providing a cost effective way to bring USB 3.0 into your product lines, reducing time to market and development costs. LIBERTY is a very compact and efficient solution allowing a one cable interface to a PC and comes with free bespoke application called OneView which will help you evaluate the board and camera for your application.  LIBERTY is capable of streaming 1080p at 30fps over USB 3.0 and includes a push button inputs for camera zoom control, PWM output for external LED light control, and an efficient selectable power supply for the attached camera. As well as being powered completely over the USB bus, Liberty allows the user to command the camera using free bespoke program OneView.

LIBERTY communicates with the SONY Block cameras with a micro coaxial cable connected to the back of the board while also providing the power for the camera over the same connection, making auxiliary power cables optional.   The board also features a dip switch selectable power output for cameras which use a different voltage making a future camera upgrade or repair faster and much cheaper.

 LIBERTY has a small form factor of only 37mm x 37mm x 12mm making it the smallest solution of its kind!  Even though the board is tiny, LIBERTY efficiently streams Full HD video without compromise directly into a PC and is fully compatible with free bespoke program OneView as well as other UVC programs.  LIBERTY is a perfect choice for both, brand new systems being designed for future use, and older systems that are getting updated and upgraded.

Markets and Applications:
