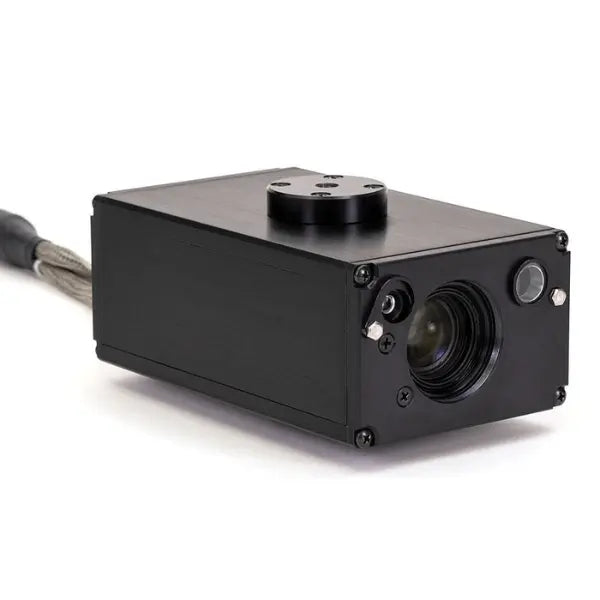

The Visible Welding® WeldWatch® Weld Camera Kit is designed to enhance weld training and quality assurance for live arc weld viewing. The WeldWatch® uses an ultra-dynamic range (UDR) 3x zoom camera inside a rugged housing and powerful computing software to produce a clear image of live welding. The welding torch/tip, base metal, grove, and puddle appear on any HD monitor or screen, ensuring proper technique, angles, alignment, and torch/part speed. The camera is used in industries such as welding/fabrication, general manufacturing, and welding education.
Beyond live weld viewing, an operator can easily record video and still images for analysis, email, or archiving making this system suitable for remote welding inspections. With a UDR of over 10,000,000:1, the camera captures the welding process and part without filters.
The UDR feature of the camera is the key to producing clear and useful welding images. A welding arc can be a million times brighter than the surrounding metal, far exceeding high-end industrial and specialty cameras' capabilities. The Visible Welding® WeldWatch® HD reaches UDR levels by combining the camera's high dynamic range log sensor with powerful digital signal computer processing. Together they produce dynamic live welding images making the Visible Welding® WeldWatch® Weld Camera Kit an essential welding education and quality assurance tool.
FEATURES
Camera
- Full Color, resolutions up to 1280x1024
- 140 dB dynamic range (10,000,000:1)
- 30 fps (frames-per-second) at 1280x800
- Built-in Lens with optical zoom
- No optical filters required
Factory ready
- No need for cooling at room temperature operation
- Air-cooling capabilities for ambient temperatures up to 212º F (100º C)
- Bright LED for targeting
- USB-3 Connection for power and communication
- Compact size 2” x 3” x 4.7” (50 mm x 75 x 120 )
WeldWatch® PC Software
- Low Latency Digital Image Processing
- Proprietary Log Rendering
- Rotate, flip the image
- Integrated Recording and Playback
- Digital zoom 1x – 10x (1x to 30x total)
Specifications
| Camera | |
| Resolution | Up to 1280 x 1024 px |
|
Frames per second |
30 fps at 1280 x 800 px |
| Dynamic Range | 140 dB (10,000,000 : 1) |
| Zoom | Optical zoom 3x, Digital zoom 10x |
| Focus distance to object range | 9 - 50 inches |
| Field of view | 41º (horizontal - wide), 12º (horizontal - narrow) |
| Focus | Remote |
| Iris | Automatic, f/2.5 |
| Weight | 680 g |
| Dimensions | 2" x 3" x 4.7" (50 x 75 x 120 mm) |
| Computer Software | |
| Auto-recording | Triggered by arc-light, starts recording 2 sec before and after arc |
| Video file format | AVI or MPEG |
| Playback | Fast, slow, single-step, forwards/reverse |
| PC Requirements | Intel i5 processor or above, 4 GB RAM, Windows 10 |
Items Included
- EM18621 - WeldWatch® HD Computer Software
- EM19546 - WeldWatch® HD Camera Assembly
- EM14822 - WeldWatch® HD Ultra-Dynamic Range Accessory Kit
- EM69007 - WeldWatch® HD 16" Protective Carrying Case
