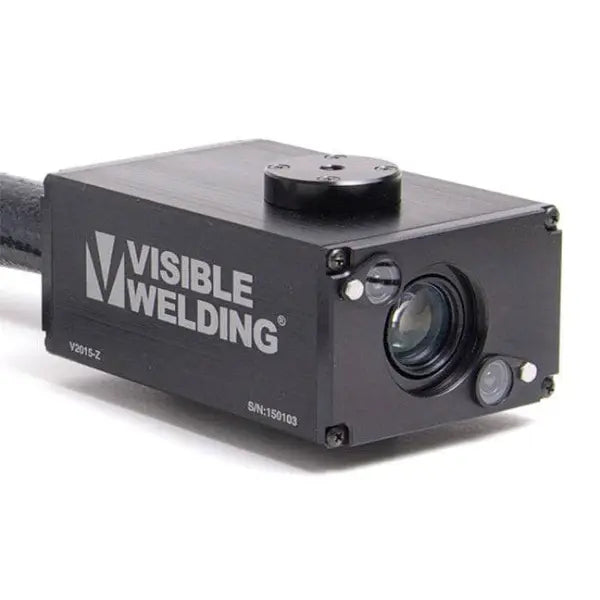

Visible Welding® WeldWatch® Weld Camera with Ultra Dynamic Range and Software with HF Start Protection - Cooled Version, 5M
The Visible Welding® WeldWatch® welding camera is specially designed for live viewing of arc welding. In addition video and stills can be digitally recorded for analysis, email or archiving.
With a dynamic-range of over 10,000,000:1, the camera can capture both arc and metal simultaneously. See the arc, electrode, puddle, joint and surrounding metal before, during and after the welding process.
Ultra-Dynamic-Range (UDR) is the key to effective welding images. A welding arc can be a million times brighter than the metal, far exceeding even high-end industrial and specialty cameras.
The Visible Welding® WeldWatch® reaches UDR levels by combining the latest High Dynamic Range (HDR) log sensor with powerful digital signal processing. Each complements the other resulting in a quality and dynamic-range greater than either alone.
The system is supplied with the capability to provide Air Cooling to the camera, so it can operate in environments with higher than ambient temperatures. Supplying 15 psi of 'shop' air to the supplied cooling lines will allow the system to operate in environments of up to 350ºF.
Specifications
Resolution | 1280(H)x1024(V) |
Interface | USB 3.0 |
Sensor format | 2/3 inch |
Sensor type | Monochrome/ Color |
Pixel pitch | 6.8µm |
Mode | Rolling/Global shutter/ Differential |
Spectral response | Visible |
Dynamic range | 140dB typical |
ADC | 14 bits |
Frame rate | 37 fps |
Trigger | IN/OUT (LVTTL) |
Power consumption | < 1.5W |
Power Range | 4 to 12V |
Dimension | 48.6x48.6x47.4mm |
Lens | 3x Zoom |
Weight | < 700kg |
Temperature Range | 0°C to +70°C |
Videos
For a full video library, visit our Video Library
Weldwatch® EDU Unboxing Video
TIG on Stainless Steel
MIG on Steel
Downloads
WeldWatch Software Ver. 5.20.12051 May, 2021
WeldWatch Camera Head Dimensional Drawing
