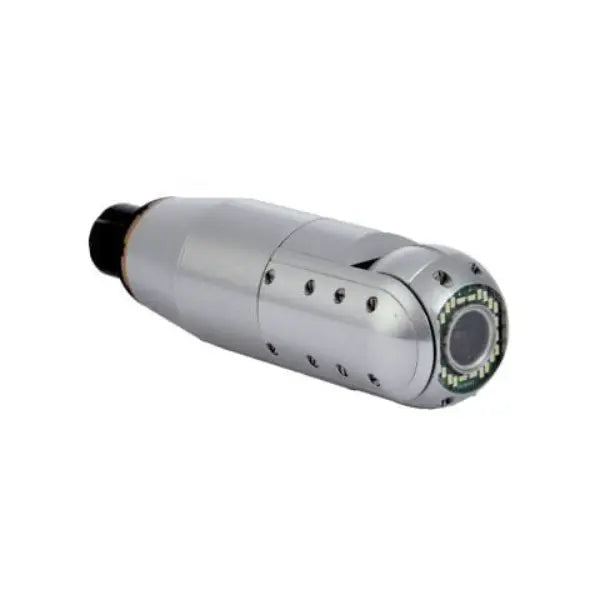

VISIOPROBE VP45A Pan Tilt Camera Head - 45 mm OD Aluminum

SKU: EM30987 MFG: VP45A

• 45 mm OD
• Pan 360°, Tilt 110°
• Aluminum housing
• Focus 5mm to ∞
• 80° Field of view (wide)
• 24 White LEDs
• Waterproof (up to 2 atms/bars)

Sale price Login to see prices

Intertest Cost

Description

Details

VISIOPROBE VP45A Pan Tilt Camera Head - 45 mm OD Aluminum

The VISIOPROBE VP45A Pan Tilt Zoom Camera Head - 45 mm OD is an aluminum pan & tilt camera with a wide 80 degrees field of view. Other features include a 1/4" color sensor, a panning range of +/- 360 degrees, and a tilting range of +/- 110 degrees. The fixed focus is from 5mm to infinity with 80 degrees FOV. Twenty-four ultra-bright white LEDs with intensity control illuminate the darkest inspection areas. Its sapphire glass and aluminum housing provides ample camera protection and can withstand water depths of up to 2 atmospheres/bars pressure.

The camera measures 141 mm long and weighs 0.45kg

EM#  Product
EM30855 VISIOPROBE VPBAI400 Camera Control Unit
EM31007 VISIOPROBE VPCAB002-P Camera Cable - 2 meters
EM31008 VISIOPROBE VPCAB005-P Camera Cable - 5 meters
EM31010 VISIOPROBE VPCAB7_5-P Camera Cable - 7.5 meters
EM31021 VISIOPROBE VPCAB010-P Camera Cable - 10 meters
EM31024 VISIOPROBE VPCAB015-P Camera Cable - 15 meters

EM31025

VISIOPROBE VPCAB020-P Camera Cable - 20 meters
EM31026 VISIOPROBE VPCAB030-P Camera Cable - 30 meters
EM31027 VISIOPROBE VPCAB036-P Camera Cable - 36 meters
EM31029 VISIOPROBE VPCAB050-P Camera Cable - 50 meters
EM31036 VISIOPROBE VPCAB060-P Camera Cable - 60 meters
EM31037 VISIOPROBE VPCAB070-P Camera Cable - 70 meters
EM31039 VISIOPROBE VPCAB100-P Camera Cable - 100 meters



Specifications

Camera Head

Outer Diameter 45 mm
Pan Range 360° infinitely
Tilt Range -110° to +110°
Optical Zoom None
Image Sensor 1/4" CMOS 1080p
Resolution 640 x 480 px
Video output PAL
Focus/Depth of Field f = 2.6mm, 5mm - infinity adjustable
Field of View 80°
Shutter Auto/Manual
Lens Cover Sapphire glass
Light Sensitivity N/A
Aux Lighting/Intensity 24 white LEDs/3760 lux @ 70 mm distance
Water Resistance 2 bars/atms
Operating Temperature -30° to 65°C
Material Anodized aluminum
Weight 0.9 kg (2.0 lbs)
Length 141 mm
