XBlock® Indoor USB-C Viento-10 LWIR Camera

XBlock Vendor Logo SKU: EM13030

• High-performance, cost-effective LWIR camera core

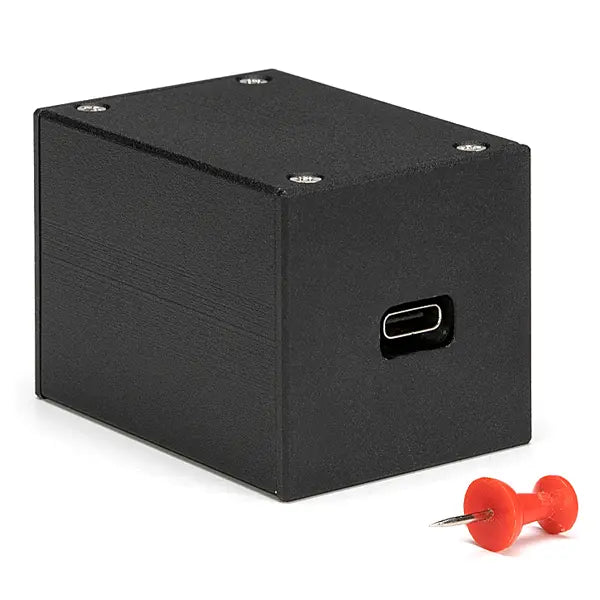

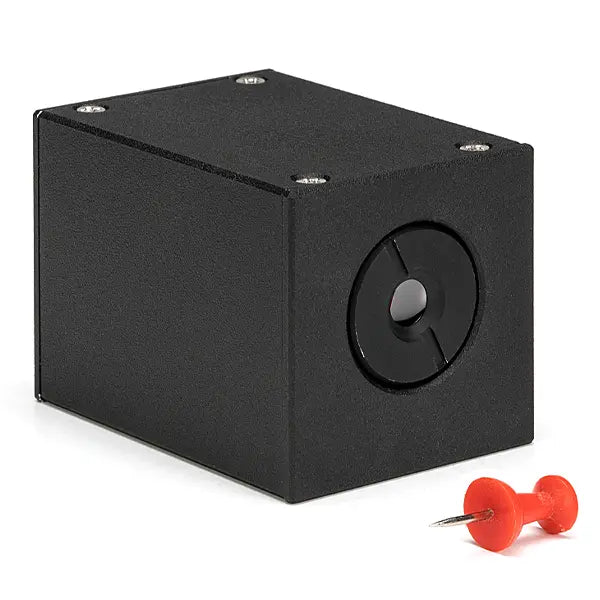

• Compact Aluminum Housing
• 50°, 25°, & 18° HFOV lens options

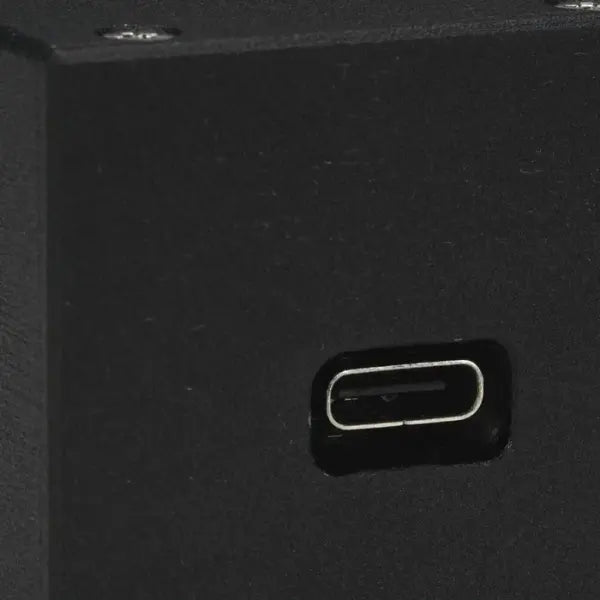

• USB 3.0 Video (UVC)
• Smallest pixel pitch LWIR available

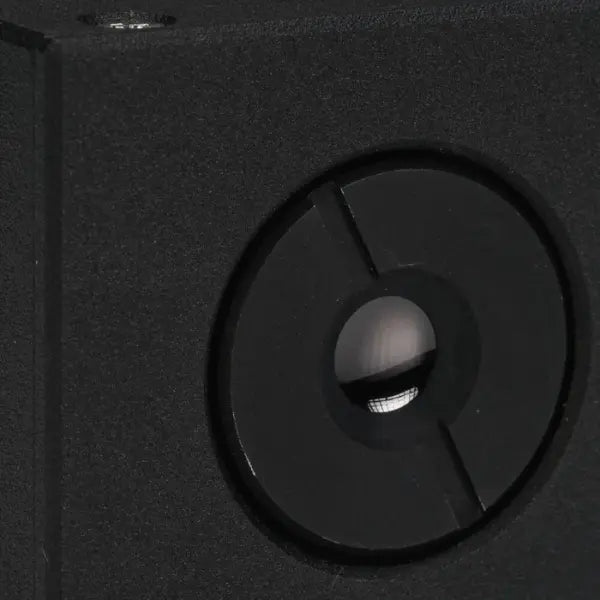

Lens: f = 7.7mm / 50° HFOV

Description

Details

XBlock® Indoor USB-C Viento-10 LWIR Camera

The XBlock® Indoor USB-C Viento-10 thermal USB-C camera is a cutting-edge, competitively-priced, small form factor camera core that delivers exceptional imagery inside a plug-and-play, indoor-rated housing. The camera comes in 3 different lens options (50°, 25°, & 18° horizontal field-of-views).

The Microbolometer has a ten μm pixel pitch and <30 mK NETD sensitivity, the Viento-10 represents the latest evolution in low SWaP (Size, Weight, and Power) long-wave infrared technology. The Viento-10 integrated with a USB-C interface board and integrated into an Aluminum enclosure harnesses the power of this advanced thermal imager and allows for real-world indoor use cases.

The interface allows for motion detection, APIs for Zoom, image manipulation, and configuring the color LUT(Look Up Table).


Specifications

Lens 7.7mm, 15mm, 20mm
Horizontal Field of View 50°, 25°, 18°

Housing Type

Aluminum

Detector Type

Uncooled VOx Microbolometer

Array format

640 x 512

Pixel Pitch

10 μm

Spectral response

LWIR

FPS

60 Hz (9 Hz option available)

Sensitivity (NEdT) @ f/1.0

<50 mK

Sensitivity w/ 3-D noise filter

<30 mK

Analog Video

NTSC/PAL (requires feature board)

Digital Video

14-bit/8-bit LVCMOS or Camera Link®

Communication Interfaces

UART/RS-232; USB 2.0

Image Enhancement

Image Contrast Enhancement (ICETM) with gain and level bias controls

External Sync

Yes

Color

24-bit RGB and YUV (4,2,2) Superframe

3-D Noise Filter

User option to enable < 30 mK NETd

Digital Zoom and Pan

Region of Interest, E-zoom from 1X - 4X

Non-Uniformity Correction

1-point with shutter or through lens

Time to First Image

< 3.0 seconds

Input Voltage

3 - 5.5 V Base Configuration 4.5 - 18 V with Feature Board

Operating Temp Range

-40°C to +70°C (-40°F to +158°F)

Weight

132 g

Dimensions

51.8 x 38.2 x 38.2 mm

Power Consumption

2.3 W

Downloads

Sierra Olympia Viento-10 Data Sheet
