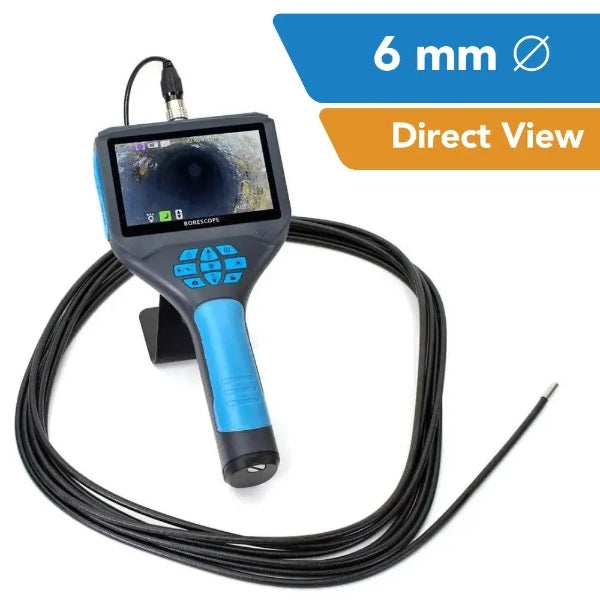

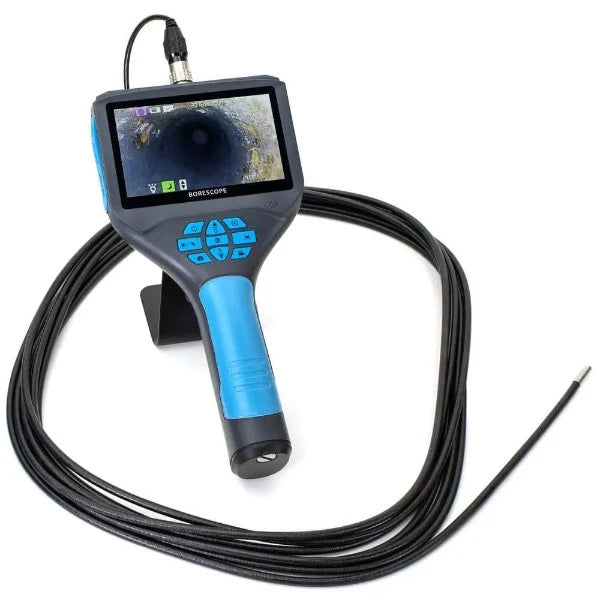

The Yateks B Series portable endoscope is a professional inspection tool developed for diagnosis and maintenance. Images display at 640 X 480 (more than 300,000 pixels) resolution on the 4.3 inch wide angle display with true color representation and anti-glare finish to avoid the inconvenience of reflections during inspection.
Specification
|
Dimension/Weight |
246 x 321 x 123 mm / 2.3 kg |
|
Display Screen |
4.3 inch wide viewing angle screen |
|
Control Lever |
Electric rocker with lens able to rotate 360 degrees, automatic set, direction fine tuning adjustable, locking |
|
Functions |
Photo, video, brightness control, image zoom, image freeze, image locking and image flip |
|
Storage |
TF Card (32 GB maximum) |
|
I/O port |
SD card, TV Out and USB |
|
Battery/Standby time |
18650 Lithium batteries (6 Hours) |
|
Signal Output |
PAL & NTSC |
|
Compatibility |
Support different diameter probes |
|
Operation System |
Real-time multitasking operation system |
|
User Interface |
Touch screen operation menu |
|
File Management |
Support image and video play, delete, format memo and naming |
|
Image Format/Video Format |
JPEG, AVI |
|
Language |
English / Chinese / Korean / German / Russian / Japanese |
|
White Balance |
Automatic, manual white balance |
|
Exposure Mode |
Automatic, manual |
|
Monitor Working Temperature |
-10～50° |
|
Probe Working Temperature |
-20～70° |
|
Relative Humidity |
Highest 90%, no condensation |
|
IP Rating |
Monitor IP54 / Probe IP67 |
