The Yateks Inspexa 3D Industrial Video Borescope shares the same 8" Full HD touchscreen monitor, ergonomic handle, and motorized articulation as the standard Inspexa system, so operators already familiar with Inspexa can pick it up immediately. The 3D measurement capability comes from Yateks' Realta 3D engine built into the probe itself — a dual megapixel high-sensitivity industrial camera paired with real-time 3D measurement processing that generates a live 3D point cloud, depth map, and profile of the object being inspected, with real-time verification of each selected measurement point to help avoid the inaccuracy that comes from point-selection error.
Designed for both benchtop and field applications, the Inspexa features an 8" Full HD (1920 x 1200) touchscreen monitor — a significant upgrade over the 720p display on the P+ Series — all-way motorized articulation, and a robust portable design powered by dual rechargeable lithium-ion batteries for up to 3 hours of runtime per set. Built for nondestructive testing, it delivers the clarity, control, and accuracy professionals rely on, making it ideal for aerospace, power generation, and other demanding RVI environments.

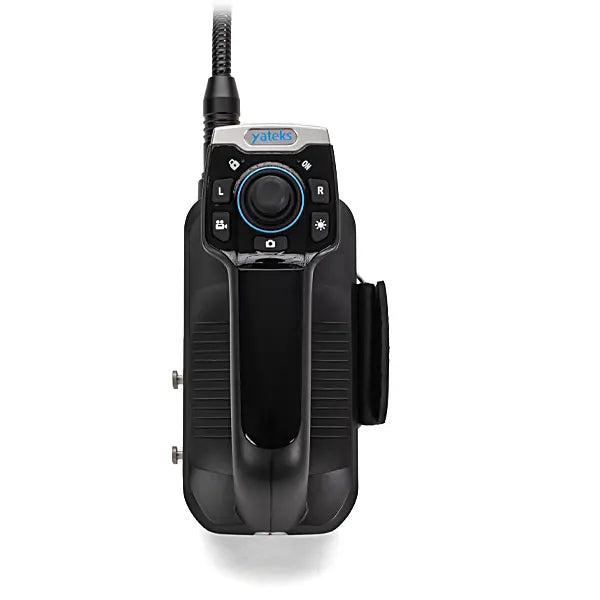

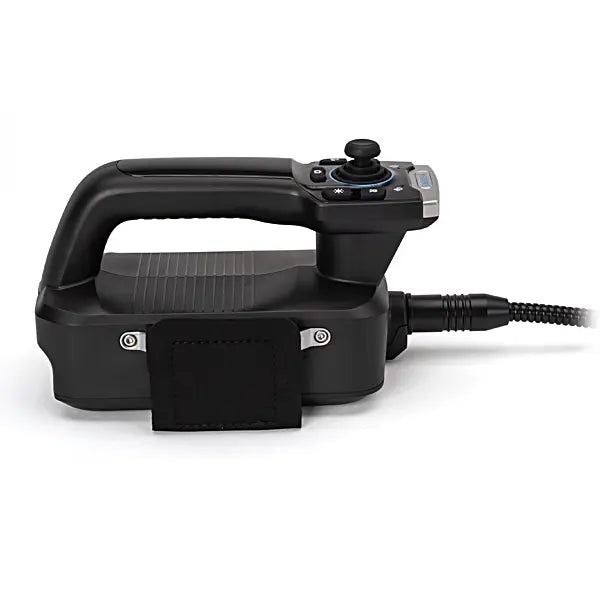

A 360° electric joystick provides smooth probe articulation with lock and reset functions, making navigation through complex components simple and reliable. Measurement point clouds can be exported in PLY format for offline review and documentation.
New and improved features of the Yateks Inspexa 3D Series include:
- Built on Yateks' Realta 3D measurement platform — dual megapixel high-sensitivity camera with real-time 3D point cloud, depth map, and profile generation
- Integrated 3D Measurement — point-to-point, point-to-line, point-to-plane (depth), multi-line length, area, and profile, with real-time accuracy verification of each selected point
- Full HD 1920 x 1200 monitor display — a significant upgrade over the 720p monitor on the P+ Series
- PLY point cloud export for offline review and documentation
- WiFi streaming
- Improved articulation control for precise movements and navigation

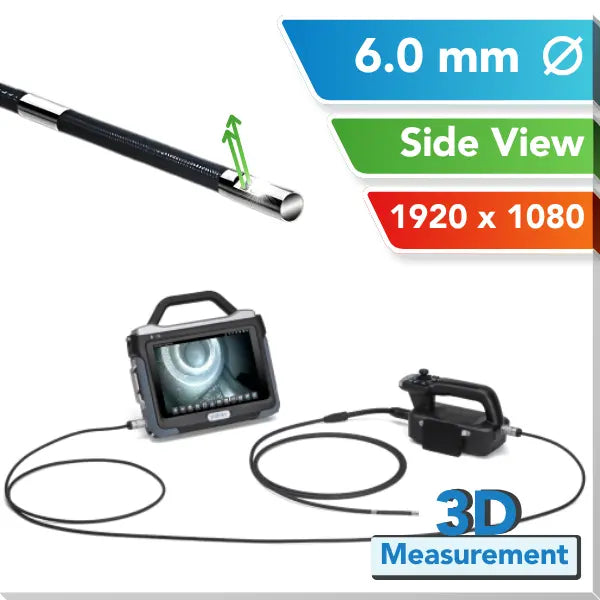

The Yateks Inspexa 3D 6.0 mm video borescope delivers 1920 x 1080 pixel resolution with a side view, 85°±10° field of view, and 17–200 mm depth of field. White LED illumination reaches up to 60,000 lux. Articulation range varies by probe length: 170°±10° at 1.0 m and 1.5 m, 150°±10° at 2.0 m, and 120°±10° at 3.0 m.
Specifications
| Diameter | 6.0 mm |
| Resolution | 1920 x 1080 pixels |
| Direction of View | Side 90° |
| Depth of Field (DOF) | 17 - 200mm |
| Field of View (FOV) | 85°±10° |
| Illumination Source / Type | LED / White |
| Intensity | 60,000 lux |
| Probe Articulation Range | 170°±10° (1.0 m length), 170°±10° (1.5 m length), 150°±10° (2.0 m length), 120°±10° (3.0 m length) |
| 3D Measurement Modes | Point-to-point distance, point-to-line distance, point-to-plane depth, multi-line length, area, profile |
| Dimensions / Weight | 333 x 229.5 x 116.5 mm / 2.3 kg |
| Display Screen | 8″ IPS industrial HD touch LCD screen with 1920 x 1200 resolution |
| Control Lever | Electric joystick, 360-degree rotation, articulation lock, all around camera guidance |
| Functions | Image capture, video recording, playback, articulation, illumination control, screen brightness adjustment, zoom in/out, screen flip, screen invert, screen freeze, color mode adjustment, display ratio, grid measurement, automatic white balance (AWB), image/video browse, lock fine-tune, menu, support. Point-to-point, point-to-line, point-to-surface, etc. measurements. |
| Storage | Built-in 128G + extended 64G USB flash drive (up to 256G) |
| I/O port | Mini HDMI, USB-A port, USB-C interface, Headset interface |
| Battery | Four rechargeable 18650 lithium-ion batteries |
| Brightness Control | 10 level adjustment |
| Full System | Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter |
| Compatibility | Interchangeable with all Inspexa series probe sizes, lengths, and styles |
| Operating System | Real-time multifunctional operating system |
| User Interface | Touchscreen operation menu |
| File Management | Supporting picture / video playback, deletion, formatting, naming, and annotation |
| Image Control | Digital zoom, image and video playback, freeze-frame, flip image, mirror image |
| Image Format/Video Format |
BMP / JPG / PNG AVI / MP4 |
| Language | English / Spanish / Portuguese / French / German / Chinese (simplified and traditional) / Korean / Russian / Japanese |
| Color Settings | 4 modes for different applications |
| White Balance | Automatic, manual white balance |
| Exposure Mode | Automatic, manual |
| Firmware Update | Upgraded via interface |
| Monitor Working Temperature | -10～50° |
| Probe Working Temperature | -20～60° |
| Relative Humidity | Highest 90%, no condensation |
| IP Rating | Monitor IP54 / Probe IP67 |
Items Included
Yateks Inspexa Series Video Borescope Kits include:
- Inspexa Monitor (4 batteries in monitor)
- Inspexa Probe (model of choice)

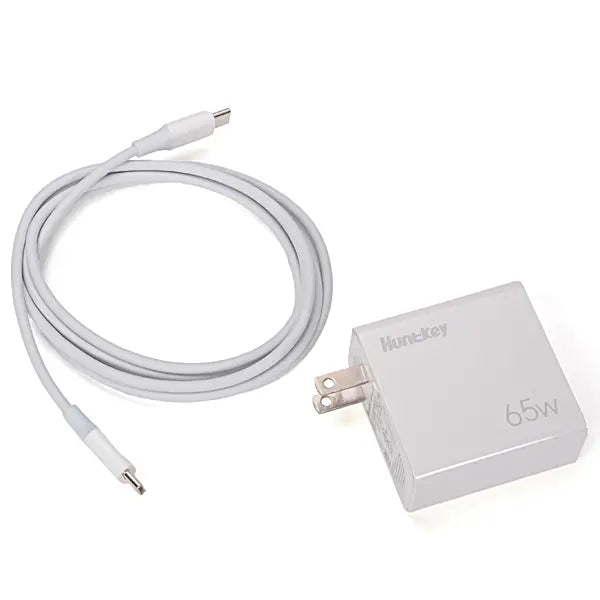

- Charger for monitor (USB-C to USB-C cable with wall adapter)
- Short Inspexa Probe to Monitor cable
- Long Inspexa Probe to Monitor cable
- 32 GB SD card
- USB to SD card reader
- USB-C to USB cable
- HDMI to HDMI cable

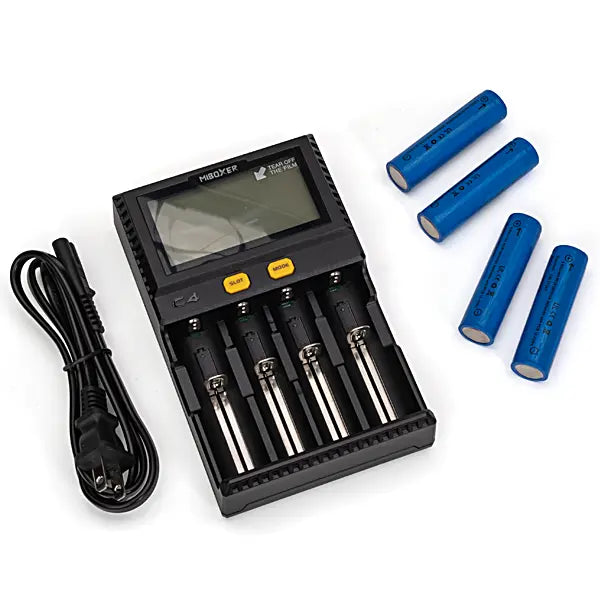

- 4 Spare batteries (Lithium-Ion batteries)
- 4-Port Lithium-Ion Battery charger
- Accessories: Manual, cleaning cloth, cable management strap, strap for hands-free monitor operation
- Robust Carrying Case
