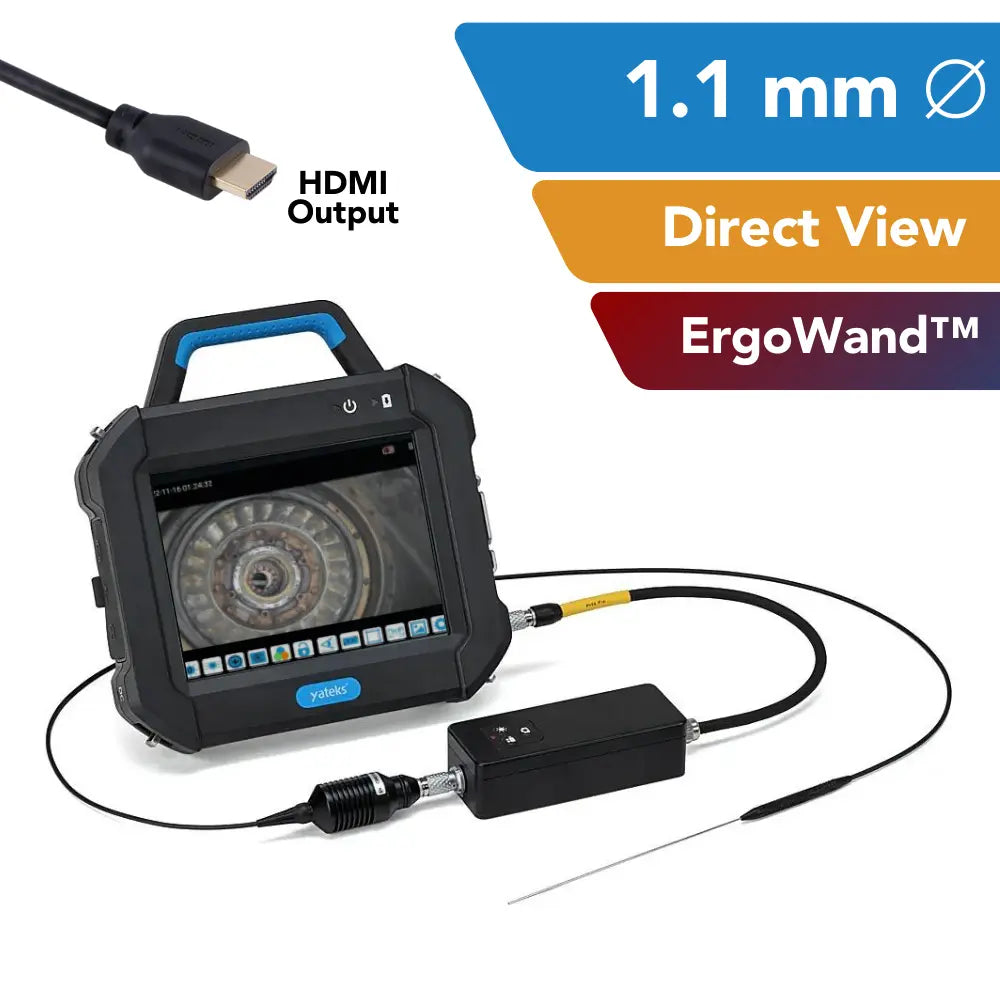

Yateks P+ Series ErgoWand™ Industrial Video Borescope 1.1 mm OD Direct View

Yateks USA Vendor Logo SKU: EM12340

• 1.1 mm Outer Diameter

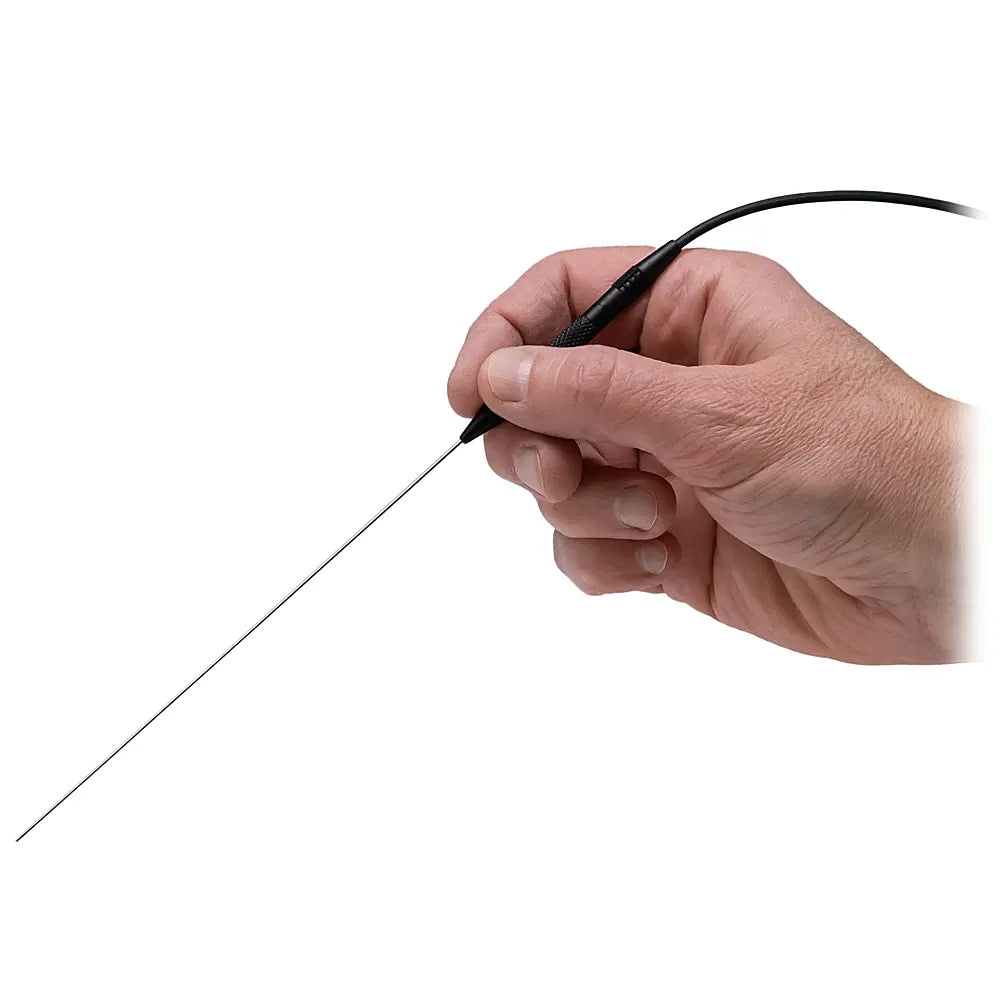

• Ergonomic "wand" configuration for precision inspection control
• Standard working length 150 mm
• Direct View (0° direction of view)
• White Fiberoptic Illumination
• 3-20mm Depth of Focus
• Resolution 400 x 400 pixels
• 8" Touch Screen

Need a different working length? Contact us today!

Working End Configuration: Semi-Rigid

Description

Details

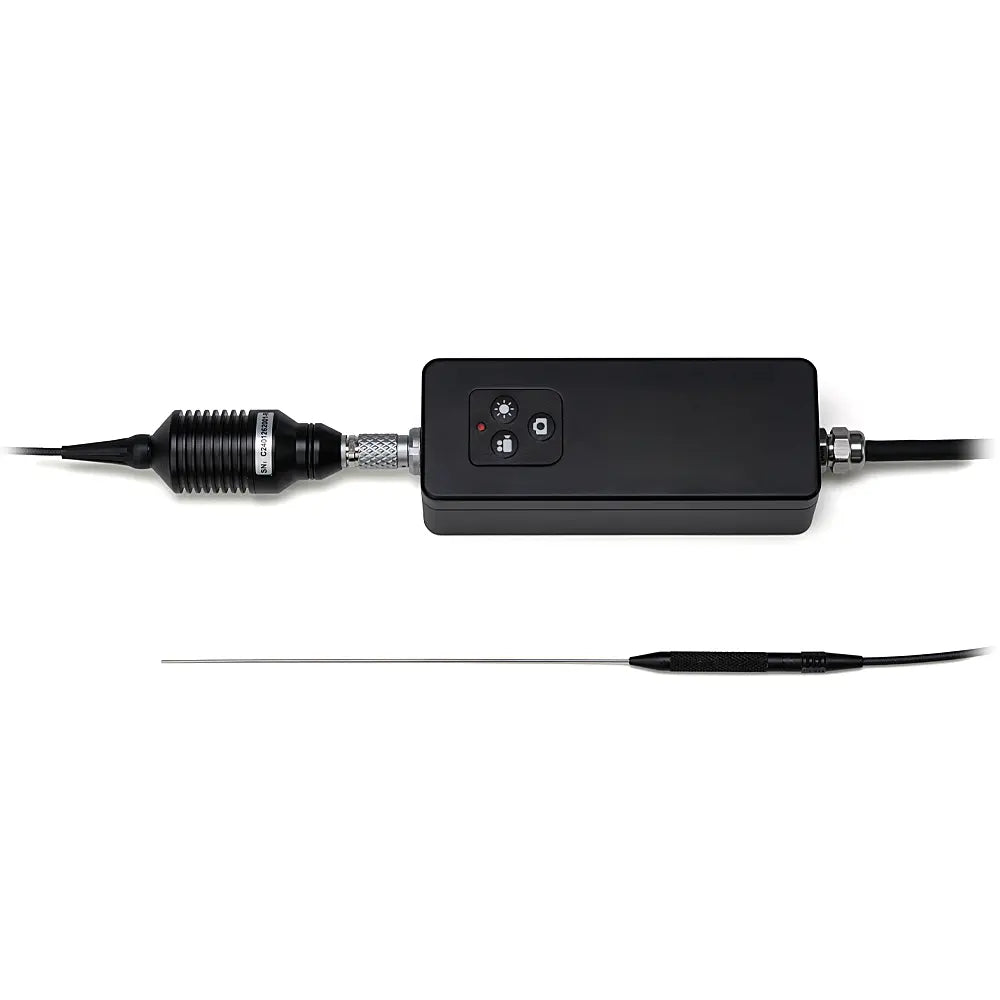

The Yateks P+ Series ErgoWand™ Industrial Video Borescope is a specialized RVI tool for inspecting small part inner diameters (IDs) that require delicate and precise inspection techniques. This configuration uses the standard Yateks P+ Seris Monitor with a digital junction box, which serves as a quick-change point for swapping between semi-rigid or flexible wand-style video borescope probes.

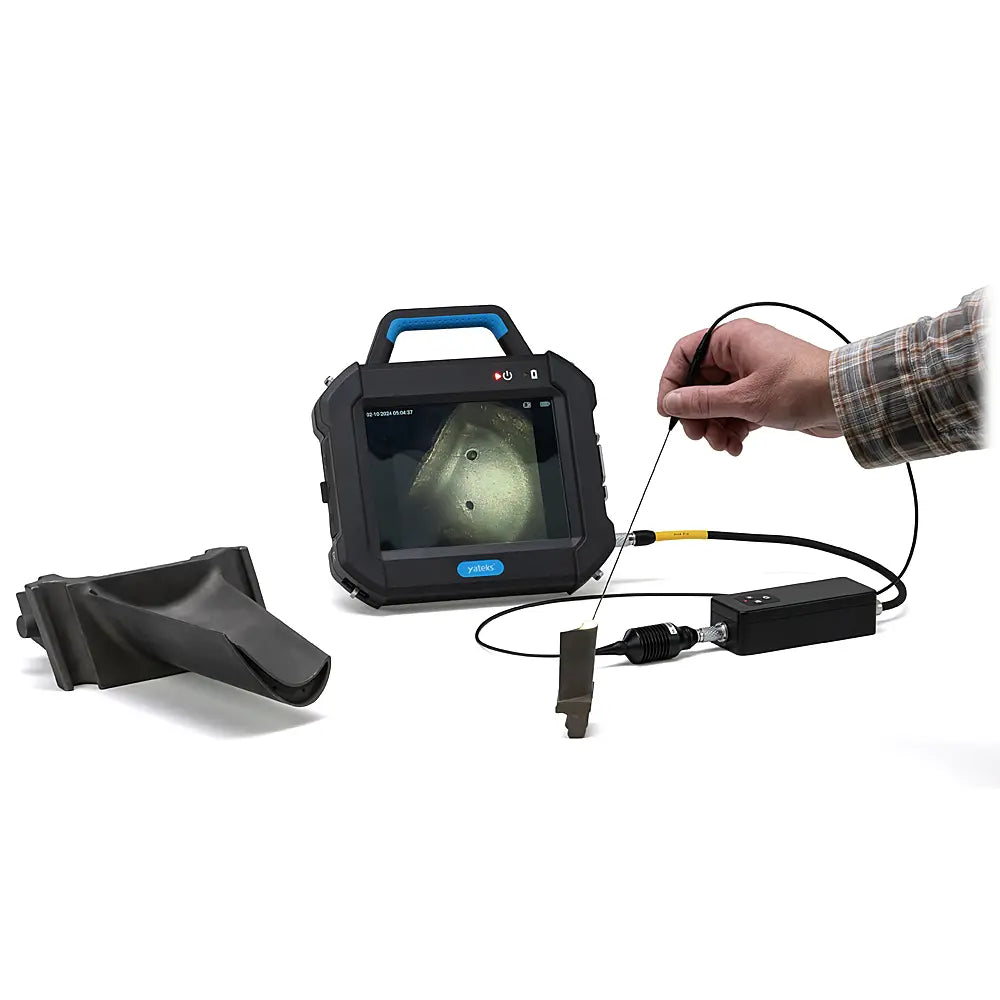

At only 1.1 mm in diameter, the ErgoWand™ inspects the smallest openings and bores in parts found in the aerospace/aviation industry and turbine blade casting inspection applications. ErgoWand™ working lengths can be made to almost any length to best fit your casting inspection needs (The standard length for semi-rigid and flexible working lengths = 150 mm)

The junction box has tactile buttons for capturing still and video images and controlling the intensity of the white light LED. Great for benchtop use, the ErgoWand™ P+ Series is also fully portable, with two rechargeable lithium-ion batteries that can last up to 3 hours per set..

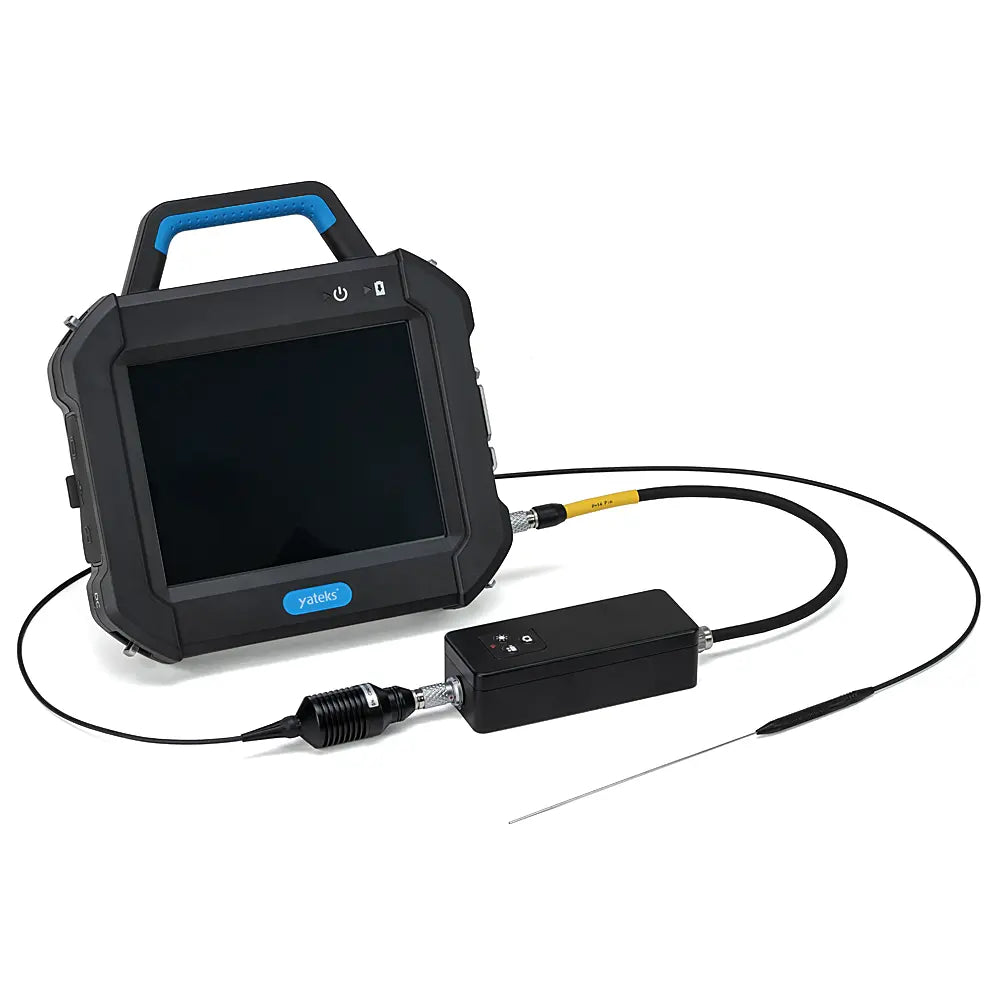

With an 8” HD touchscreen monitor, motorized articulation, and various multi-functional capabilities, the Yateks P+ series is the ideal videoscope system for multi-part inspections and specialty applications.

New and improved features of the Yateks P+ Series include:

  • P+ Series monitor is backward compatible with all Yateks P Series Probes
  • Increased frame rates from 20-25fps to 30fps
  • Optimized software interface and operation modes
  • USB-C port for fast charging and file transfer
  • More compatibility with different lens models, such as interchangeable lenses and 2 MP models
  • Strain relief on the probe for added durability

Need a different working length? Contact us to learn about InterTest's unique capabilities in creating video borescopes and other InterTest product lines to fit almost any industrial application. Our team is ready to assist you with your specific needs.

Specifications

Diameter 1.0 ± 0.1 mm
Resolution 400 x 400 pixels
Direction of View Direct
Depth of Field (DOF) 3 - 20mm
Field of View (FOV) 120°
Illumination Source / Type Fiber / White
Intensity 3000 lux
Probe Articulation Range N/A

Dimensions / Weight

Available soon

Display Screen

8″ IPS industrial HD touch LCD screen with 1024 x 768 resolution (4:3 aspect ratio)

Control Functions

Image capture, video recording, illumination control

Storage

32 GB high-speed SD card (Up to 128 GB)

I/O port

SD card, HDMI port (1024 x 768), charge and mini USB

Battery

Four rechargeable 18650 lithium-ion batteries

Brightness Control

5 level adjustment

Full System

Monitor, cable, probe, 8 batteries, battery charger, power supply, HDMI cable, USB cable, shoulder strap, 32 GB SD card, SD card adapter

Compatibility

Interchangeable with all P series probe sizes, lengths, and styles except for 3D measurement

Operating System

Real-time multifunctional operating system

User Interface

Touchscreen operation menu

File Management

Auto or manual file folder creation, rename files

Image Control

Digital zoom, image and video playback, freeze-frame, flip image, mirror image

Image Format/Video Format

JPEG, AVI

Language

English / Chinese / Korean / German / Russian / Japanese

Color Settings

4 modes for different applications

White Balance

Automatic, manual white balance

Exposure Mode

Automatic, manual

Firmware Update

Via SD card service pack

Monitor Working Temperature

-10~50°

Probe Working Temperature

-20~70°

Relative Humidity

Highest 90%, no condensation

IP Rating

Monitor IP54 / Probe IP67
