Z3 Technology FV4K-13A Dual Camera 4K Video Encoder

Z3 Technology Vendor Logo SKU: EM19520MFG: FV4K-13A

• LVDS and CVBS inputs
• Up to 2160p30
• Control and stream video over IP and record simultaneously
• High Quality/Low Latency encoding
• Recording to USB, micro-SD or NFS
• H.265 or H.264 video codecs

REQUIRES CABLE SET FOR OPERATION

Choose A Cable Set

Z3 Technology CBL-0028-01 12 cm KEL Cable
Z3 Technology CBL-0028-01 12 cm KEL Cable
Z3 Technology CBL-0025-01 5 cm KEL Cable
Z3 Technology CBL-0025-01 5 cm KEL Cable
Z3 Technology Q603-KIT/FV2K-KIT/FV4K-KIT Cable Kit for Encoders
Z3 Technology Q603-KIT/FV2K-KIT/FV4K-KIT Cable Kit for Encoders

Description

Details

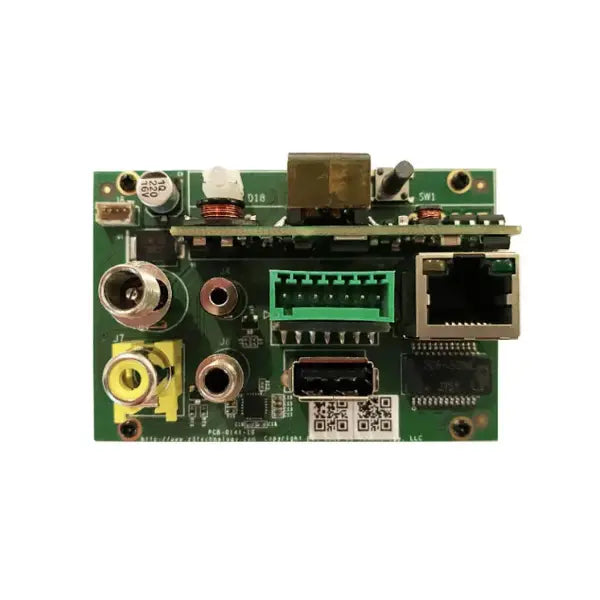

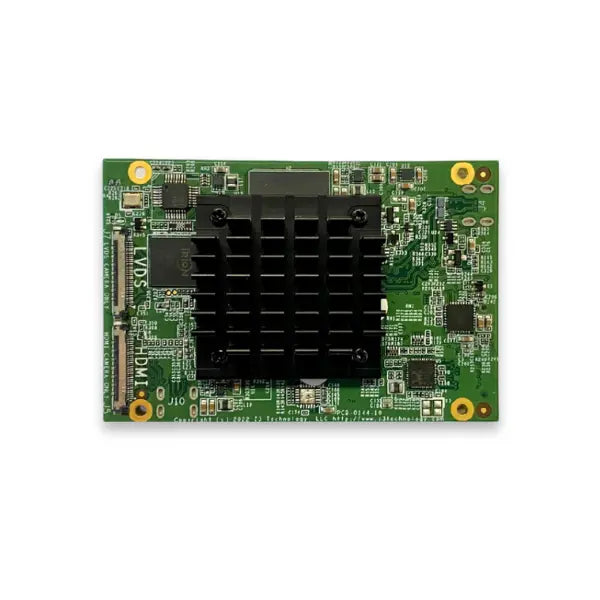

The Z3 Technology FV4K-13A is an encoder board allowing dual integration of a 4K visible camera paired with an infrared or night vision camera. This lets users control, stream, and record 4K and/or thermal imaging over an IP network.

FV4K-13A controls are through the web user interface, Serial/SSH, the API or ONVIF. The board can be powered by external 12 VDC or via ethernet (PoE) power, making the FV4K-13A encoder versatile in almost any network OEM camera system.

The FV4K-13A design is ideal for dual-camera UAV drone surveillance and inspection, surveillance, and industrial applications.


Specifications

HD and SD IR Formats

RS170, NTSC/PAL, and LVDS

Recording

To USB, micro-SD or NFS

Additional Interfaces

GigE, Audio Input, RS-232, Micro-HDMI Passthrough, POE, Composite Output, Serial I/O (RS-232, RS-422, RS-485)

Video Codecs

H.265 or H.264

Encoding Resolutions

2160p30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA

Output Formats

RTP, RTSP, MPEG-2 TS and RTMP

Encoder Board Size

75 x 50 x 33 mm (2.95 x 1.97 x 1.30 in)

Encoder Board Weight

85 g

Power Consumption

4.5W

Power Supply

12V DC or PoE 802.3af/at class 0


Downloads

FV4K-13A Product Brief
