Z3 Technology FV4K-15A Dual Camera 4K Video Encoder

Z3 Vendor Logo SKU: EM19516 MFG: FV4K-15A

• LVDS and CVBS inputs
• Up to 2160p30
• Control and stream video over IP and record simultaneously
• High Quality/Low Latency encoding
• Recording to USB, micro-SD or NFS
• H.265 or H.264 video codecs


REQUIRES CABLE SET FOR OPERATION

Choose A Cable Set

Z3

Description

Details

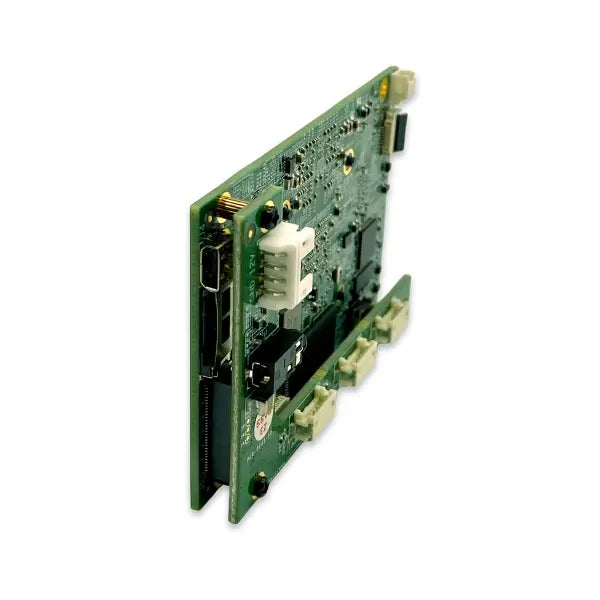

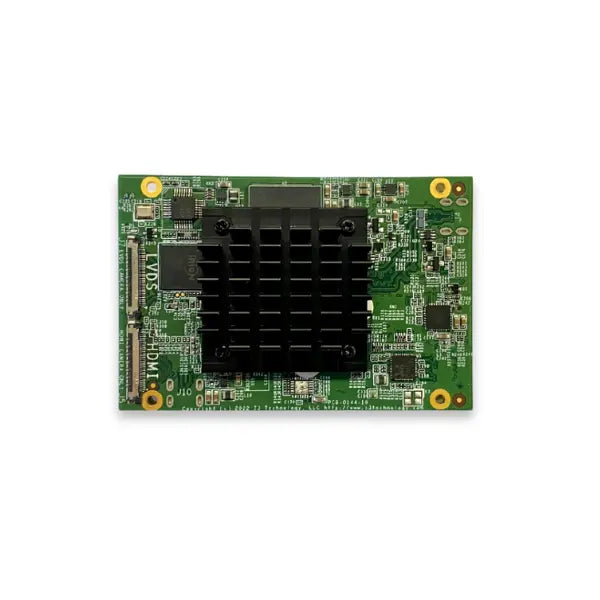

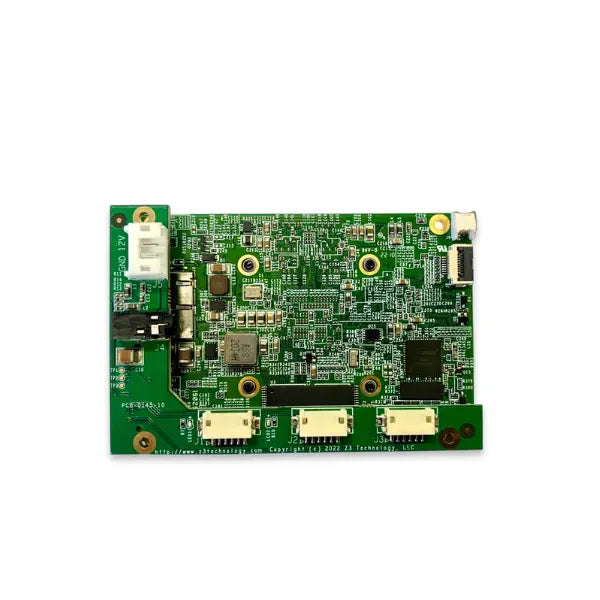

Z3 Technology FV4K-15A Dual Camera 4K Video Encoder

The Z3 Technology FV4K-15A is an encoder board allowing dual integration of a 4K visible camera paired with an infrared or night vision camera. This lets users control, stream, and record 4K and/or thermal imaging over an IP network.

FV4K-15A controls are through the web user interface, Serial/SSH, the API or ONVIF. An external 12 VDC powers the board (NO PoE).

The FV4K-15A design is ideal for dual-camera UAV drone surveillance and inspection, inspection, surveillance, and industrial applications.


Specifications

HD and SD IR Formats

RS170, NTSC/PAL, and LVDS

Recording

To USB, micro-SD or NFS

Additional Interfaces

100 Mbps Ethernet, RS-232, Micro-HDMI Passthrough, Composite Output, LVTTL UART x 2 , GPIO x 2, Micro-SD card

Video Codecs

H.265 or H.264

Encoding Resolutions

2160p30, 1080p (up to 60fps), 720p, NTSC/PAL, VGA, CIF and QVGA

Output Formats

RTP, RTSP, MPEG-2 TS and RTMP

Encoder Board Size

75 x 50 x 33 mm (2.95 x 1.97 x 1.30 in)

Encoder Board Weight

32 g (heat pipe is an additional 10 g)

Power Consumption

4.5W

Power Supply

12V DC


Downloads

FV4K-15A Product Brief
