INTERTEST CUSTOM ENGINEERING SOLUTION

XBLOCK® IP67 IP

30x ZOOM CAMERA

Internet-ready Surveillance Camera with Built-in Heaters


At a Glance

CHALLENGE

CHALLENGE

What needed to be overcome?

  • Perform long-range surveillance in extreme environments
  • Must start up in temperatures as low as -26° C
  • Have access to the live camera footage through internet protocol (IP)
DEVELOPMENT

DEVELOPMENT

What needed to be designed?

  • A system with a zoom block camera with at least 30x optical zoom & IP encoder paired in an IP67 housing
  • An internal heating system to aid the technology to withstand cold temperatures
SOLUTION

SOLUTION

What was the end product?

  • The Sony FCB-EV9520L 30x Zoom Camera with Z3 Q603-15 IP Encoder combination
  • A robust IP67-rated housing with internal heaters that drew minimal power
  • THE CHALLENGE

    THE CHALLENGE

    A large defense company requested a remote visual solution suitable for long-range surveillance. The customer required outdoor IP cameras with HD resolution and a 30x optical zoom that could withstand harsh environments in a wide range of extreme temperatures, including both high heat and cold.

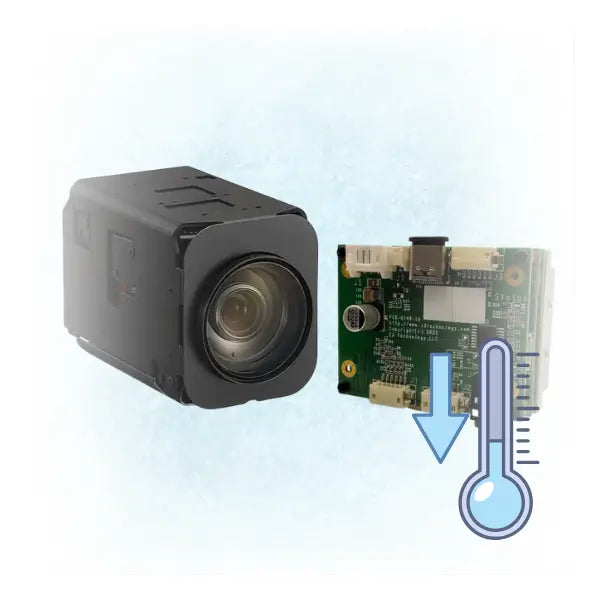

    The cameras required a cold startup at an ambient temperature as low as -26° C, an operation that a standard outdoor camera would not be able to achieve.

    Additionally, the camera needed to be IP-enabled to control over internet.

  • DEVELOPMENT & INNOVATION

    DEVELOPMENT & INNOVATION

    The InterTest team selected the Sony FCB-EV9520L 30x LVDS Block Camera, which offers outstanding clarity with 30x optical zoom and 12x digital zoom. They paired this with the Z3 Technology Q603-15 Video Encoder for HD streaming over H.265/H.265 compression. This duo was the optimal choice; however, the minimum operating temperature for the camera and encoder is -5 °C.

    A heating system needed to be implemented in an IP67 housing, along with a thermostat to accurately regulate the internal housing temperature. A reliable and adequate power source was also required to accommodate all of the components.

  • THE SOLUTION

    THE SOLUTION

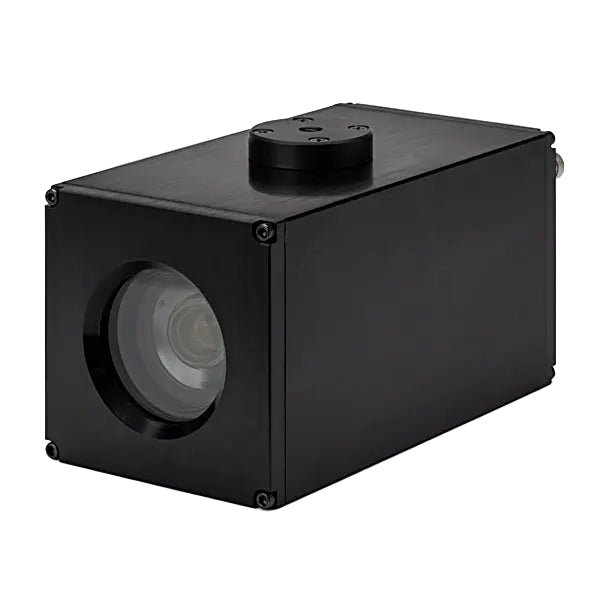

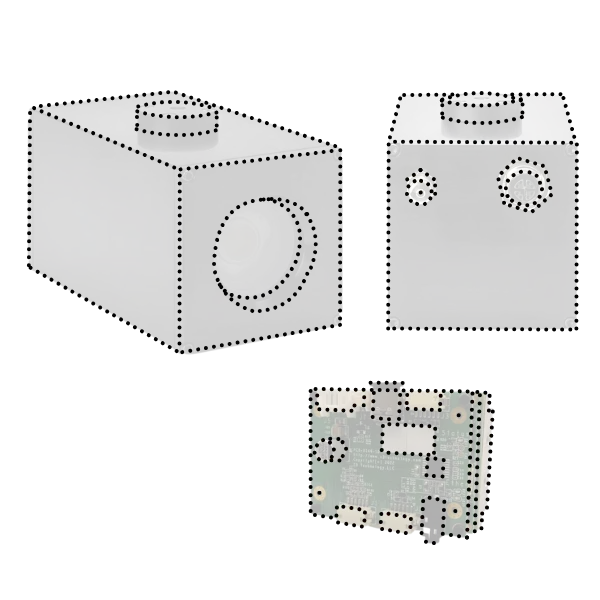

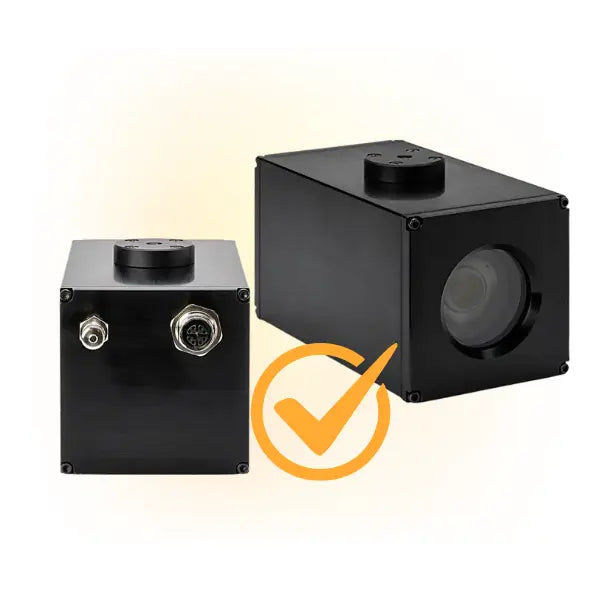

    InterTest engineers packaged the Sony FCB-9520L block camera with Z3 Q603-15 encoder board for this project, due to their combination of high performance, low latency, and reliability. The enclosure consisted of an outdoor IP67-rated housing to sustain performance in a wide range of environmental conditions.

    The critical component was ensuring camera start-up and continuous operation in extremely cold temperatures. The final product includes two heaters built into each housing, drawing a mere 250-280mA of additional current, thereby enabling low power consumption and bypassing the need to add a second power line.

    The final products were tested in a specialized freezer with a digital temperature preset, to ensure the cameras could withstand the temperature demands.

Project Results

  • A robust camera package that withstands hot and cold temperatures

    A robust camera package that withstands hot and cold temperatures

  • An IP-enabled camera to communicate with over a network

    An IP-enabled camera to communicate with over a network

  • Minimal power draw of 250-280 mA even with heating elements

    Minimal power draw of 250-280 mA even with heating elements

*

Related Products

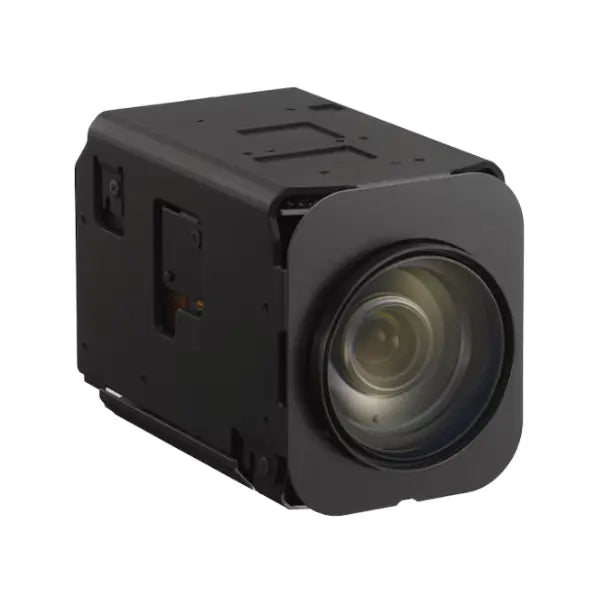

Sony FCB-EV9520L 30x LVDS Block Camera

Sony FCB-EV9520L 30x LVDS Block Camera

Learn More

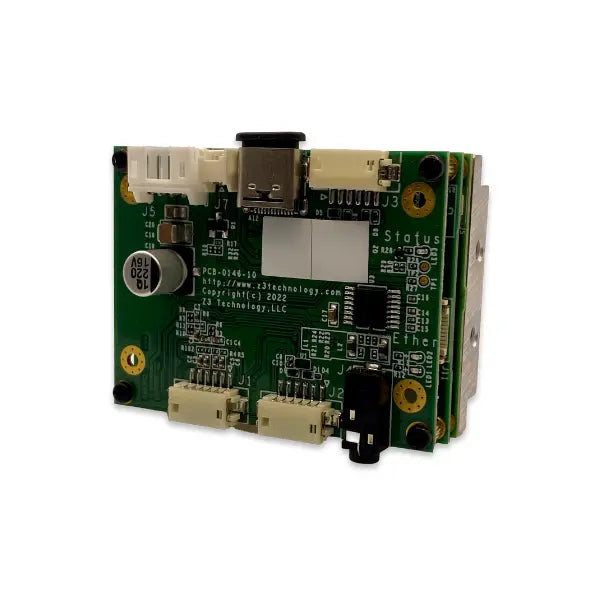

Z3 Technology Q603-15 Video Encoder Interface Board

Z3 Technology Q603-15 Video Encoder Interface Board

Learn More

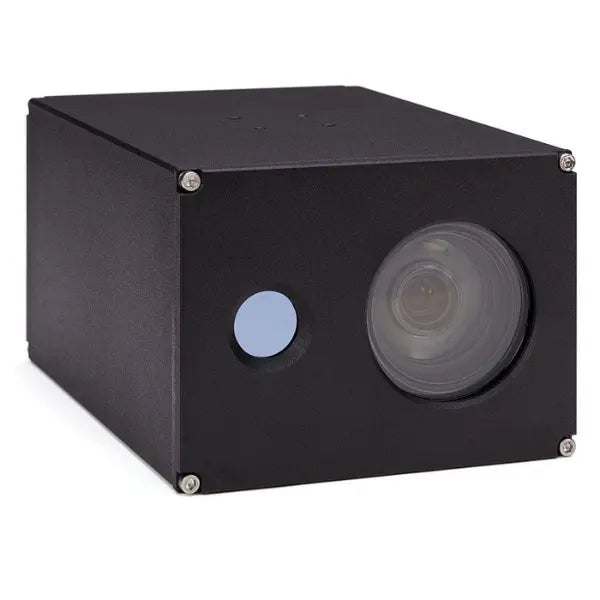

XBlock® Outdoor IP Surveillance Dual HD/LWIR Camera
