Z3 Technology Q603-15 Video Encoder Interface Board

Z3 Technology Vendor Logo SKU: EM18435MFG: Q603-15

• H.265/H.264 single-camera 4K/HD video streaming
• Interfaces with HDMI Visible, LVDS, and thermal cameras
• Support for Sony FCB EV9500H, ER8530, EV9520, EV7520, Leonardo DRS: Tenum and Tamarisk, Flir: Boson and Tau2
• ONVIF Profile S and T Compliant
• NDAA and TAA Compliant
• Full API

REQUIRES CABLE SET FOR OPERATION

Choose A Cable Set

Z3 Technology CBL-0028-01 12 cm KEL Cable
Z3 Technology CBL-0028-01 12 cm KEL Cable
Z3 Technology CBL-0025-01 5 cm KEL Cable
Z3 Technology CBL-0025-01 5 cm KEL Cable
Z3 Technology Q603-KIT/FV2K-KIT/FV4K-KIT Cable Kit for Encoders
Z3 Technology Q603-KIT/FV2K-KIT/FV4K-KIT Cable Kit for Encoders

Description

Details

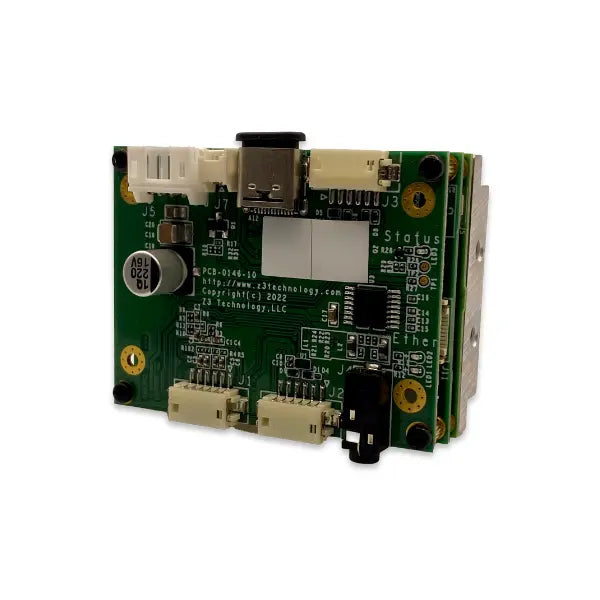

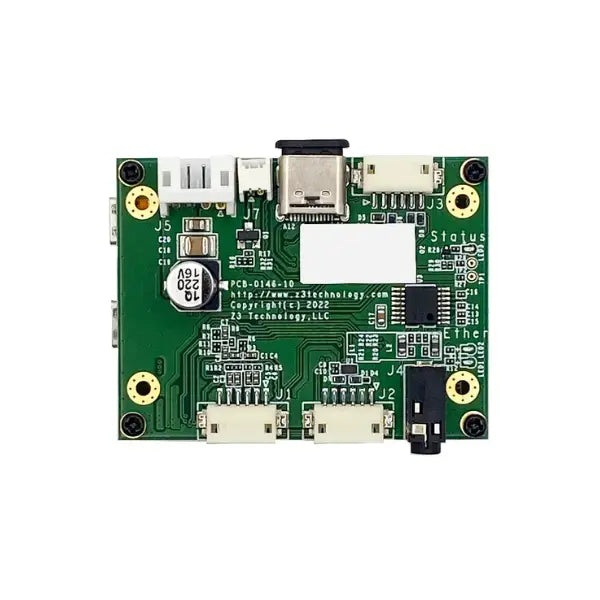

The Q603-15 Board by Z3 Technology is an H.265, H.264, MJPEG video encoder board. The board is compatible with the Sony FCB-EW9500H, FCB-ER8530, FCB-EV9520L, and FCB-EV7520/J. The Q603-15 can connect with a secondary camera like the Tenum or FLIR Boson 640 thermal camera module for imaging in the LWIR light spectrum.

The Q603-15 Video Encoder consists of Input, Encoder, and Connector PCB. The system can encode multiple channels of H.265 and H.264 video in 4K resolutions. The Input board features flexible digital and analog input ports. The encoder can stream over IP and simultaneously record to a USB or micro SD card.

The interface board connects to the Sony module using a 30 Pin Micro-coaxial and has a PoE option for power input. This module can control external devices Via RS-232 or RS-485 for the ultimate building block of your motorized Pan Tilt Zoom Camera.

This board is ideal for Remote VIsual Inspection (RVI), Remote Monitoring, Security, Surveillance, and UAV drone surveillance and inspection applications.



Specifications

Processor Qualcomm QCS603 system on chip processor, Quad-core Arm v8, two cores at 1.6 GHz, two at 1.7 GHz, Snapdragon neural processing engine, Adreno 615 graphics at 780 MHZ

Video Inputs

HDMI 1.4 from Micro-HDMI jack at up to 2160p30 LVDS from KEL connector, KEL connector for 4K cameras Composite Video

Video Output HDMI 1.4 over Micro-HDMI connector

Video Codecs

H.265, H.264, MJPEG encode

Audio Interfaces

Embedded from HDMI

Audio Codecs HE-AAC, HEv2-AAC, AAC-LC

Additional Interfaces

100 Megabit Ethernet, 2 UARTS, 2 GPIO, Micro-SD Card Slot

Power Consumption

5.5W typical

Power Supply Options

1-cell Li battery (onboard charger), USB-C bus power, 12V DC

Operating Temperature

-5°C to +70°C

Dimensions 50 x 38 mm
Weight 34 g (heat pipe is an additional 38 g)
