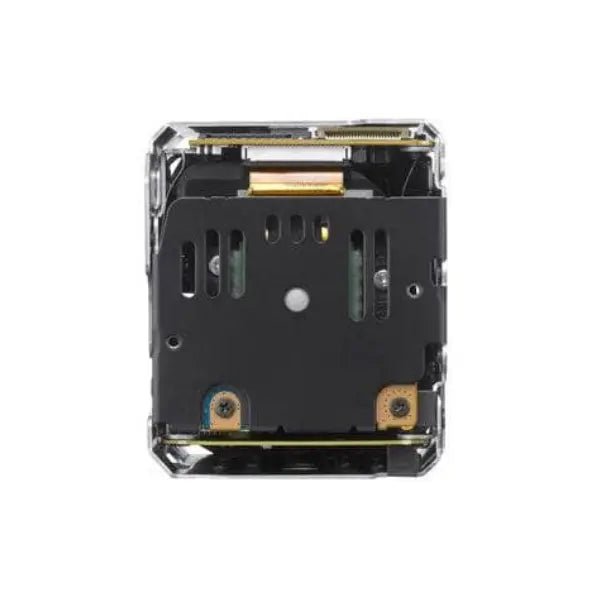

Sony FCB-EV7520/J 30x LVDS/CVBS Block Camera

The high-performance 1/2.8-type Exmor R CMOS image sensor of the Sony FCB-EV7520/J camera achieves superb Full HD (1920 x 1080) picture quality via LVDS signal. Thanks to the latest Sony sensor technology, this camera can produce usable images even in the toughest lighting conditions.

Bright lens with rapid 30x optical zoom

The high-quality lens of the Sony FCB-EV7520/J camera offers a bright F1.6 maximum aperture and 30x optical zoom range. Fast zoom operation (from wide to tell in as low as 3.2 seconds) is ideal for smooth, rapid transitions from wide area coverage to detailed closeups in security and surveillance applications.

Get a steadier picture with image stabilization, StableZoom™

This camera's built-in image stabilizer function counters the effects of blurred, shaky images caused by low-frequency vibration. It is useful for outdoor surveillance and traffic monitoring applications where the camera may be subject to wind or mechanical vibration, such as on a bridge or mounting pole. The Sony FCB-EV7520/J camera's image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view, ensuring no compromise in image size and reduced blurring.

2D/3D Noise Reduction & Defog

Advanced noise reduction technology filters the noise from the image for clearer results, especially in low-light conditions. The noise reduction can be selected from five levels to suit various operating environments. The picture quality of the Sony FCB-EV7520/J camera is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. A defog feature also allows clearer viewing in outdoor foggy or misty environments.

Clear vision round the clock with Auto ICR and High Sensitivity Mode

The Sony FCB-EV7520/J camera is optimized for changing light conditions, a frequent challenge in round-the-clock security operations. In high sensitivity mode, this camera can operate effectively in lighting levels as low as 0.0015 lx (ICR on & High Sensity on). In low light conditions, the camera adapts by switching to day-to-night mode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness.

Spherical privacy zone masking

The Sony FCB-EV7520/J camera allows areas of view to be selectively masked for privacy. Masked areas can be automatically interlocked if the camera pans/tilts/zooms.

One-cable connection for simpler integration

A single cable carries HD video signals, VISCA communication, and power supply to the Sony FCB-EV7520/J camera. Integration flexibility is further supported by 30-pin micro coaxial (digital output) or 24-pin FFC (analog output) interfaces.

Overall, the Sony FCB-EV7520/J Zoom Block Camera is versatile with various features and capabilities that make it ideal for various applications.

Make this your OEM camera for bomb disposal robot cameras, fixed position surveillance, police and security, remote ocean viewing (ROV) robotics, aircraft/aerospace, commercial drones, intelligent traffic surveillance, video conferencing, and House of Worship broadcasting.

Specifications
