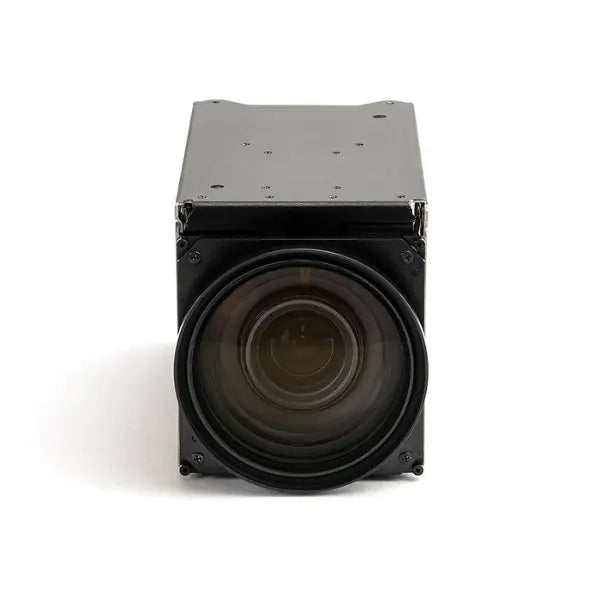

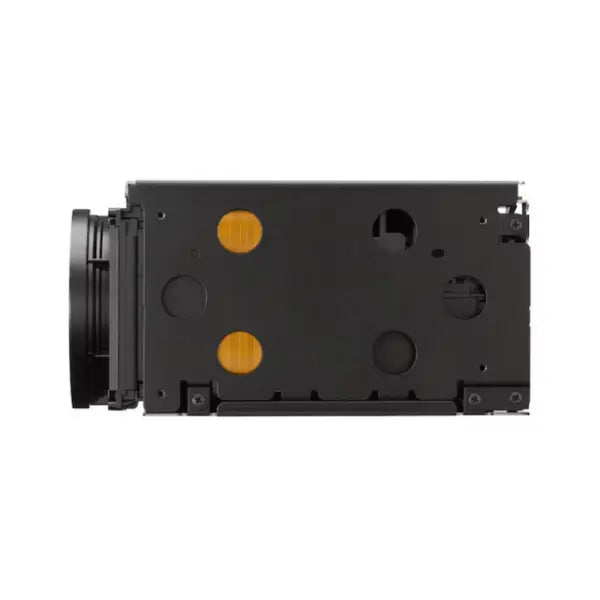

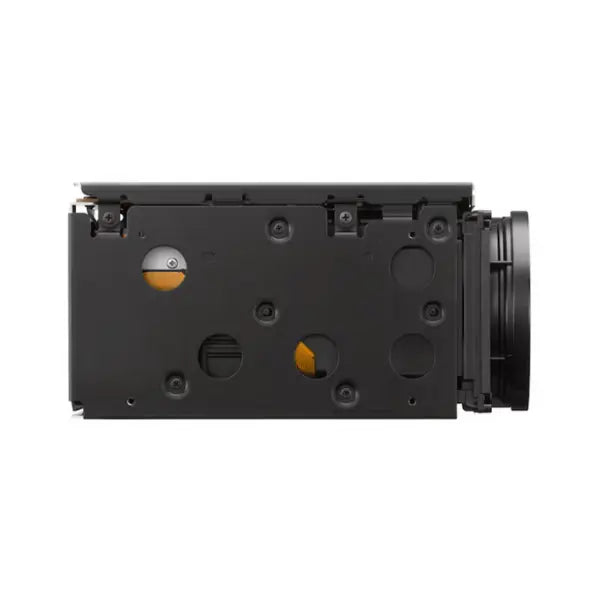

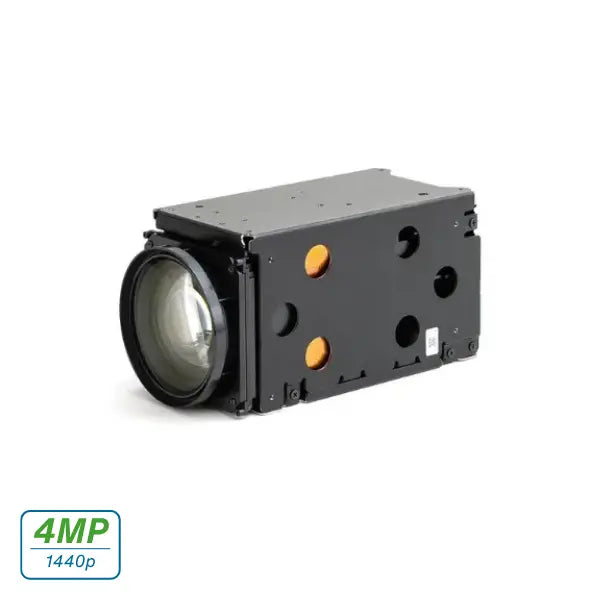

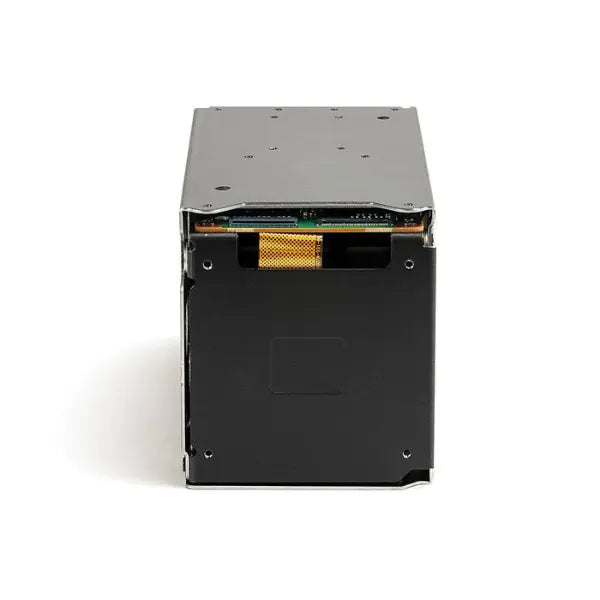

Sony FCB-EW9500H 30x 4MP HDMI Block Camera

Sony Vendor Logo SKU: EM17276MFG: FCB-EW9500H

• HDMI
• 2160p/60 or 1080p/60 output image
• Super Image Stabilizer
• 1/1.8" STARVIS™ CMOS 4.17 million Effective Pixels
• Wide Dynamic Range Mode (Wide-D)

Compatible Interface Board Kits / Encoders

Twiga MCX 6G-SDI 4K Interface Board Kit
Twiga MCX 6G-SDI 4K Interface Board Kit
Twiga BNC 6G-SDI 4K Interface Board Kit
Twiga BNC 6G-SDI 4K Interface Board Kit
Twiga 4K HDMI Interface Board w/ External Sync Kit
Twiga 4K HDMI Interface Board w/ External Sync Kit
Twiga 4K to USB3 Interface Board Kit
Twiga 4K to USB3 Interface Board Kit

Description

Details

Sony FCB-EW9500H 30x 4MP HDMI Block Camera

The Sony FCB-EW9500H 30x 4MP HDMI Block Camera is an over-4 megapixel camera capable of up to 2160p/60 digital HDMI video output. This camera is ideal for both indoor and outdoor applications. Its super image stabilizer, wide dynamic range, and color image acquisition make the Sony FCB-EW9500W Block Camera a superior high-resolution solution despite environmental image-blocking elements such as vibration, mist, and low light.

High Resolution

The sharp lens and 4.17 megapixel 1/1.8-type STARVIS CMOS sensor achieve accurate image representation and superior resolution in digital video format. The superior AF/AE/ AWB functions even in low-light conditions.

30x Optical Zoom

There is no image deterioration with the 30x optical zoom alongside full sharpness, dramatically reduced chromatic aberration in Full HD output, and images with a sharp resolution during 4MP output.

Super Image Stabilizer

It enables the capture of exact video with reduced blurring, even in harsh environments with vibrations, by significantly improving the image stabilizer.

  • Available during full HD or HD output
  • With the “Super” and “Super+ (plus)”* modes

Color image acquisition when ICR ON

Only black and white images are achieved on conventional models while the IR cut filter is off.

The new ICR ON COLOR function allows the camera to capture images with color even with the IR cut filter removed, making it practical for color rendering in darker conditions.

  • The accuracy of color reproduction ranges depending on the light source and brightness.

Super Image Stabilizer

This camera series applies a wide correction area using 4MP by suppressing blurs from vibrations and rotational vibrations compared to conventional models. Based on the scale of vibrations, two modes are available to select from.

  • Super

This feature suppresses strong vibrations with a wider correction area than conventional electronic vibration suppressors.

  • Super+

Employs a wider correction area than “Super,” “Super+” suppresses intense vibrations that the “Super” feature cannot stop.

  • Potential applications include Shipboard, attachments for ITS surveillance, bridges, drones, vehicles, etc.

Wide Dynamic Range (Wide-D)

The Wide Dynamic Range divides an image into several blocks, using the intensity difference for correcting blocked-up shadows and blown-out highlights.

Spot Focus · Spot AE · Spot AWB

This feature Enables AF, AE, and AWB only in specified areas within the screen. It also allows for the independent specification of any rectangle of the entire screen divided into 6 x 8.


Specifications

Image Sensor

 1/1.8‐type STARVIS CMOS Sensor (4.17M pixels)

Output Image Size

2688x1512 / 2560x1440 / 1920x1080 /1280x720

Gain

Auto/Manual (0 dB ~ 50.0 dB), 0 ~ 28 steps

Shutter Speed

1/1 ~ 1/10000 s, 22 steps

Sync System

Internal

Back Light Comp

Yes

Exposure Control

0 dB ~ ± 10.5 dB, 15 steps

Gamma

Standard / Straight gamma

Aperture Control

16 steps

White Balance

 Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto),Spot AWB

AE (Auto Exposure Mode)


Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE

Zoom

30x Enhanced Optical Zoom / 36x Stable Zoom / 12x Digital Zoom

Lens

f = 6.5 mm (wide) to 162.5 mm (tele), F1.6 ~ 4.8

Zoom Mode

Standard Mode / Variable Mode / Direct Mode

Focusing System

Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger

Horizontal Viewing Angle

58.1°~2.3°

Minimum Object Distance

 100 mm1200mm

Video Output

Digital : Y/Pb/Pr 4:2:2(HDMI) Y:8bit.C:8bit RGB 4:4:4(HDMI) R:8bit G:8bit B:8bit

Camera Control Interface

VISCA protocol (CMOS 5V Level)

Power Requirements

7.0 V ~ 12.0 V DC

Power Consumption

Approx. 4.5W, MAX 5.5~6.5W

Operating Temperature

‐5 °C ~ +60 °C

Storage Temperature

‐20 °C ~ +60 °C

Dimensions (W x H x D)

56.0 x 64.0 x 125 mm

Mass

Approx. 439 g

Downloads

Sony FCB-EW9500H Technical Manual

Sony FCB 9500 Series Brochure
