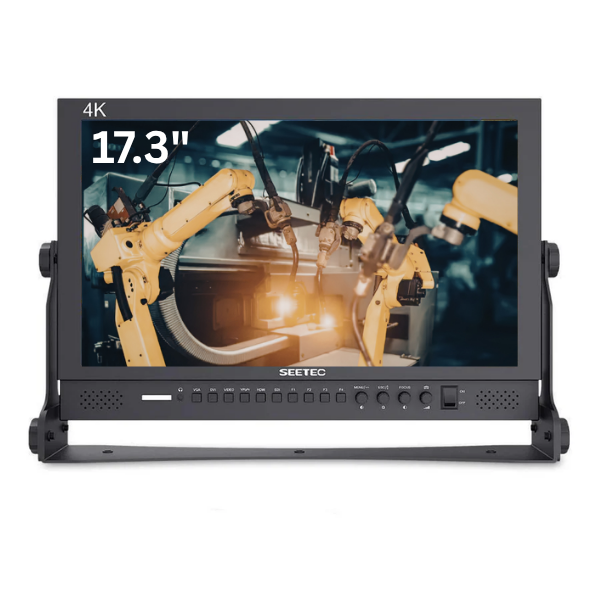

This 17.3-inch industrial inspection monitor is designed to work with the full range of camera outputs commonly found with InterTest's visual solutions you're already using: SDI, HDMI, composite, YPbPr, and DVI-I. This makes it a practical single-display solution for multi-camera surveillance, entertainment broadcast, or inspection setups, welding monitoring stations, and field-deployed visual inspection systems.
The 1920×1080 IPS panel delivers accurate color and consistent brightness at viewing angles up to 178°, so multiple technicians or supervisors can review inspection footage simultaneously without image degradation. Calibrated to the Rec. 709 standard, it renders fine detail reliably, which is critical when evaluating weld quality, casting surfaces, turbine blades, or internal component conditions where image accuracy directly affects inspection decisions.
Signal compatibility covers the outputs of industrial block cameras, welding cameras, and borescope systems without requiring format conversion. Sony FCB and machine vision cameras, KT&C block cameras, iShot camera heads, Cavitar and Weld-i welding cameras — all connect directly via the monitor's native input set. SDI loop-through keeps signal chain integrity intact when routing to a recorder or secondary display.
Power included*: The Industrial Inspection Monitor ships with a 3A DC power adapter, so it is ready to connect and run out of the box. For applications requiring portable or battery-powered deployment, the integrated V-mount battery plate accommodates standard V-mount batteries, with an optional Anton Bauer adapter available separately. Three standard U-bracket mounting points allow integration with third-party rigging, camera support, or rack systems.
*Battery NOT included
Specifications
| Display | |
|---|---|
| Screen Size | 17.3" IPS |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 300 cd/m² |
| Contrast Ratio | 700:1 |
| Viewing Angle | 178°/178° (H/V) |
| Backlight | LED |
| Inputs / Outputs | |

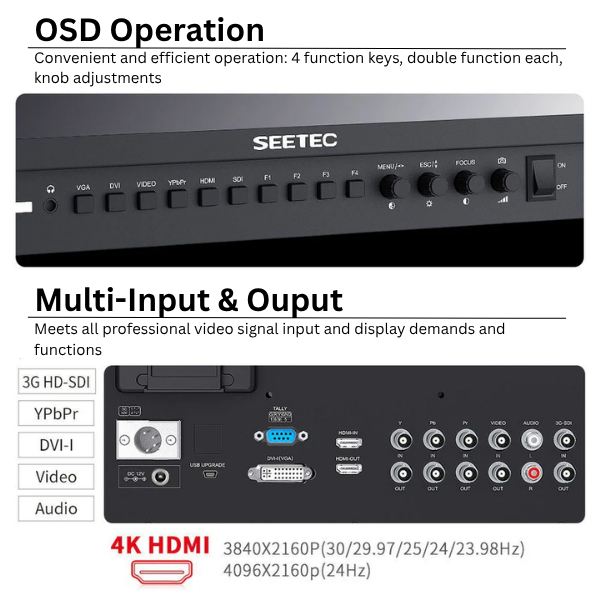

| Inputs | 3G-SDI, HDMI, YPbPr, Composite Video, Audio (L/R), DVI-I, Tally |
| Outputs | 3G-SDI, HDMI, YPbPr, Composite Video |
| Audio | 3.5mm stereo headphone jack, built-in speaker |
| SDI Formats | 480i/576i; 720p (23.98–60); 1080i (50/59.94/60); 1080p (23.98–60) |
| HDMI Formats | 480i–1080p; 4K UHD 3840×2160p (24/25/29.97/30Hz); 4096×2160p (24Hz) |
| General | |
| Input Voltage | DC 9–24V |
| Power Consumption | ≤26W |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions (w/o bracket) | 426 × 297 × 35.1 mm |
| Weight (w/o bracket) | 2.75 kg |
| Weight (w/ bracket) | 3.30 kg |
| In the Box | |
| Included | Mini HDMI cable, sunshade, 3A DC power adapter, V-mount battery plate, tally kit, U-bracket, operation manual |
